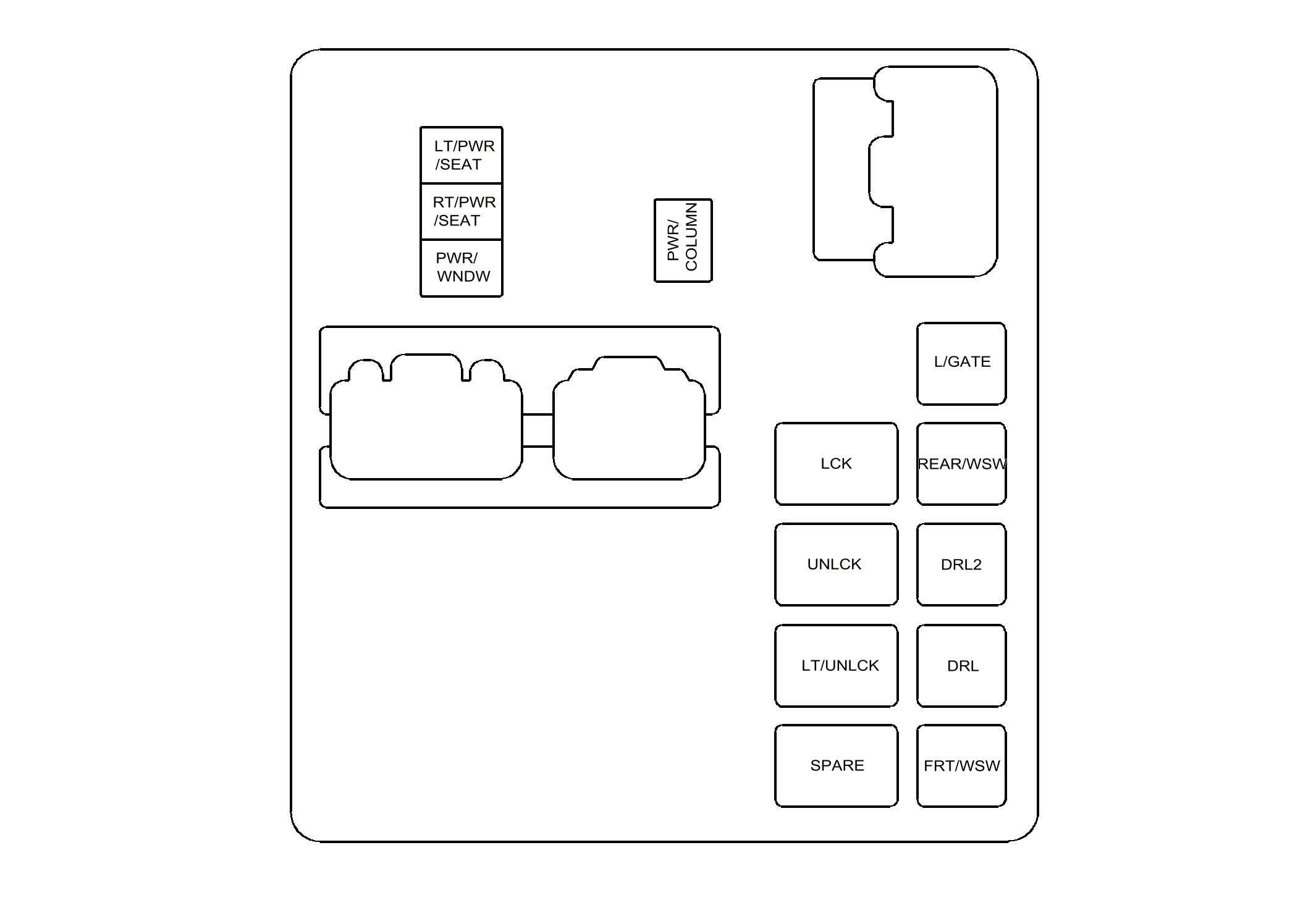

Fuse Block - I/P Top Device Layout
FUSE BLOCK - I/P TOP FUSE AND RELAY IDENTIFICATION LEGEND
| Fuse And Relay Description | Rating | Circuits |
|---|---|---|
| Daytime Running Lamp Relay | - | Daytime Running Lamp (DRL) - Left, Daytime Running Lamp (DRL) - Right (T61) |
| Daytime Running Lamp Relay - Left | - | Daytime Running Lamp (DRL) - Left (Z88 with TVD) |
| Windshield Washer Pump Relay | - | FRT/WSW Fuse |
| Door Lock Relay | - | Door Latch - Driver (without AXE), Door Latch - Left Rear, Door Latch - Passenger (without AXE), and Door Latch - Right Rear |
| LT/PWR/SEAT Circuit Breaker | 25A | Memory Seat Module (AG3), Seat Adjuster Switch - Driver (AG1 or AH5), Seat Lumbar Switch - Driver (AH5) |
| Liftgate Release Relay | - | Liftgate Latch Assembly (TB4) |
| Driver Door Unlatch Relay | - | Door Latch - Driver (without AXE) |
| PWR/COLUMN Circuit Breaker | 25A | Memory Seat Module (N38) |
| PWR/WNDW Circuit Breaker | 25A | Door Control Module - Passenger (AXE), Window Motor - Driver (AXE), Window Motor - Passenger (AXE), Window Switch - Driver (without AXE), Window Switch - Left Rear, Window Switch - Passenger (without AXE), Window Switch - Right Rear |
| Rear Window Washer Pump Relay | Relay | Rear Window Washer Fluid Pump |
| RT/PWR/SEAT Circuit Breaker | 25A | Seat Adjuster Switch - Passenger (AAQ or AG2), Seat Lumbar Switch - Passenger (AAQ) |
| Door Unlock Relay | - | Door Latch - Left Rear, Door Latch - Passenger (without AXE), and Door Latch - Right Rear |
