Fuse Block - I/P X4

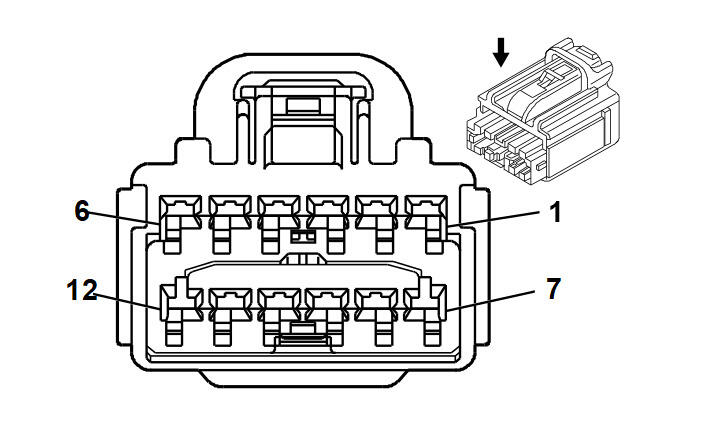

Fig 1: Fuse Block - I/P X4 Connector End View
GM1856789Courtesy of GENERAL MOTORS COMPANY
Fuse Block - I/P X4

Pin Wire Circuit Function
1 0.35 RD/WH 1040 Battery Positive Voltage
2 - - Not Used
3 0.5 RD/WH 2140 Battery Positive Voltage (N38)
4 - - Not Used
5 0.35 PU/WH 1382 LED Dimming Signal
6 - - Not Used
7 0.35 RD/WH 1040 Battery Positive Voltage
8 - - Not Used
9 0.35 PU/WH 7005 LED Dimming Signal
10 - - Not Used
11 1 RD/WH 4240 Battery Positive Voltage
12 - - Not Used
Connector Part Information
  • Harness Type: Instrument Panel
  • OEM Connector: 7283-3442-40
  • Service Connector: 89046712
  • Description: 12-Way F YESC Kaizen Series (L-GY)
Terminal Part Information
  • Pins: 1, 3, 5, 7, 9
  • Terminated Lead: 13575850
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 7116-4100-08/9
  • Core/Insulation Crimp: E/C
  • Pins: 11
  • Terminated Lead: 13575850
  • Release Tool: J-38125-11A
  • Diagnostic Test Probe: J-35616-2A (GY)
  • Terminal/Tray: 7116-4101-08/9
  • Core/Insulation Crimp: E/A
