Air Bag Control Module: Locations

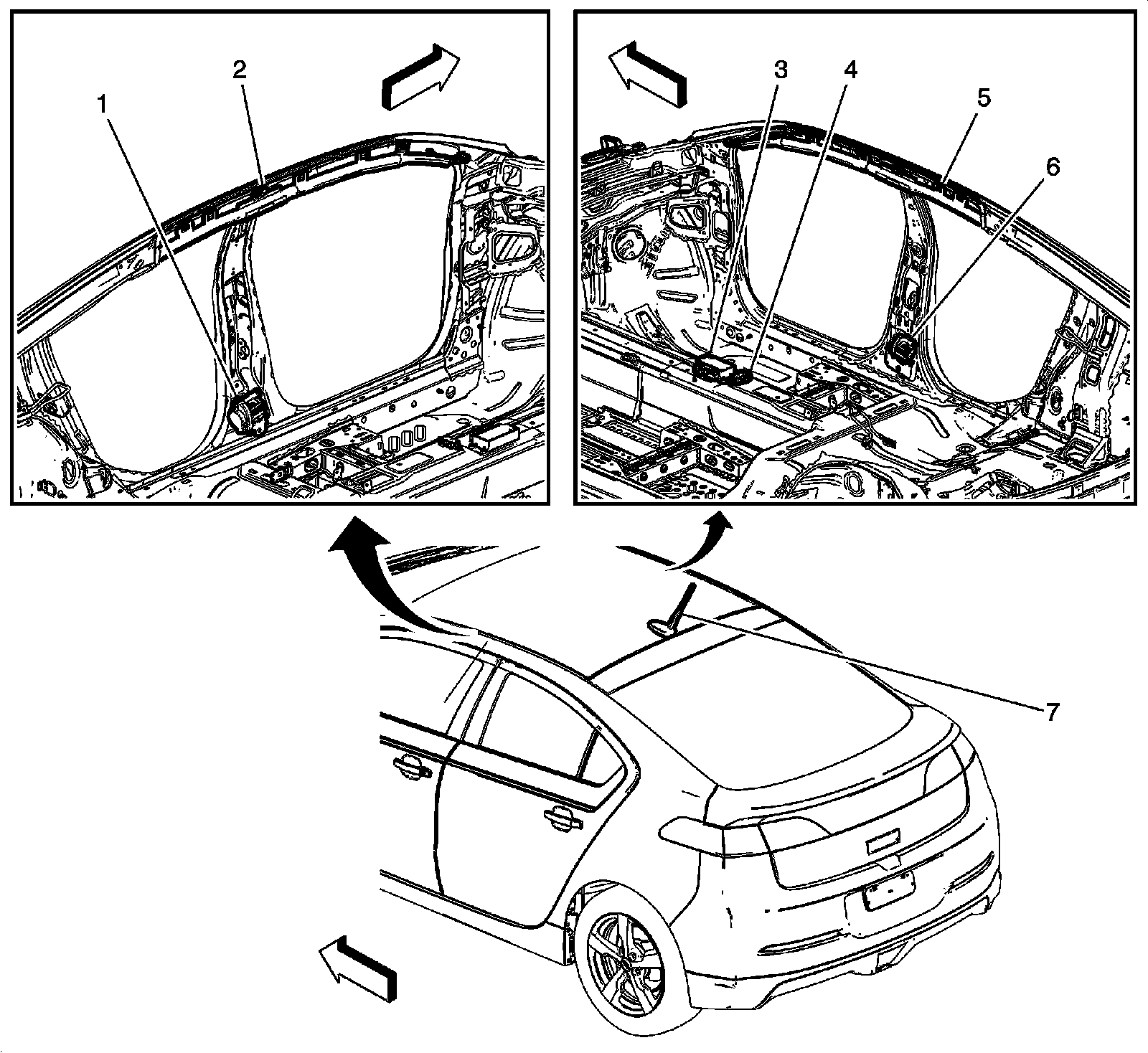

Passenger Compartment/Roof Component Views

Passenger Compartment Components




1 - F112D Seat Belt Retractor Pretensioner - Driver
2 - F105L Roof Rail Air Bag - Left
3 - K36 Inflatable Restraint Sensing and Diagnostic Module
4 - B119 Multi-axis Acceleration Sensor
5 - F105R Roof Rail Air Bag - Right
6 - F112P Seat Belt Retractor Pretensioner - Passenger
7 - T4G Cellular Phone, Navigation, and Digital Radio Antenna
