Installation Procedure

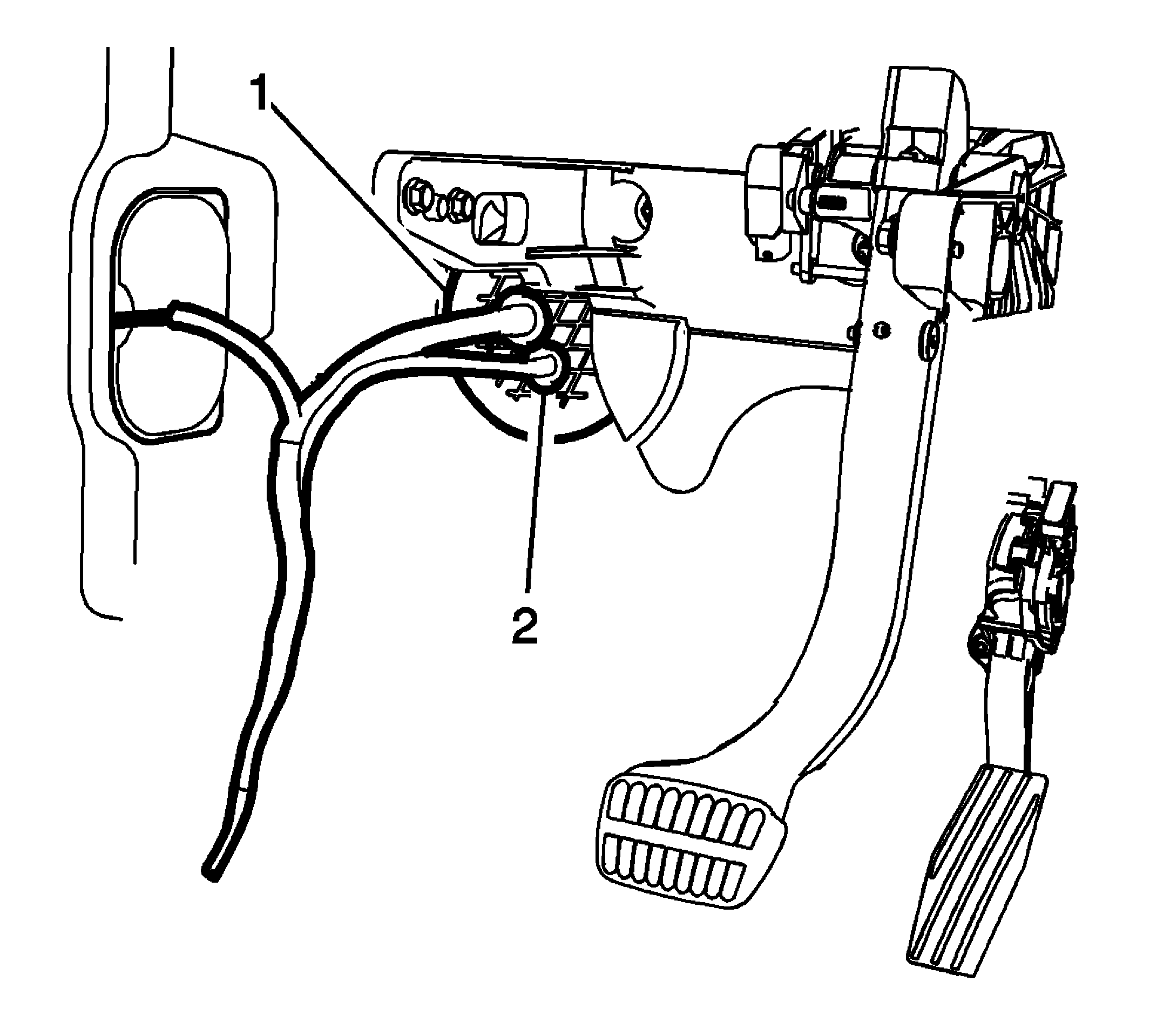

Fig 1: Wiring Harness Grommet

Courtesy of GENERAL MOTORS COMPANY

Push the battery positive cable terminal (2) through the grommet (1) and into the front engine compartment.

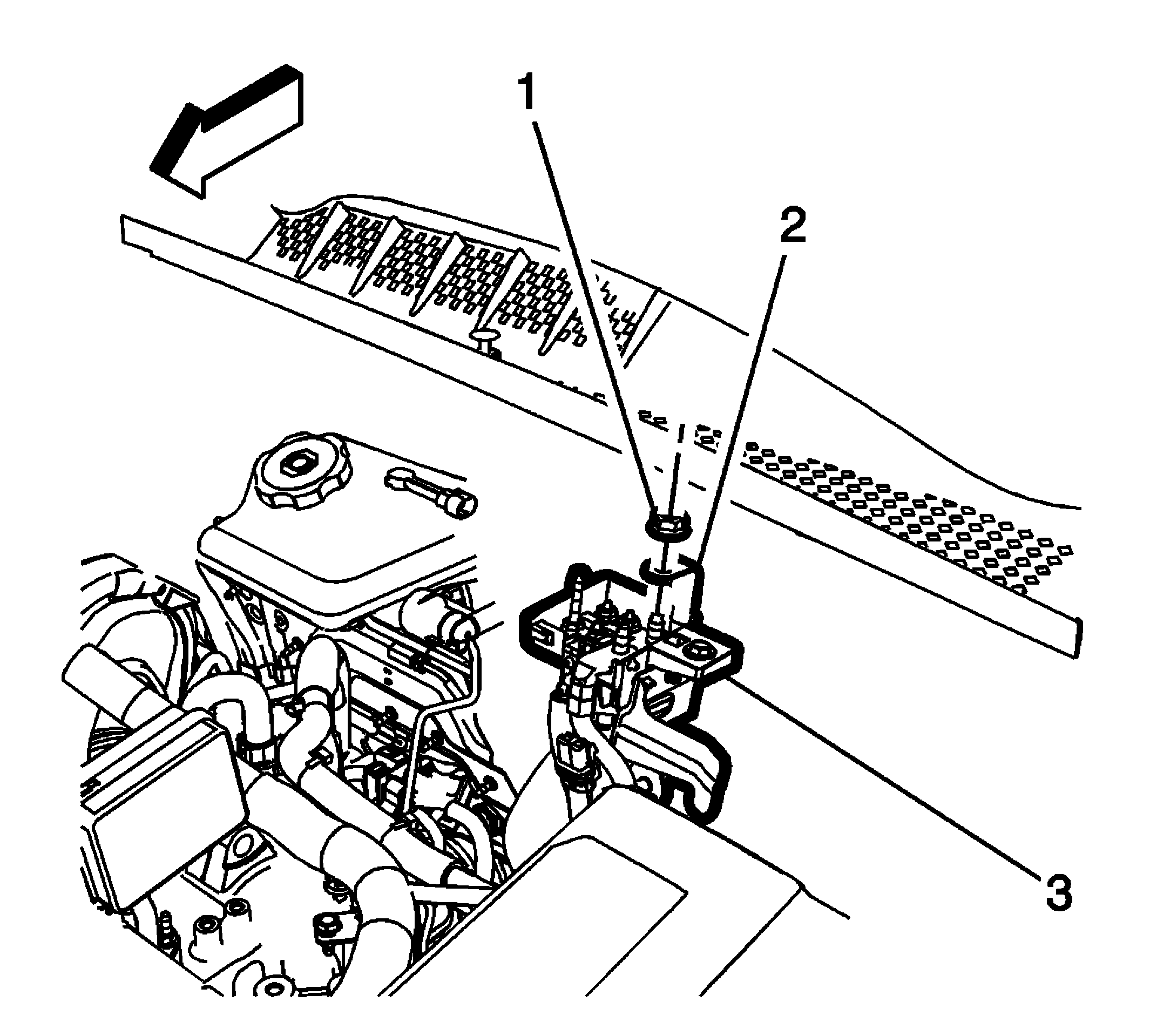

Fig 2: Battery Positive Terminal, Engine Wiring Junction Block And Nut

Courtesy of GENERAL MOTORS COMPANY

CAUTION:

Install the battery positive cable terminal (2) to the engine wiring junction block (3). Tighten the nut (1) to 17 N.m (12 lb ft).

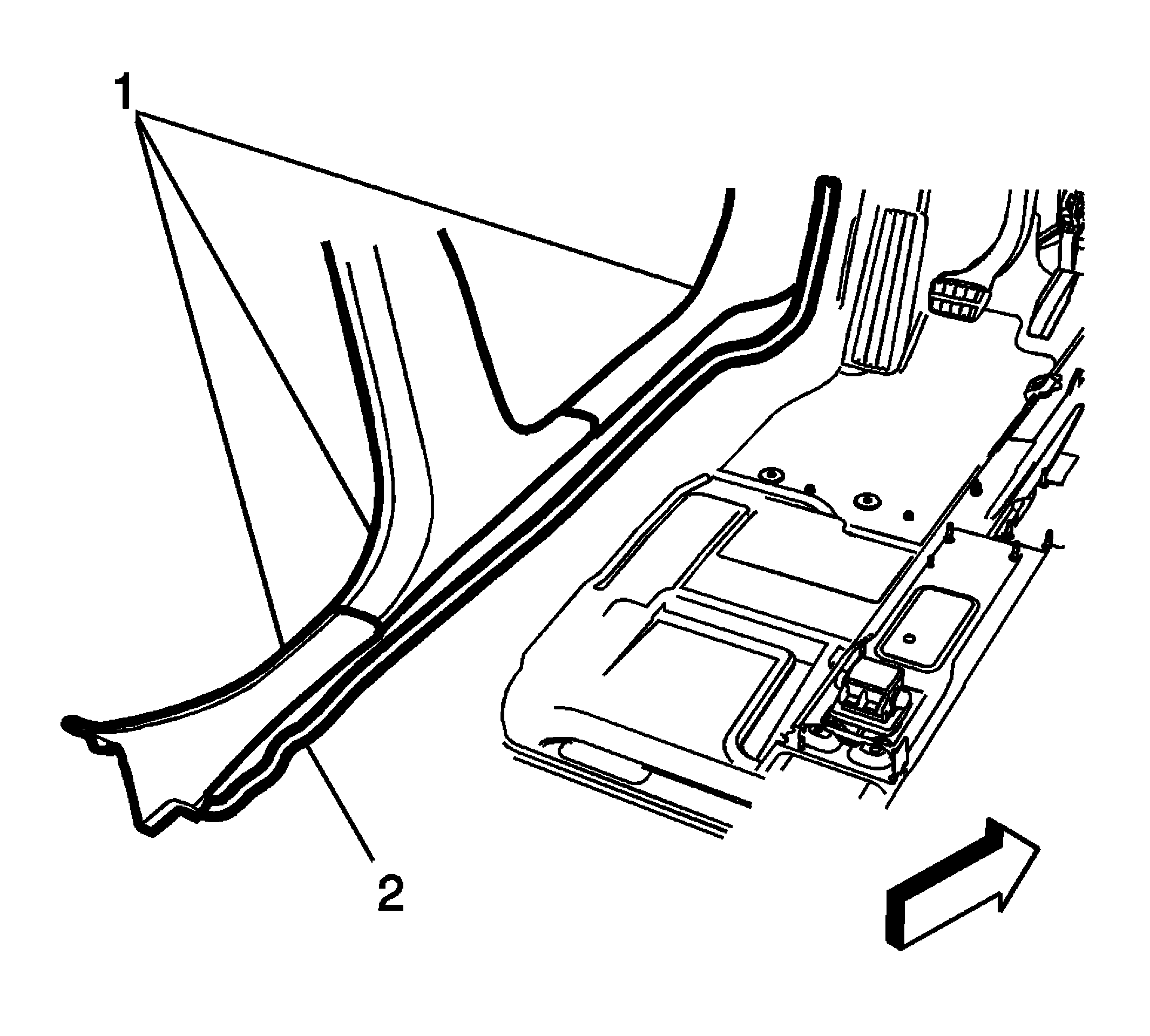

Fig 3: Battery Positive Cable And Left Rocker Channel

Courtesy of GENERAL MOTORS COMPANY

Install the battery positive cable into the rocker channel below the interior trim panels (1).

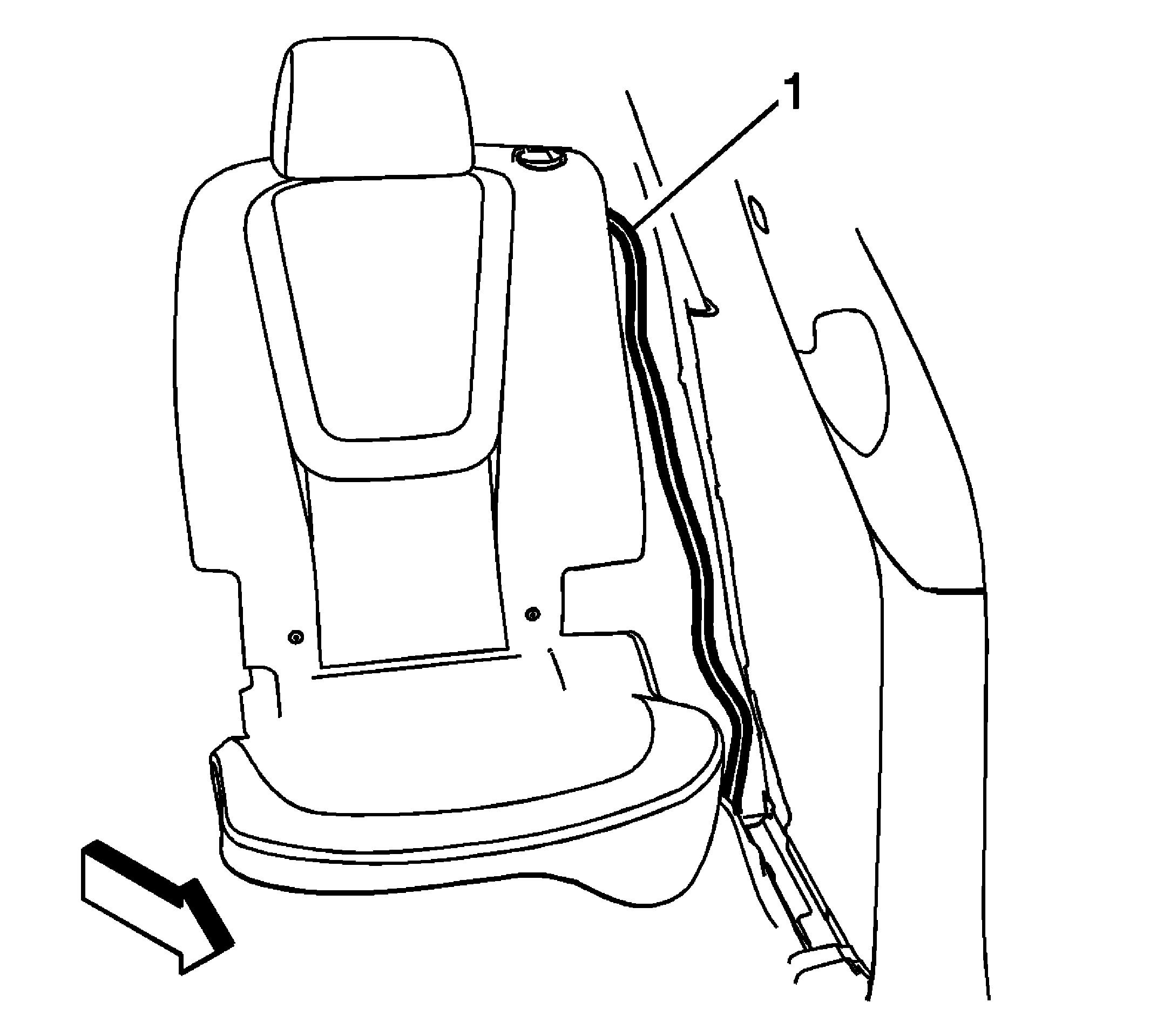

Fig 4: Battery Positive Cable

Courtesy of GENERAL MOTORS COMPANY

Secure the battery positive cable (1) to the body harness, while transferring the remaining cable into the rear compartment.

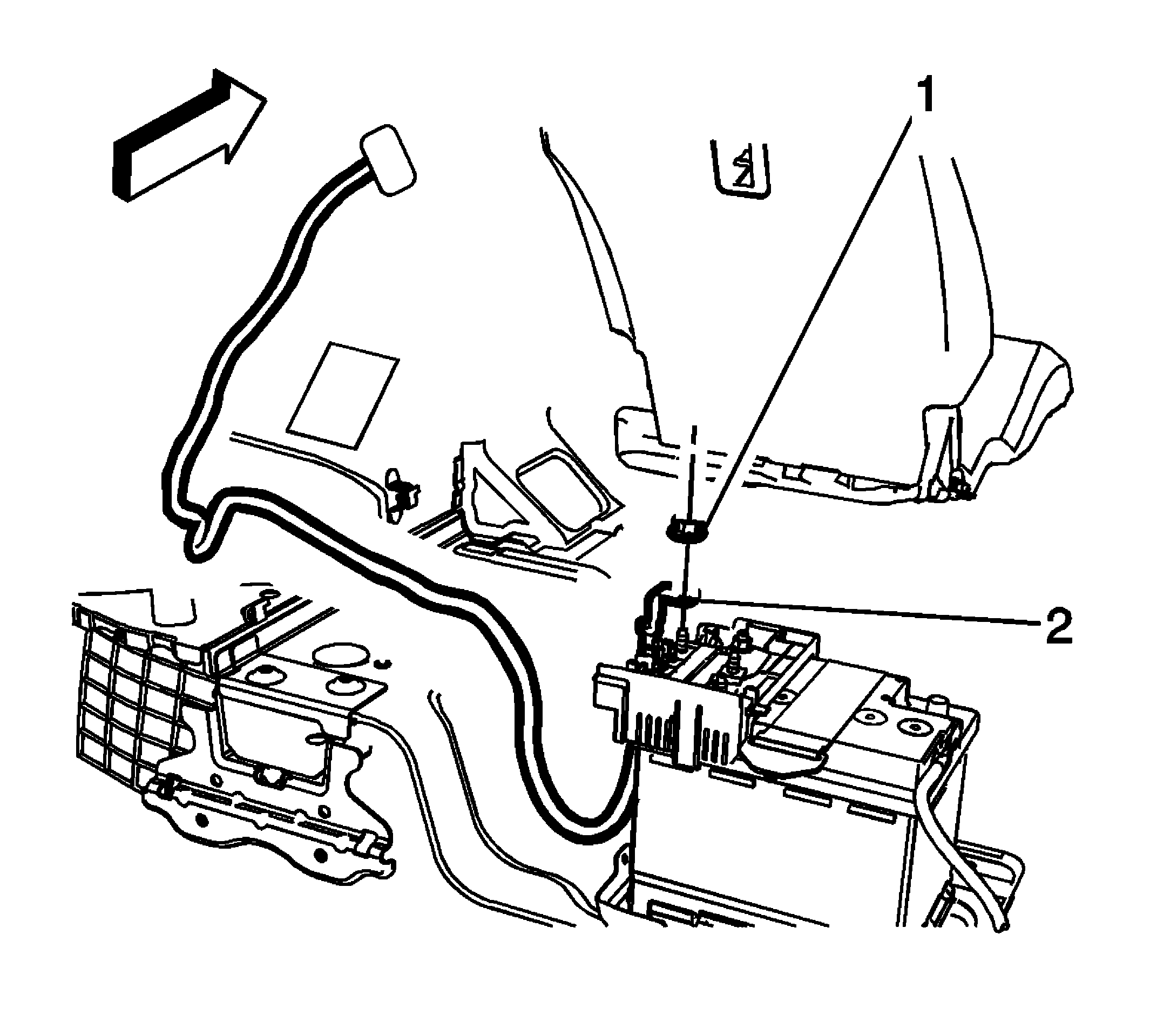

Fig 5: Battery Positive Cable Fuse Block Nut And Terminal

Courtesy of GENERAL MOTORS COMPANY

Attach the battery positive cable to the body harness along the left rear wheelhouse.
Install the battery positive cable terminal (2) to the battery fuse block and tighten nut (1) to 12 N.m (106 lb in).
Connect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
Install the quarter inner trim finish panel, rear compartment floor stowage trim panel and the interior trim panels. Refer to Quarter Inner Trim Finish Panel Replacement , ; Rear Compartment Floor Stowage Trim Compartment Replacement , ; Rear Side Door Opening Floor Carpet Retainer Replacement , and Front Side Door Opening Floor Carpet Retainer Replacement .
