Installation Procedure

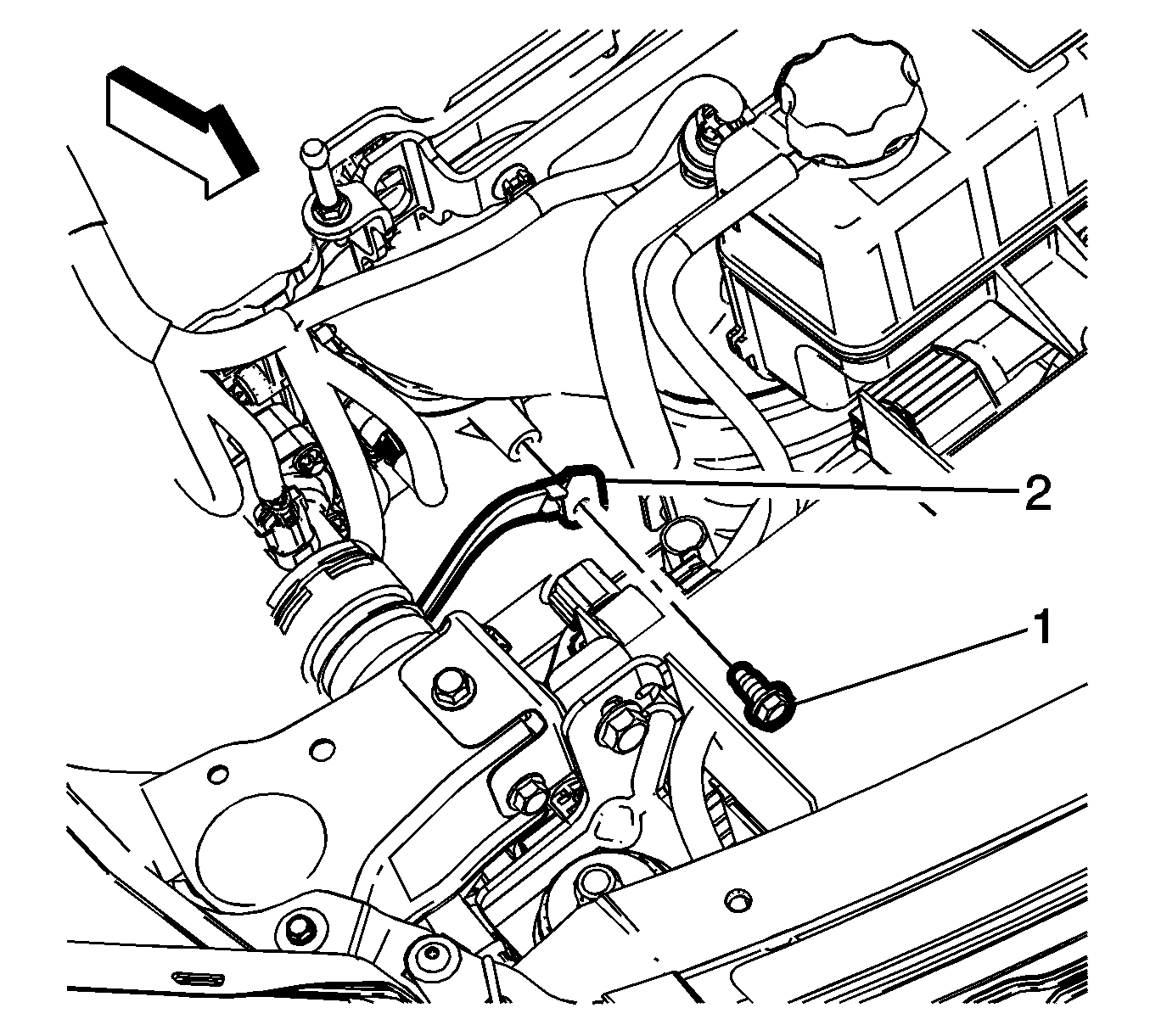

    Fig 1: Engine Ground Strap Bolt And Terminal At Engine Block
    GM2417319Courtesy of GENERAL MOTORS COMPANY
    CAUTION:

    Refer to Fastener Caution .

  1. Install the engine ground strap terminal (2) to the engine block and tighten bolt (1) to 22 N.m (16 lb ft).

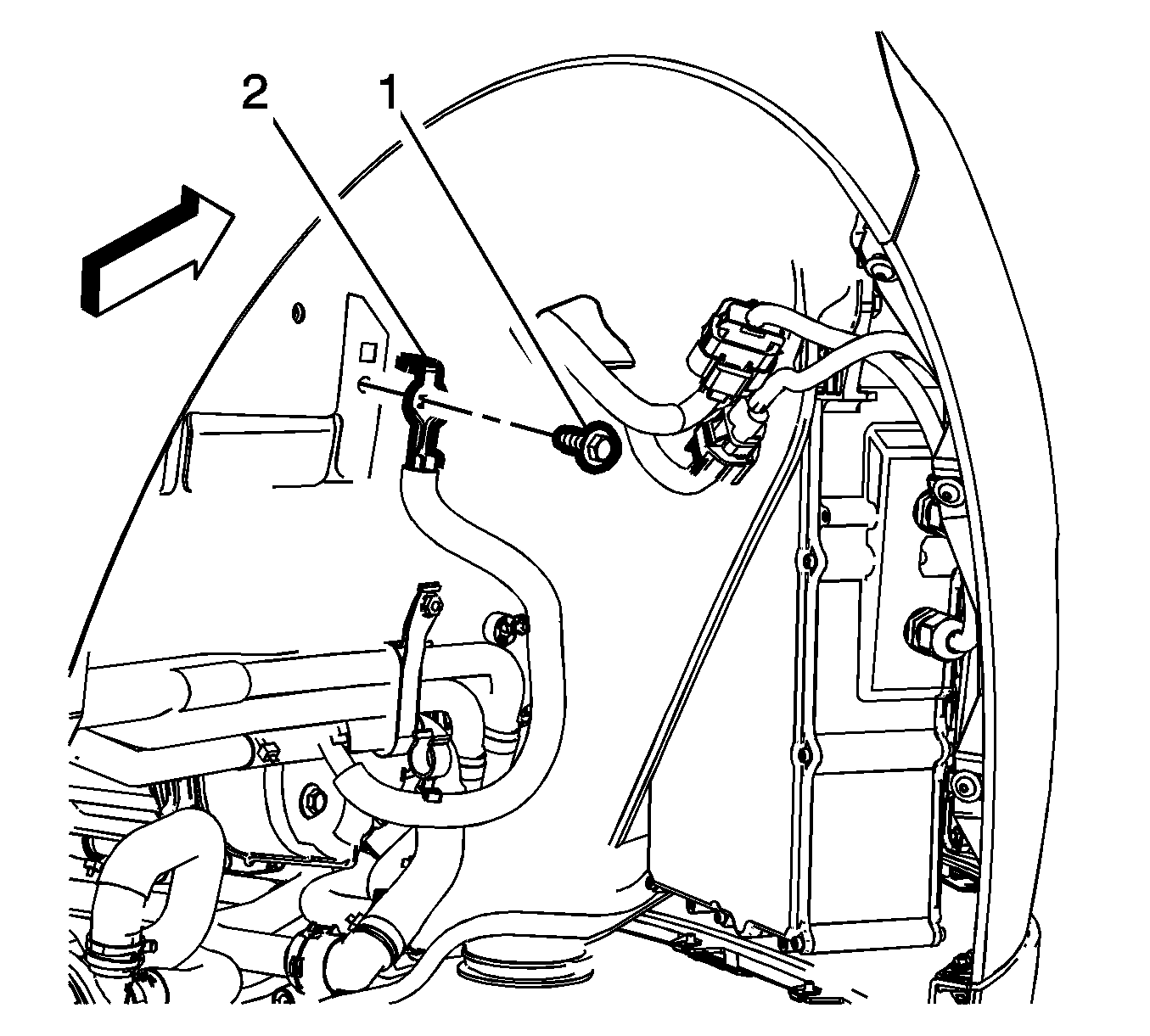

    2. Fig 2: Engine Ground Strap Bolt And Terminal
    GM2417316Courtesy of GENERAL MOTORS COMPANY
  2. Install the engine ground strap terminal (2) to the wheelhouse panel and tighten bolt (1) to 22 N.m (16 lb ft).
  3. Install the front wheelhouse liner. Refer to Front Wheelhouse Front Liner Replacement .
