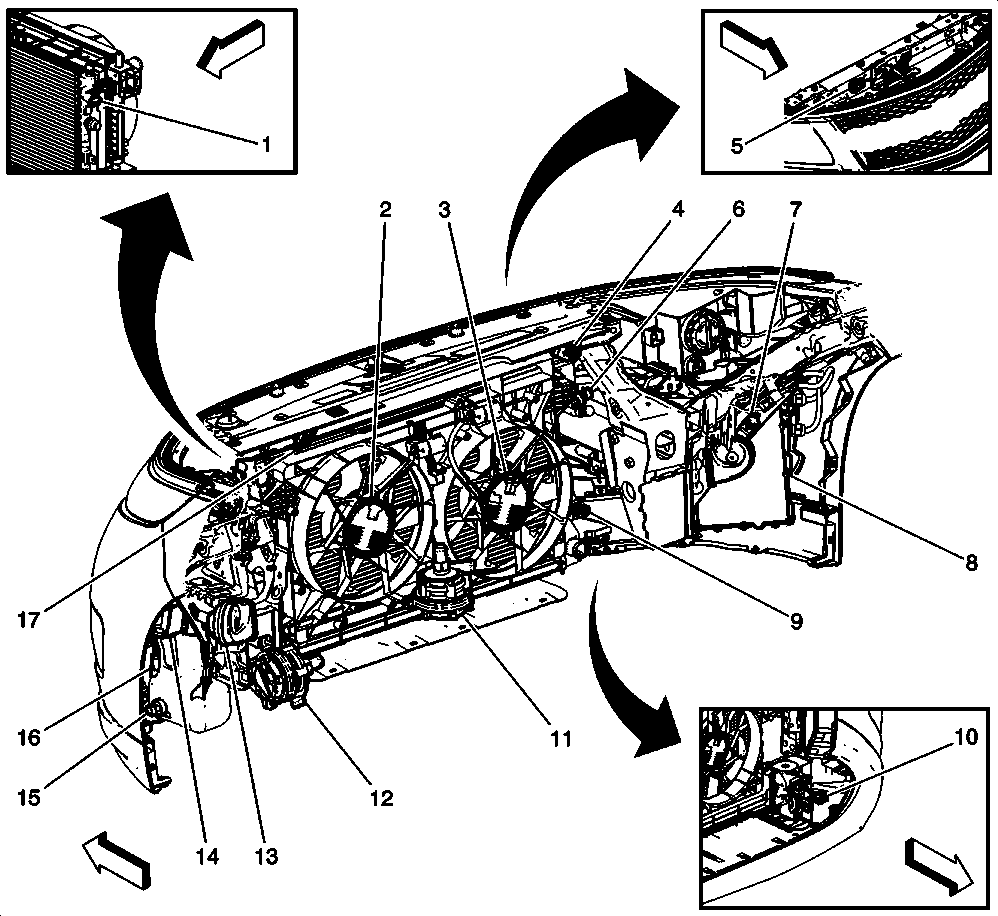

Engine Compartment Components- Front
Engine Compartment Components- Front
| Component Name | Callout |
|---|---|
| B202 Hybrid Electronics Coolant Temperature Sensor | 1 |
| G10L Cooling Fan Motor - Left | 2 |
| G10R Cooling Fan Motor - Right | 3 |
| B59R Front Impact Sensor - Right | 4 |
| B55 Hood Ajar Switch | 5 |
| B1 A/C Refrigerant Pressure Sensor | 6 |
| P12R Horn - Right | 7 |
| T18 Battery Charger | 8 |
| B203 Engine Coolant Radiator Temperature Sensor | 9 |
| B9 Ambient Air Temperature Sensor | 10 |
| G37 Hybrid Battery Pack Coolant Pump | 11 |
| G35 Hybrid Electronics Coolant Pump | 12 |
| P12L Horn - Left | 13 |
| K20 Engine Control Module | 14 |
| B118 Windshield Washer Fluid Level Sensor | 15 |
| G24 Windshield Washer Pump | 16 |
| B59L Front Impact Sensor - Left | 17 |
