Engine Compartment Components- Left

Engine Compartment Components- Left

Component Name Callout
M75 Windshield Wiper Motor 1
Q66 Passenger Compartment Heater Coolant Control Valve 2
B20 Brake Fluid Level Switch 3
X50B Fuse Block - Underhood Auxiliary 4
X50A Fuse Block - Underhood 5
F103 Power Inverter Module Assembly Cable Cover 6
T6 Power Inverter Module 7
K17 Electronic Brake Control Module 8

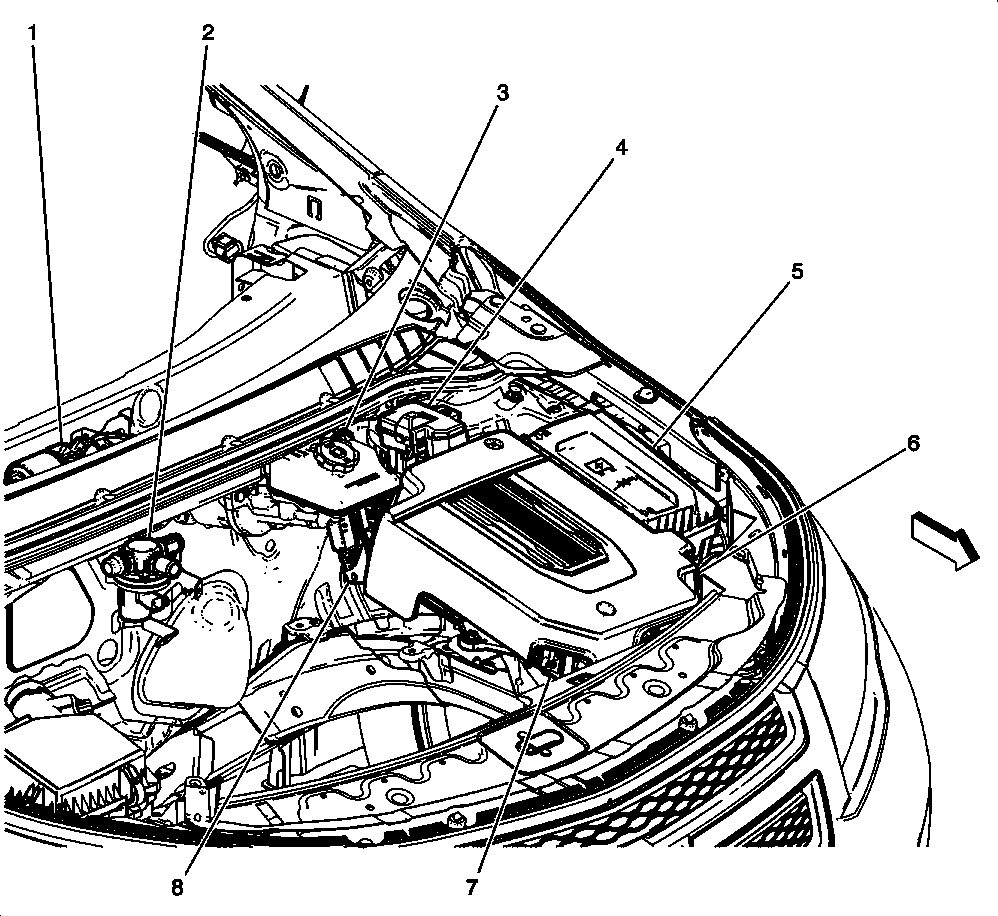

Fig 1: Locating Engine Compartment Components - Left
GM2477055Courtesy of GENERAL MOTORS COMPANY
