Engine Compartment Components- Right

Engine Compartment Components- Right

Component Name Callout
B75B Mass Air Flow/Intake Air Temperature Sensor 1
Q65 Hybrid Battery Pack Coolant Control Valve 2
B135 Coolant Heater Temperature Sensor 3
K10 Coolant Heater Control Module 4
G36 Auxiliary Heater Coolant Pump 5

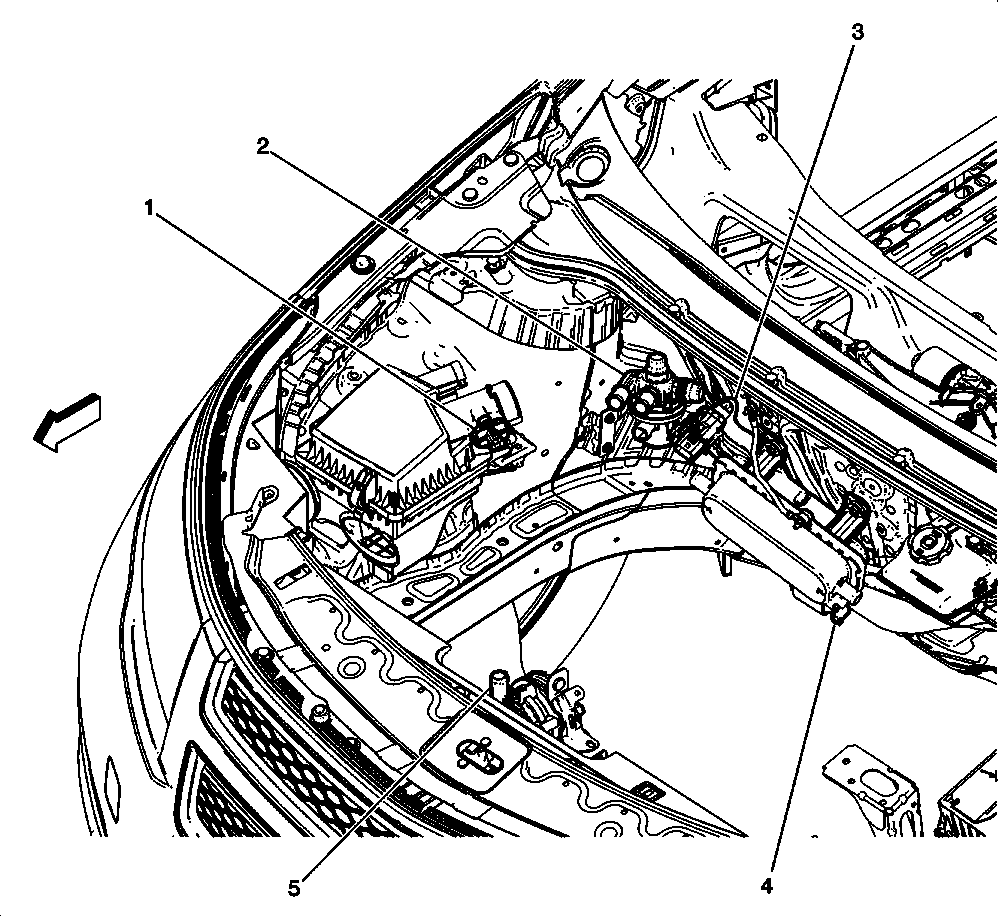

Fig 1: Locating Engine Compartment Components - Right
GM2477049Courtesy of GENERAL MOTORS COMPANY
