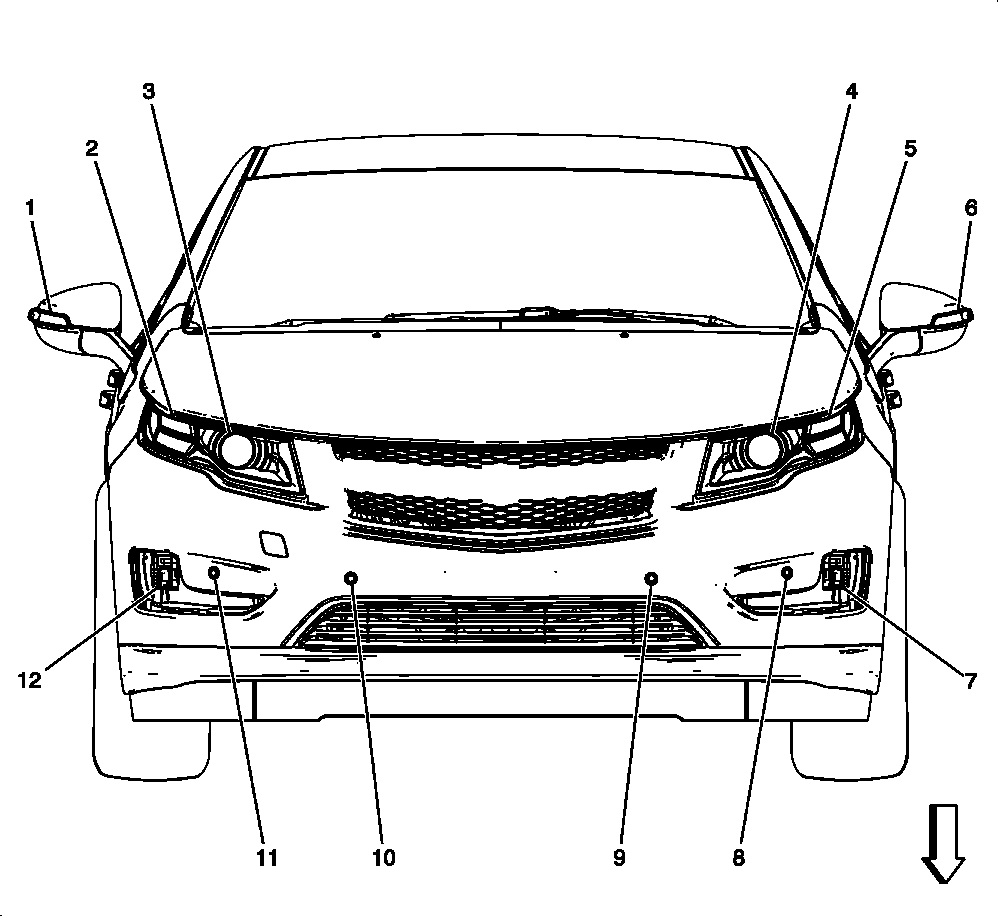

Front of Vehicle Components
Front of Vehicle Components
| Component Name | Callout |
|---|---|
| E4Z Turn Signal Repeater Lamp - Right | 1 |
| E4D Daytime Running Lamp - Right | 2 |
| E13R Headlamp - Right | 3 |
| E13L Headlamp - Left | 4 |
| E4C Daytime Running Lamp - Left | 5 |
| E4Y Turn Signal Repeater Lamp - Left | 6 |
| E4N Park/Turn Signal Lamp - Left | 7 |
| B78A Front Object Sensor - Left Outer | 8 |
| B78C Front Object Sensor - Left Middle | 9 |
| B78D Front Object Sensor - Right Middle | 10 |
| B78B Front Object Sensor - Right Outer | 11 |
| E4P Park/Turn Signal Lamp - Right | 12 |
