Radiator Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Volt. However, it is still accessible from the selected car via links, so may be relevant.

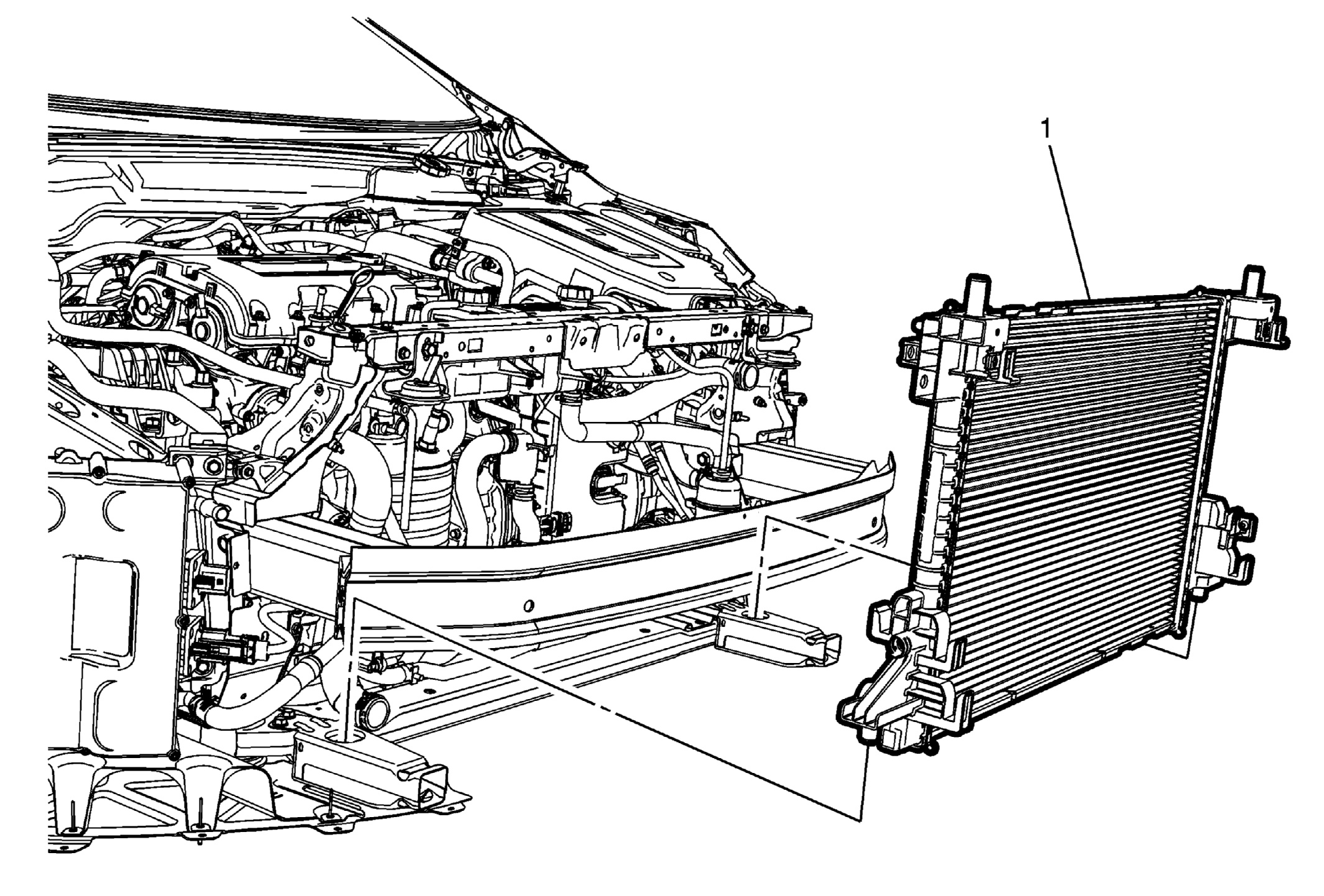

Fig 1: Radiator

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure Drain the coolant. Refer to Cooling System Draining and Filling Remove cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement Remove radiator upper brackets. Refer to Radiator Upper Bracket Replacement Remove transmission fluid auxiliary cooler. Refer to Transmission Fluid Auxiliary Cooler Replacement Remove the cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement Remove the radiator air seal. Refer to Radiator Air Seal Replacement Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement Remove radiator outlet front hose. Refer to Radiator Outlet Front Hose Replacement Disconnect the electrical connector from the engine coolant temperature sensor.
1	Radiator

Callout

Component Name

Preliminary Procedure

Drain the coolant. Refer to Cooling System Draining and Filling
Remove cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement
Remove radiator upper brackets. Refer to Radiator Upper Bracket Replacement
Remove transmission fluid auxiliary cooler. Refer to Transmission Fluid Auxiliary Cooler Replacement
Remove the cooling fan and shroud. Refer to Cooling Fan and Shroud Replacement
Remove the radiator air seal. Refer to Radiator Air Seal Replacement
Remove the radiator inlet hose. Refer to Radiator Inlet Hose Replacement
Remove radiator outlet front hose. Refer to Radiator Outlet Front Hose Replacement
Disconnect the electrical connector from the engine coolant temperature sensor.

Radiator
