Left Front of Vehicle Components
Left Front of Vehicle Components
Component Name
Callout
B197 Charge Port Door Position Switch
1
X98 Hybrid Battery Charger Receptacle
2
M80 Charge Port Door Actuator
3

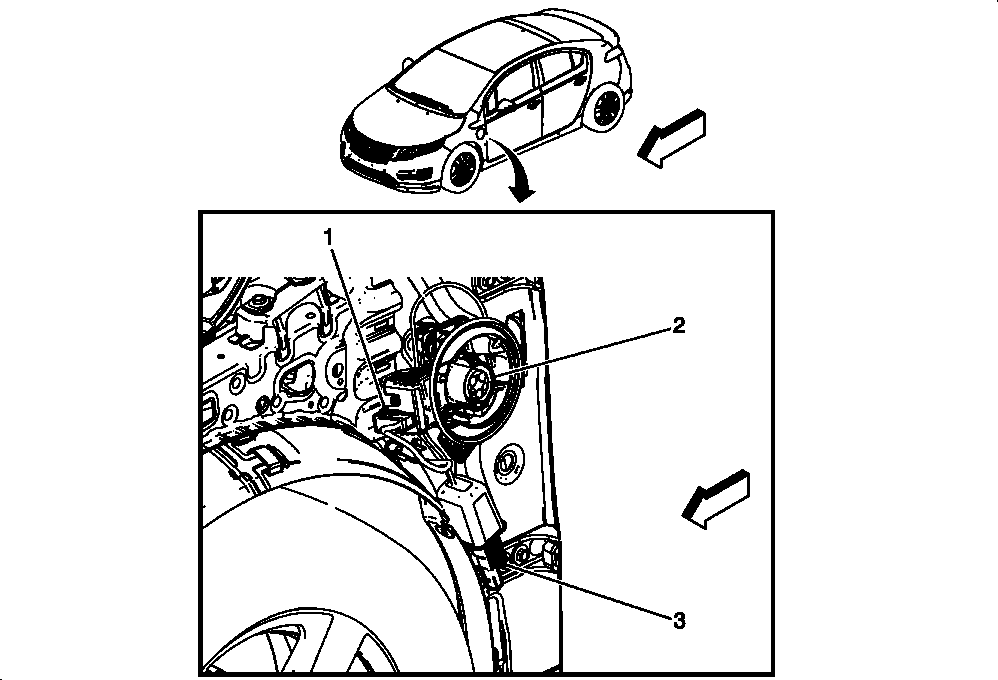

Fig 1: Locating Left Front of Vehicle Components
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
