Windshield Frame Weatherstrip Retainer Replacement

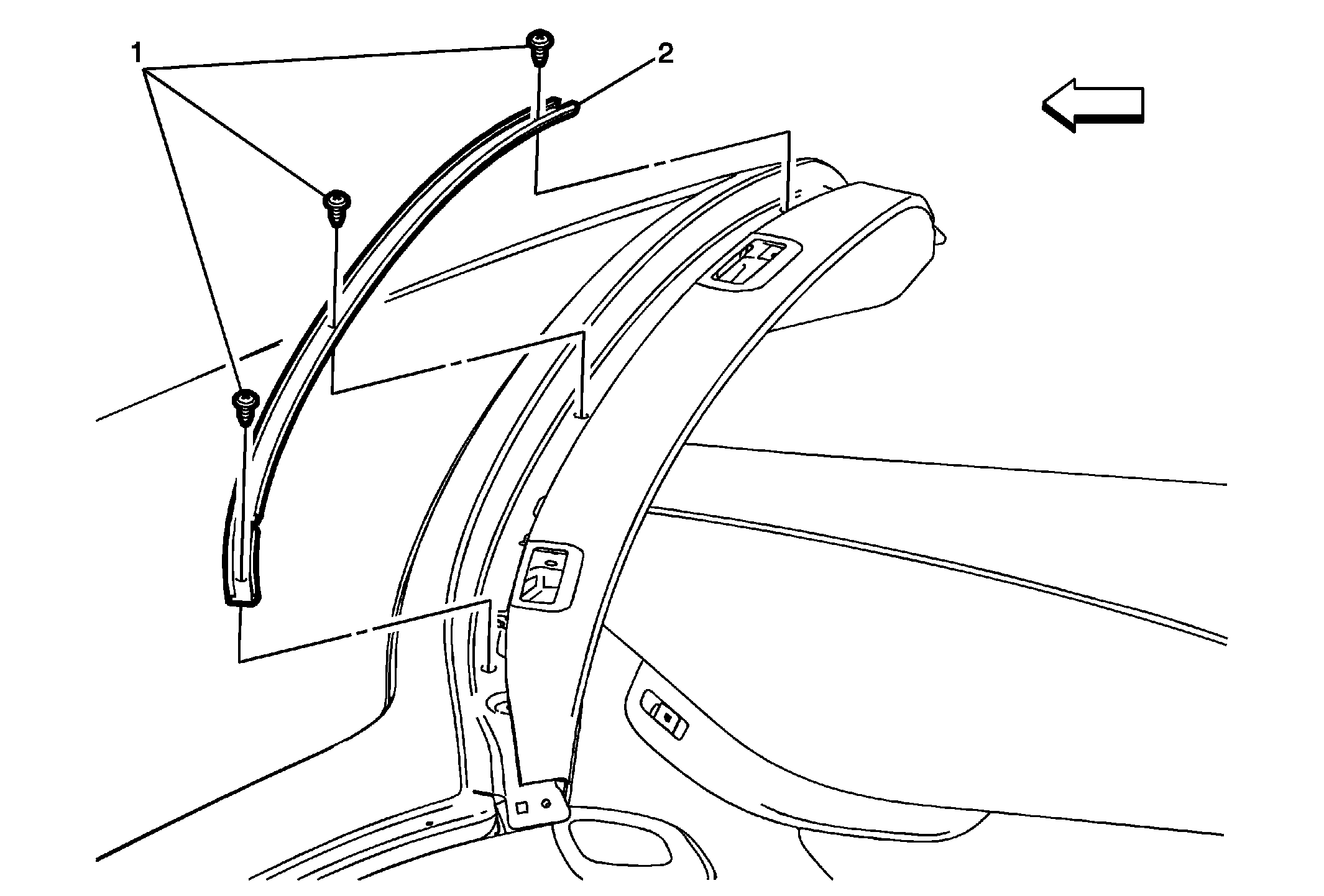

Fig 1: Windshield Frame Weatherstrip Retainer & Screws

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
1	Windshield Frame Weatherstrip Retainer Screw (Qty: 3) Procedure Open the folding top to the full open position. Remove the windshield frame weatherstrip. Refer to Windshield Frame Weatherstrip Replacement . TIP: No trim needs to be removed to replace the weatherstrip retainer. Start at the left pillar and pull the weatherstrip up and out of the retainer across to the right side. When installing use a plastic tool to insert the weatherstrip into the retainer.
2	Windshield Frame Weatherstrip Retainer TIP: Water test the vehicle to ensure no leaks.

Callout

Component Name

Windshield Frame Weatherstrip Retainer Screw (Qty: 3)

Procedure

Open the folding top to the full open position.
Remove the windshield frame weatherstrip. Refer to Windshield Frame Weatherstrip Replacement .

TIP: No trim needs to be removed to replace the weatherstrip retainer. Start at the left pillar and pull the weatherstrip up and out of the retainer across to the right side. When installing use a plastic tool to insert the weatherstrip into the retainer.

Windshield Frame Weatherstrip Retainer
TIP: Water test the vehicle to ensure no leaks.
