Left Rear of Engine Compartment Components

Left Rear of Engine Compartment Components

Items
1:  M75 Windshield Wiper Motor M75 Windshield Wiper Motor
2:  X60B Junction Block - Battery Cable
3:  B19B Brake Booster Vacuum Sensor (L99) B19B Brake Booster Vacuum Sensor (L99)
4:  B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch

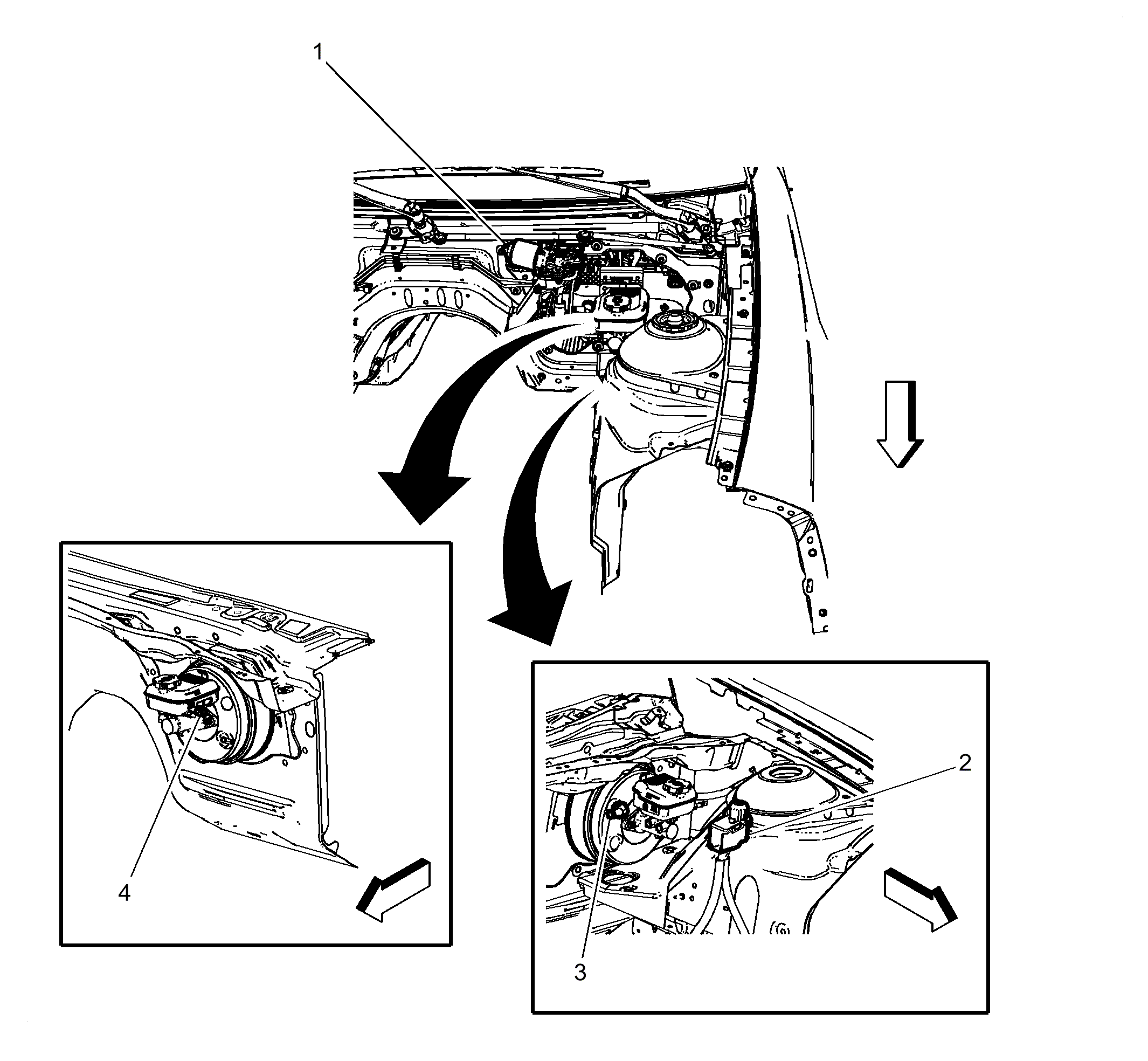

Fig 1: Left Rear of Engine Compartment Components
GM2291055Courtesy of GENERAL MOTORS COMPANY
