Engine Components - Right Side (LSA)

Items
1: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (L99, LS3 or LSA)B26 Crankshaft Position Sensor (LFX)
2: M64 Starter Motor M64 Starter Motor X1 M64 Starter Motor X2
3: T8H Ignition Coil 8 T8H Ignition Coil 8 (L99, LS3 or LSA)
4: T8F Ignition Coil 6 T8F Ignition Coil 6 (L99, LS3 or LSA)T8F Ignition Coil 6 (LFX)
5: T8D Ignition Coil 4 T8D Ignition Coil 4 (L99, LS3 or LSA)T8D Ignition Coil 4 (LFX)
6: T8B Ignition Coil 2 T8B Ignition Coil 2 (L99, LS3 or LSA)T8B Ignition Coil 2 (LFX)
7: Q36 Supercharger Bypass Solenoid Valve (LSA) Q36 Supercharger Bypass Solenoid Valve (LSA)
8: Q2 A/C Compressor Clutch Q2 A/C Compressor Clutch
9: B68B Knock Sensor 2 B68B Knock Sensor 2
10: B35C Engine Oil Level and Temperature Sensor B35C Engine Oil Level and Temperature Sensor (L99, LS3 or LSA)
11: B52E Heated Oxygen Sensor - Bank 2 Sensor 1 B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (L99, LS3 or LSA)B52E Heated Oxygen Sensor - Bank 2 Sensor 1 (LFX)
12: B52F Heated Oxygen Sensor - Bank 2 Sensor 2 B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (L99, LS3 or LSA)B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX with MV5)B52F Heated Oxygen Sensor - Bank 2 Sensor 2 (LFX with MYB)

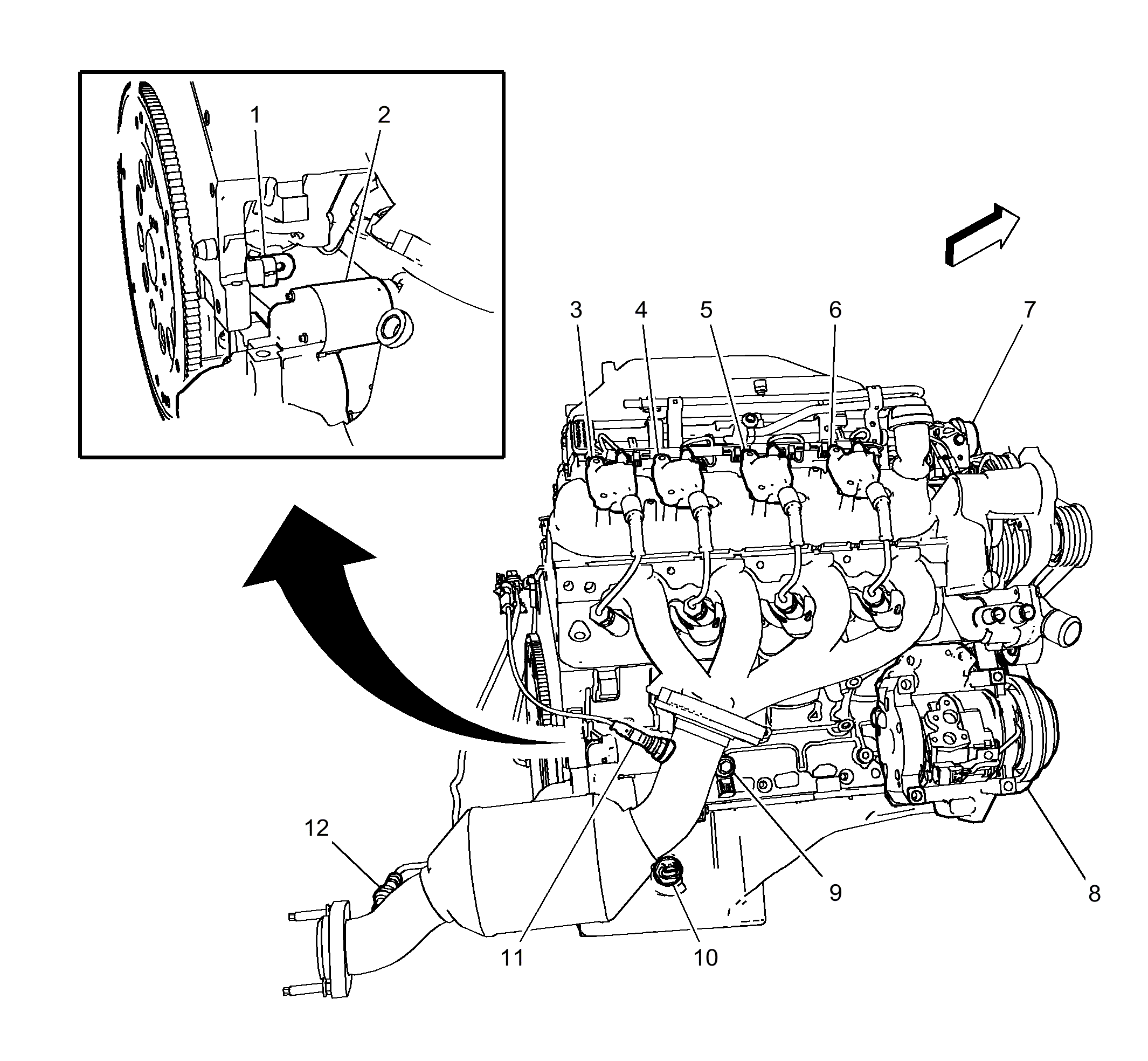

Fig 1: Engine Components -- Right Side (LSA)

Courtesy of GENERAL MOTORS COMPANY
