Right Front of Engine Components (LFX)

Items
1: T8E Ignition Coil 5 T8E Ignition Coil 5 (L99, LS3 or LSA)T8E Ignition Coil 5 (LFX)
2: T8C Ignition Coil 3 T8C Ignition Coil 3 (L99, LS3 or LSA)T8C Ignition Coil 3 (LFX)
3: Q12 Evaporative Emission Purge Solenoid Valve Q12 Evaporative Emission Purge Solenoid Valve (L99, LS3 or LSA)Q12 Evaporative Emission Purge Solenoid Valve (LFX)
4: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LFX, L99, or LS3)
5: T8A Ignition Coil 1 T8A Ignition Coil 1 (L99, LS3 or LSA)T8A Ignition Coil 1 (LFX)
6: B23A Camshaft Position Sensor - Bank 1 Exhaust B23A Camshaft Position Sensor - Bank 1 Exhaust (LFX)
7: B23D Camshaft Position Sensor - Bank 2 Intake B23D Camshaft Position Sensor - Bank 2 Intake (LFX)
8: B23C Camshaft Position Sensor - Bank 2 Exhaust B23C Camshaft Position Sensor - Bank 2 Exhaust (LFX)
9: Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust Q6C Camshaft Position Actuator Solenoid Valve - Bank 2 Exhaust (LFX)
10: Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake Q6D Camshaft Position Actuator Solenoid Valve - Bank 2 Intake (LFX)
11: Q38 Throttle Body Q38 Throttle Body (L99, LS3, and LSA)Q38 Throttle Body (LFX)
12: B75C Multifunction Intake Air Sensor B75C Multifunction Intake Air Sensor (LFX)
13: B23B Camshaft Position Sensor - Bank 1 Intake B23B Camshaft Position Sensor - Bank 1 Intake (LFX)
14: Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake Q6B Camshaft Position Actuator Solenoid Valve - Bank 1 Intake (LFX)
15: Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust Q6A Camshaft Position Actuator Solenoid Valve - Bank 1 Exhaust (LFX)
16: G13 Generator G13 Generator X1 G13 Generator X2
17: B35 Engine Oil Level Switch
18: B68A Knock Sensor 1 B68A Knock Sensor 1
19: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor (L99, LS3 or LSA)B26 Crankshaft Position Sensor (LFX)

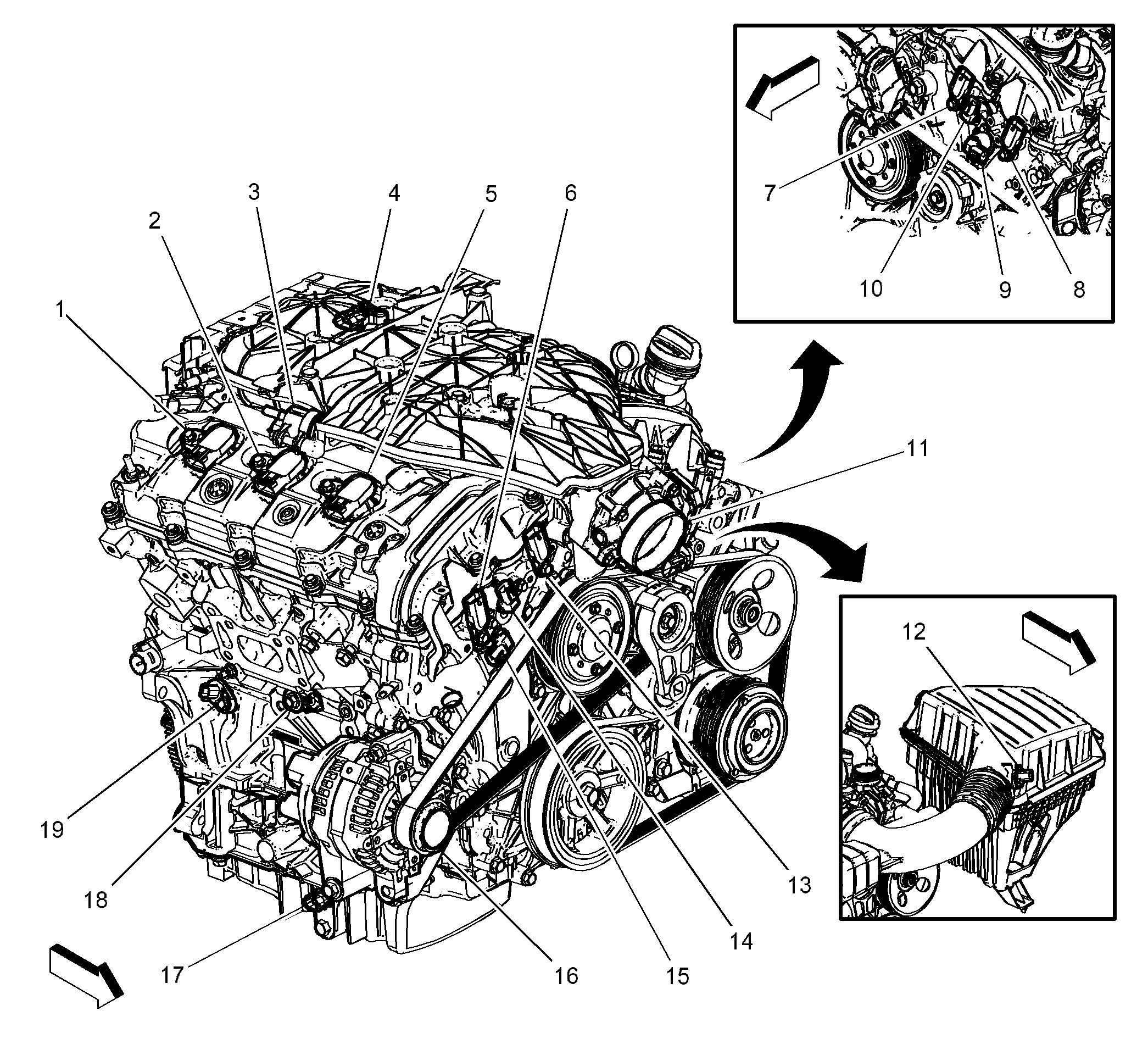

Fig 1: Right Front of Engine Components (LFX)

Courtesy of GENERAL MOTORS COMPANY
