Electronic Suspension Control Module Replacement

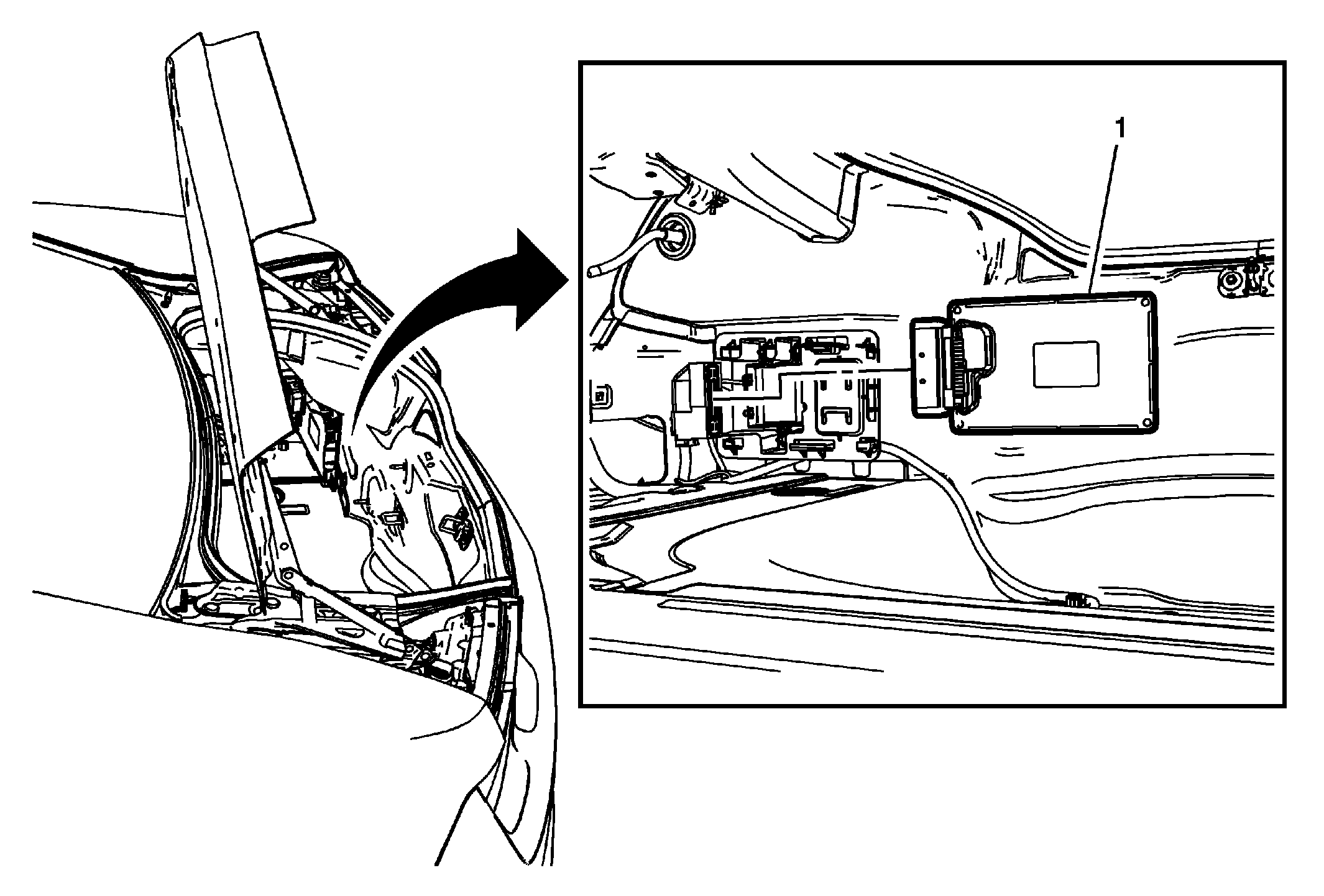

Fig 1: Electronic Suspension Control Module
GM2893306Courtesy of GENERAL MOTORS COMPANY
Electronic Suspension Control Module Replacement

Callout Component Name
Preliminary Procedure
Remove the rear compartment side trim panel. Refer to Rear Compartment Side Trim Panel Replacement (Coupe) , Rear Compartment Side Trim Panel Replacement (Convertible) .
1 Electronic Suspension Control Module

Procedure

  1. Disconnect the electrical connector
  2. Release the lock tab for the control module.
  3. Remove the control module from the mounting bracket.
  4. Reprogram the control module. Refer to Electronic Suspension Control Module Programming and Setup
