Accessory Relay: Locations

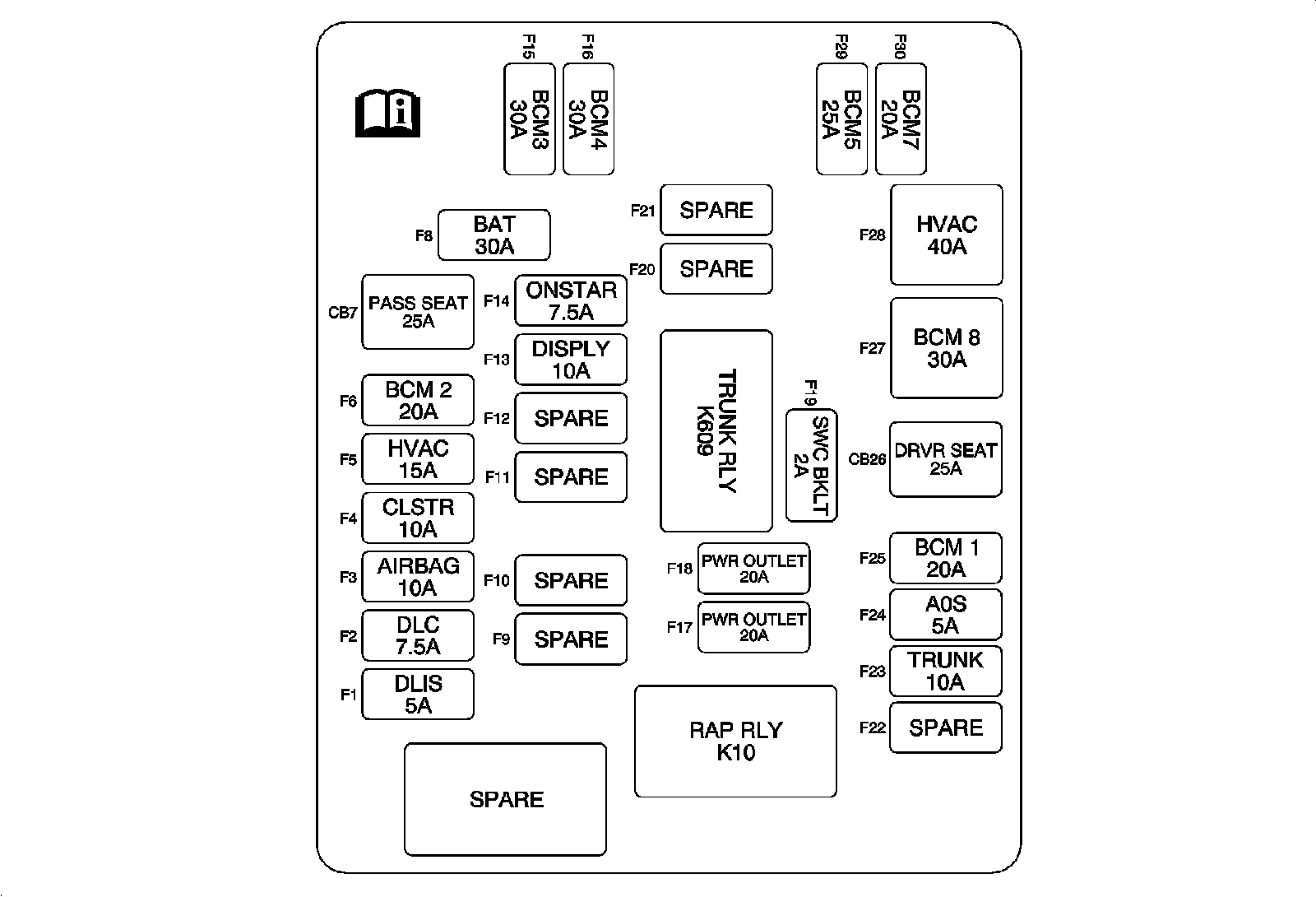

Electrical Center Identification Views

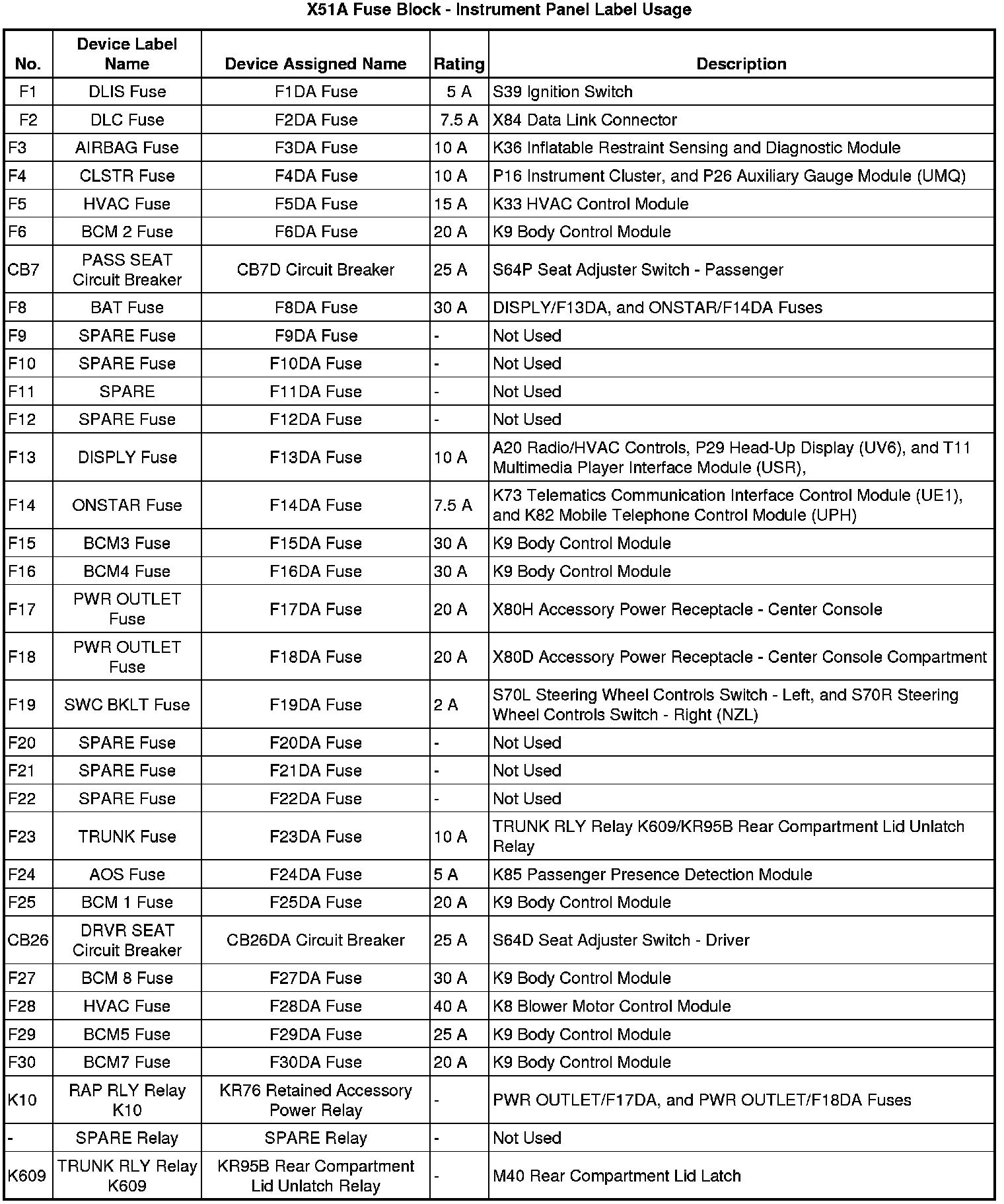

X51A Fuse Block - Instrument Panel Label
