Instrument Panel and Overhead Lamps

Instrument Panel and Overhead Lamps

Component Name Callout
Vanity Mirror Lamp- Left 1
Courtesy/Reading Lamps- Left Front/Right Front 2
Vanity Mirror Lamp- Right 3
I/P Compartment Lamp 4
I/P Courtesy Lamp- Right 5
I/P Courtesy Lamp- Left 6

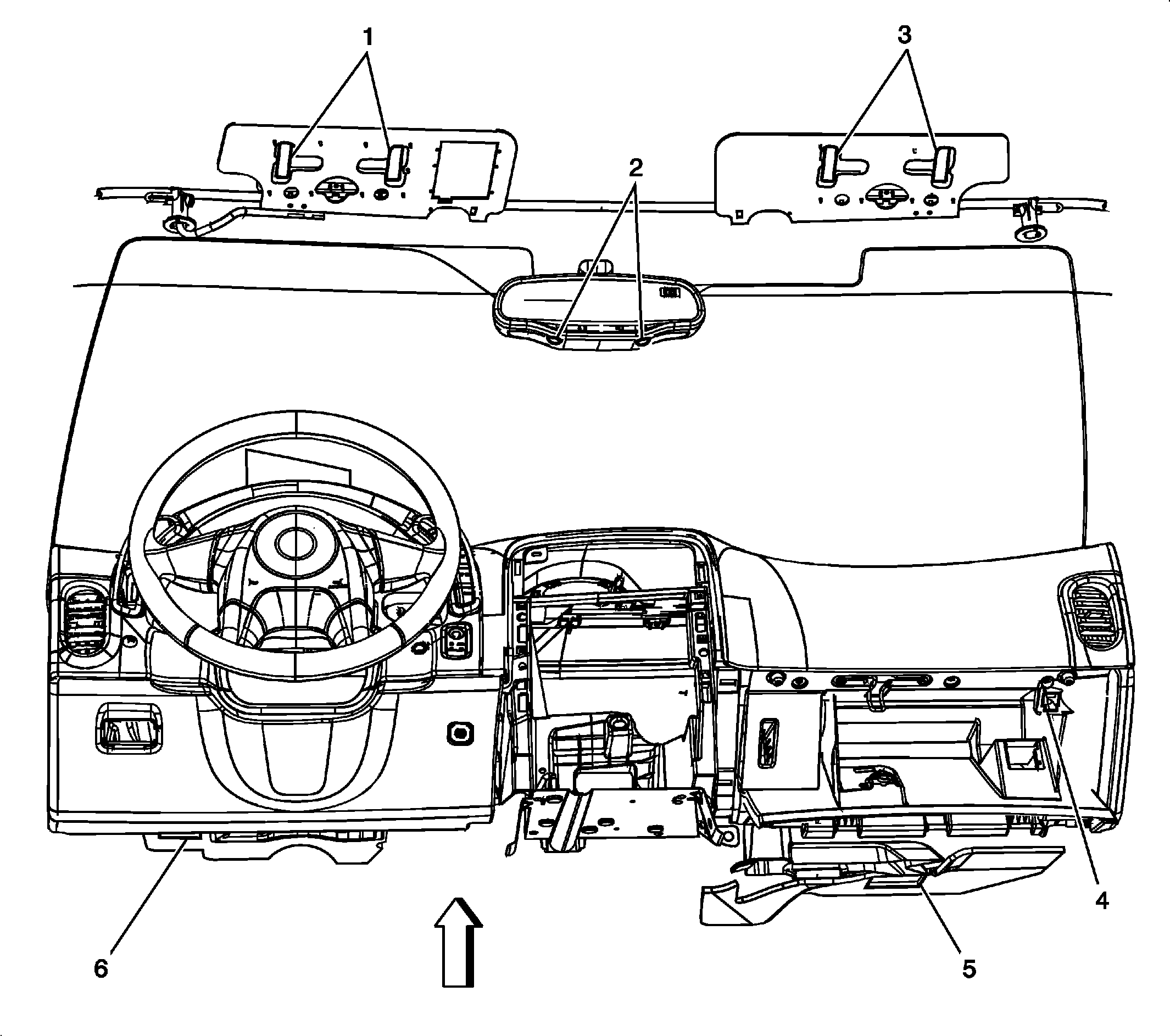

Fig 1: I/P and Overhead Lamps
GM1486788Courtesy of GENERAL MOTORS COMPANY
