Windshield Wiper Motor Replacement
Courtesy of GENERAL MOTORS COMPANY Windshield Wiper Motor Replacement
| Callout |
Component Name |
|
Preliminary Procedures
- Open the hood.
- Remove the wiper arms. Refer to Windshield Wiper Arm Replacement .
- Remove the air inlet grille. Refer to Air Inlet Grille Panel Replacement .
- Remove the wiper system module. Refer to Windshield Wiper System Module Replacement .
|

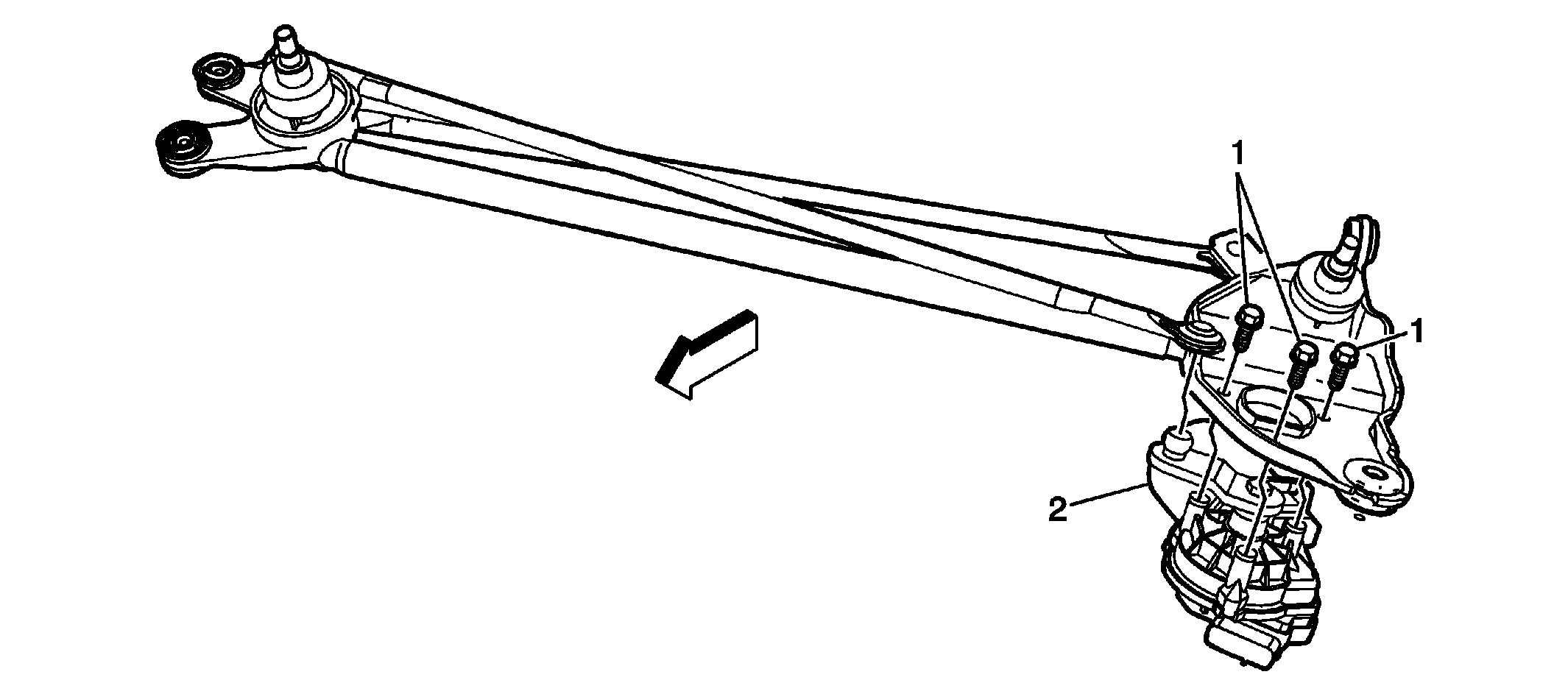

| 1 |
Wiper Motor Bolt (Qty: 3)
Tighten
4.5 N.m (40 lb in) |
| 2 |
Wiper Motor
- Use the J 39232
Wiper Linkage Separator or equivalent to remove the wiper transmission arm from the crank arm ball socket.
- Use the J 39529
Wiper Linkage Installer or equivalent to install the wiper transmission arm to the crank arm ball socket.
Special Tools
- J 39232
Wiper Linkage Separator
- J 39529
Wiper Linkage Installer
- For equivalent regional tools, refer to Special Tools .
|
