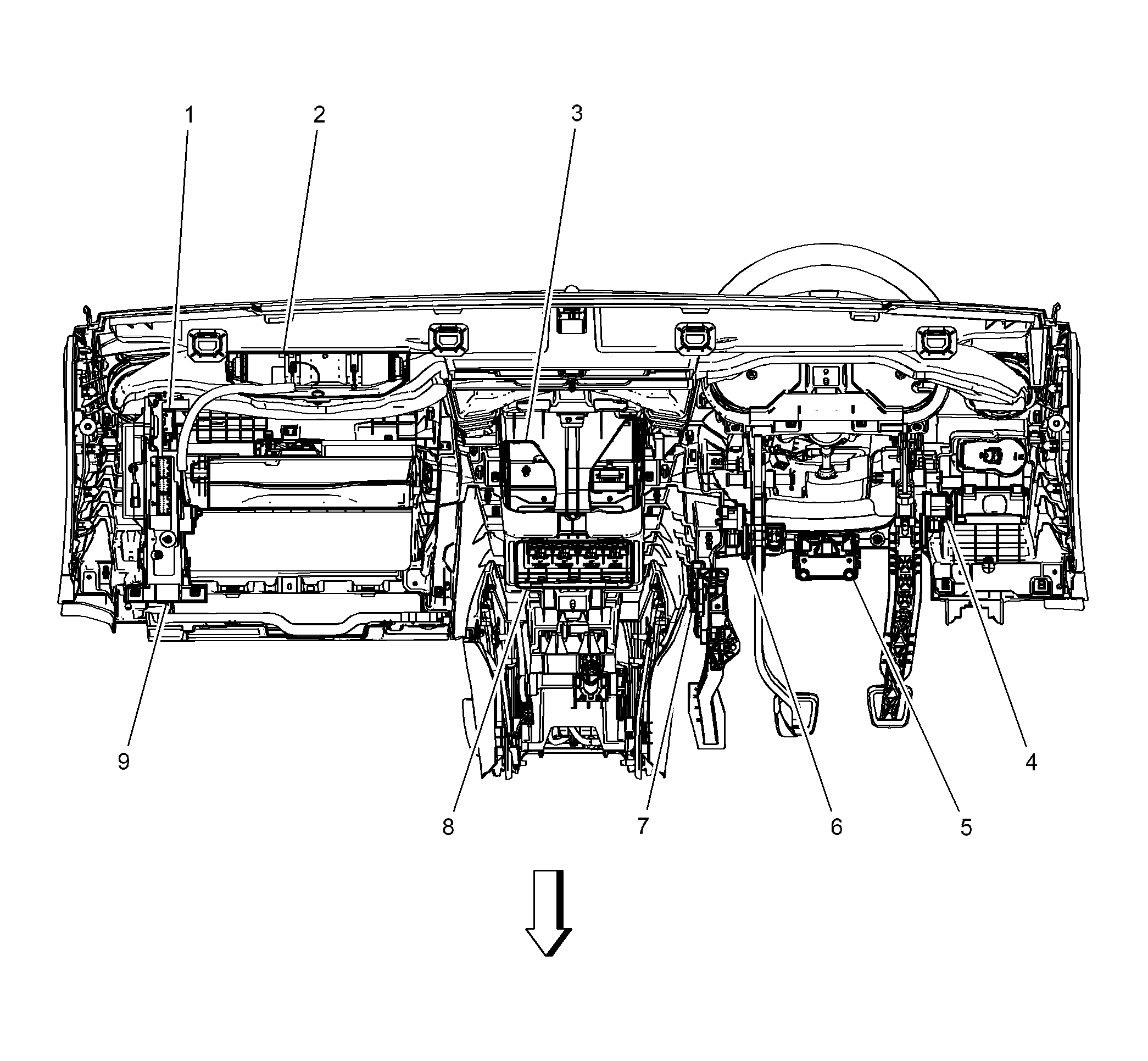

Behind the Instrument Panel Components
Behind the Instrument Panel Components
| Items |
|---|
| 1: T15 Navigation Antenna Signal Splitter (UE1 and UYS) |
| 2: F101 Passenger Instrument Panel Air Bag F101 Passenger Instrument Panel Air Bag X1F101 Passenger Instrument Panel Air Bag X2 |
| 3: A11 Radio A11 Radio X1A11 Radio X2 (UDN)A11 Radio X3 (UEW) |
| 4: B25B Clutch Pedal Position Sensor (MF3 or MZ0) B25B Clutch Pedal Position Sensor (MF3 or MZ0) |
| 5: K60 Steering Column Lock Module (ULS) K60 Steering Column Lock Control Module (ULS) |
| 6: B22 Brake Pedal Position Sensor B22 Brake Pedal Position Sensor (MF3 or MZ0)B22 Brake Pedal Position Sensor (MH8) |
| 7: B107 Accelerator Pedal Position Sensor B107 Accelerator Pedal Position Sensor |
| 8: K33 HVAC Control Module K33 HVAC Control Module X1K33 HVAC Control Module X2K33 HVAC Control Module X3 |
| 9: K73 Telematics Communication Interface Control Module (UE1) K73 Telematics Communications Interface Control Module X1 (UE1)K73 Telematics Communications Interface Control Module X2 (UE1) |
