Barometric Pressure Sensor: Locations

Powertrain Component Views

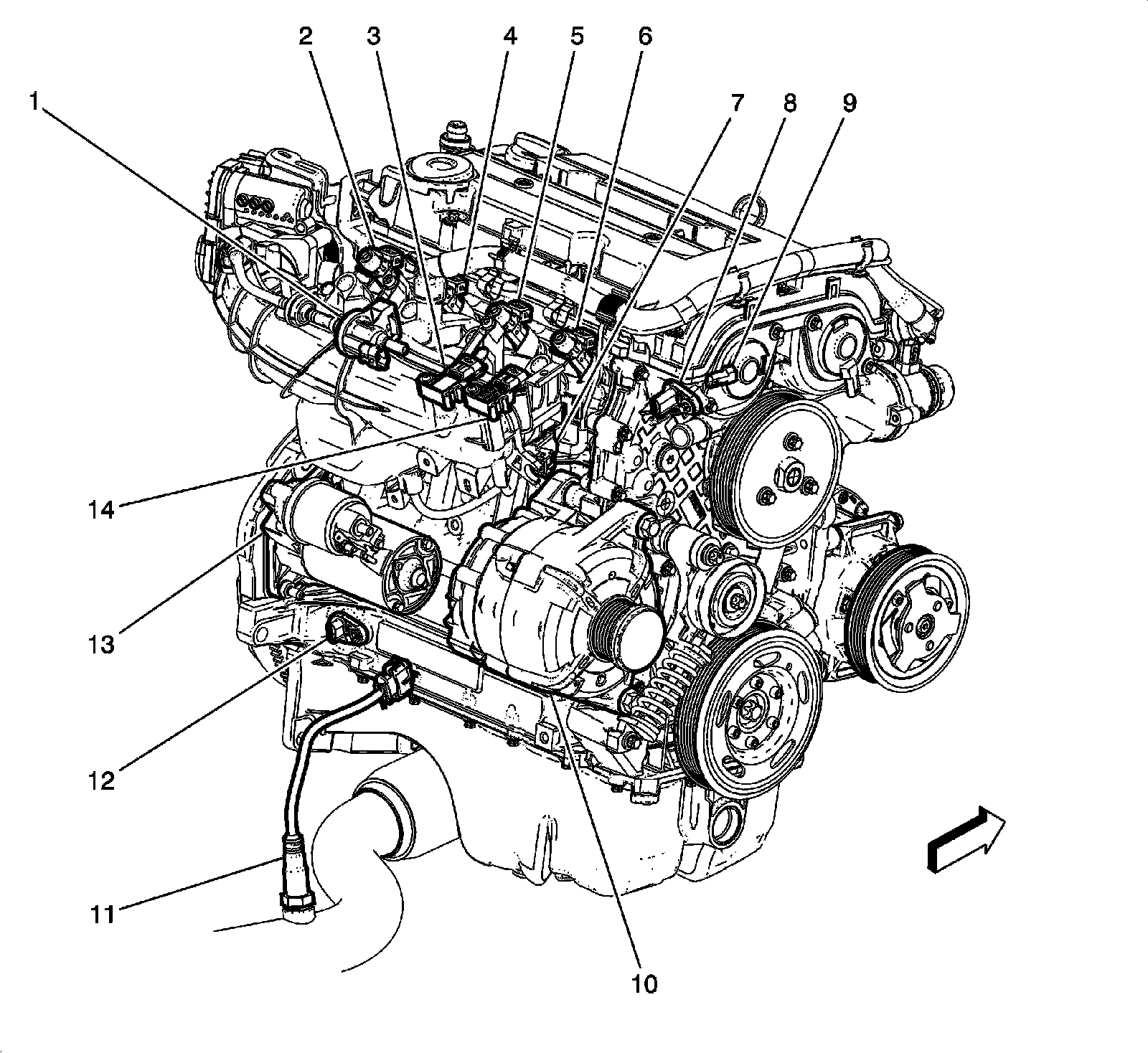

Right Rear of the Engine Components (LUJ)





1 - Q12 Evaporative Emission (EVAP) Purge Solenoid Valve

2 - Q17D Fuel Injector 4

3 - B74 Manifold Absolute Pressure Sensor

4 - Q17C Fuel Injector 3

5 - Q17B Fuel Injector 2

6 - Q17A Fuel Injector 1

7 - Q42 Turbocharger Wastegate Solenoid Valve

8 - B23F Camshaft Position Sensor - Intake

9 - Q6F Camshaft Position Actuator Solenoid Valve - Intake

10 - G13 Generator

11 - B52B Heated Oxygen Sensor 2

12 - B26 Crankshaft Position (CKP) Sensor

13 - M64 Starter Motor

14 - B17 Barometric Pressure (BARO) Sensor
