Refrigerant Pressure Sensor / Switch: Locations

Front of Vehicle/Engine Compartment Component Views

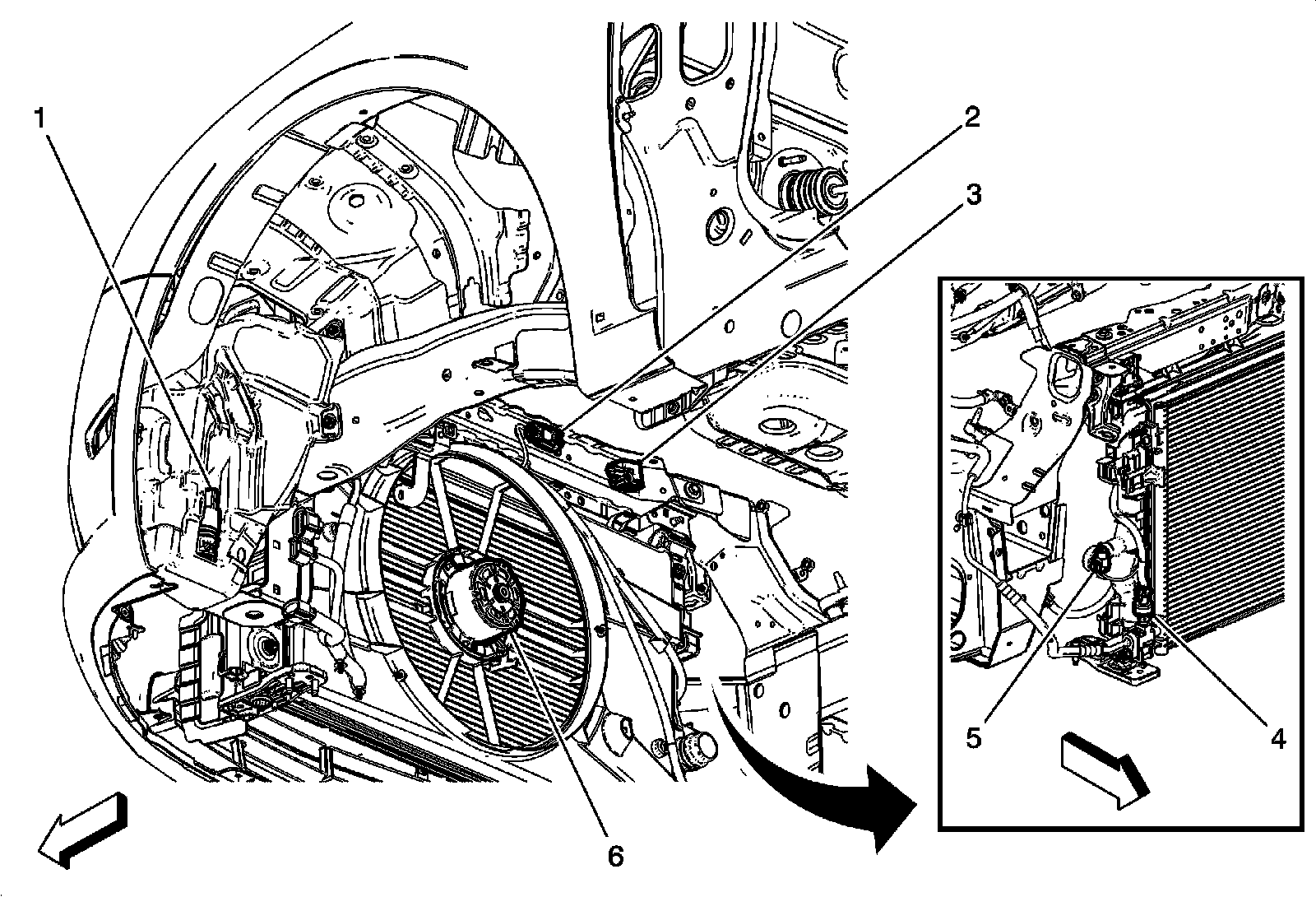

Front of Engine Compartment Components





1 - G24 Windshield Washer Pump

2 - B55 Hood Ajar Switch

3 - B59R Front Impact Sensor - Right

4 - B1 A/C Refrigerant Pressure Sensor

5 - B34B Engine Coolant Temperature Sensor 2

6 - G10 Cooling Fan Motor
