Wheel Alignment Specifications



Wheel Alignment Specifications

NOTE: All specifications are in degrees, convert to angular minutes, if necessary.

Condition: Full tank, no passengers and placed on plane ground.

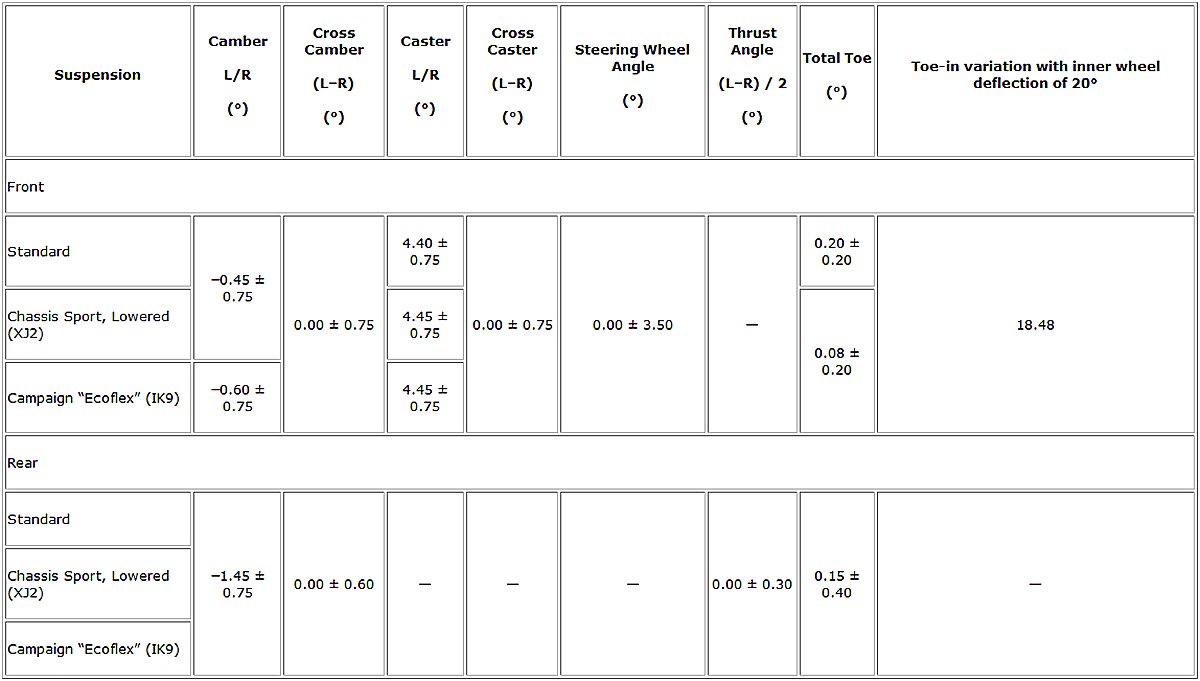

Front And Rear Specifications:
