Neutral Safety Switch: Locations

Powertrain Component Views

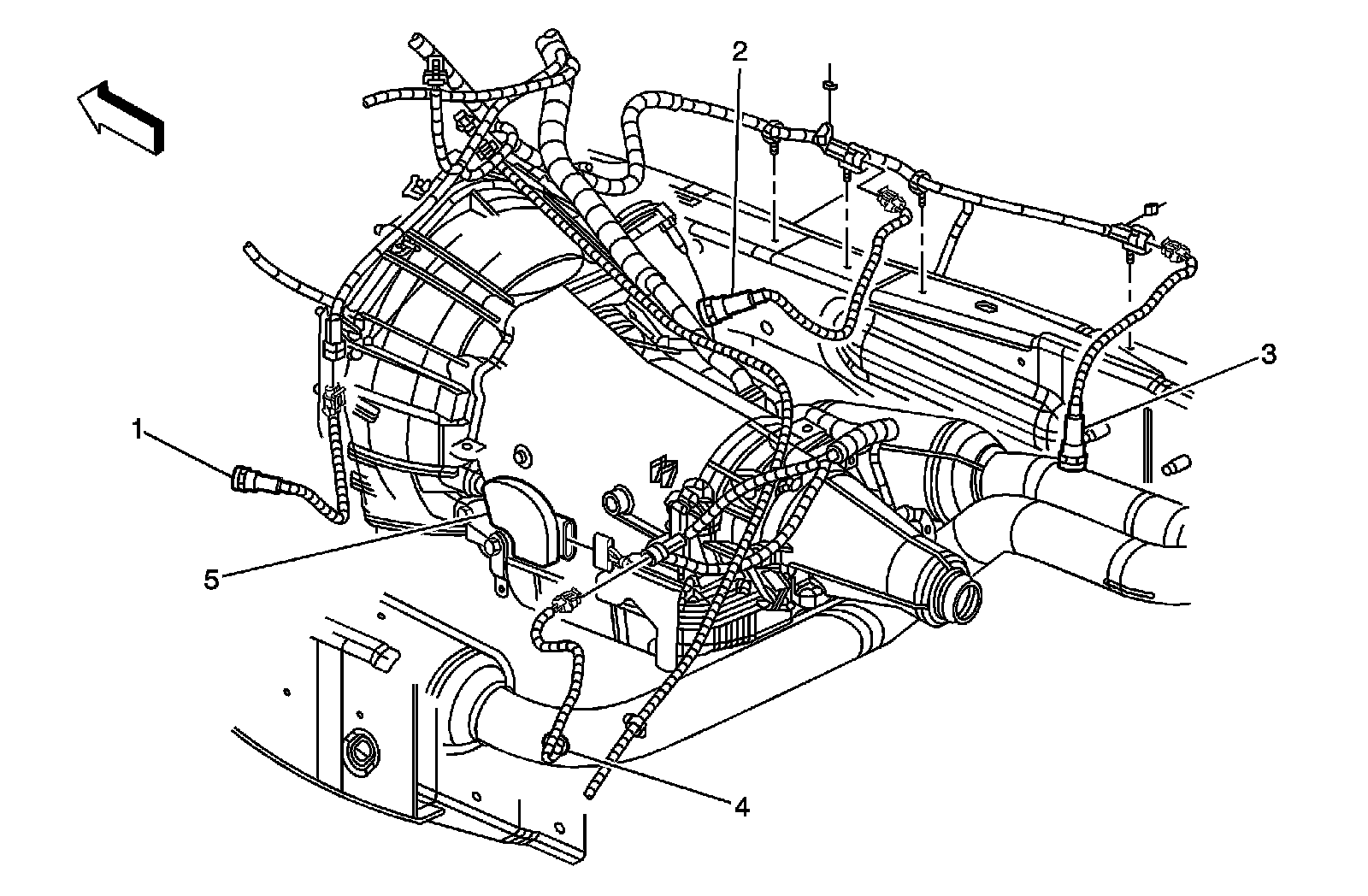

Rear of the Engine (LU3 or LMF)





1 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 1

2 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 1

3 - Heated Oxygen Sensor (HO2S) - Bank 2 Sensor 2

4 - Heated Oxygen Sensor (HO2S) - Bank 1 Sensor 2

5 - Park/Neutral Position (PNP) Switch
