Blower Motor Control Module
 Courtesy of GENERAL MOTORS COMPANY
|

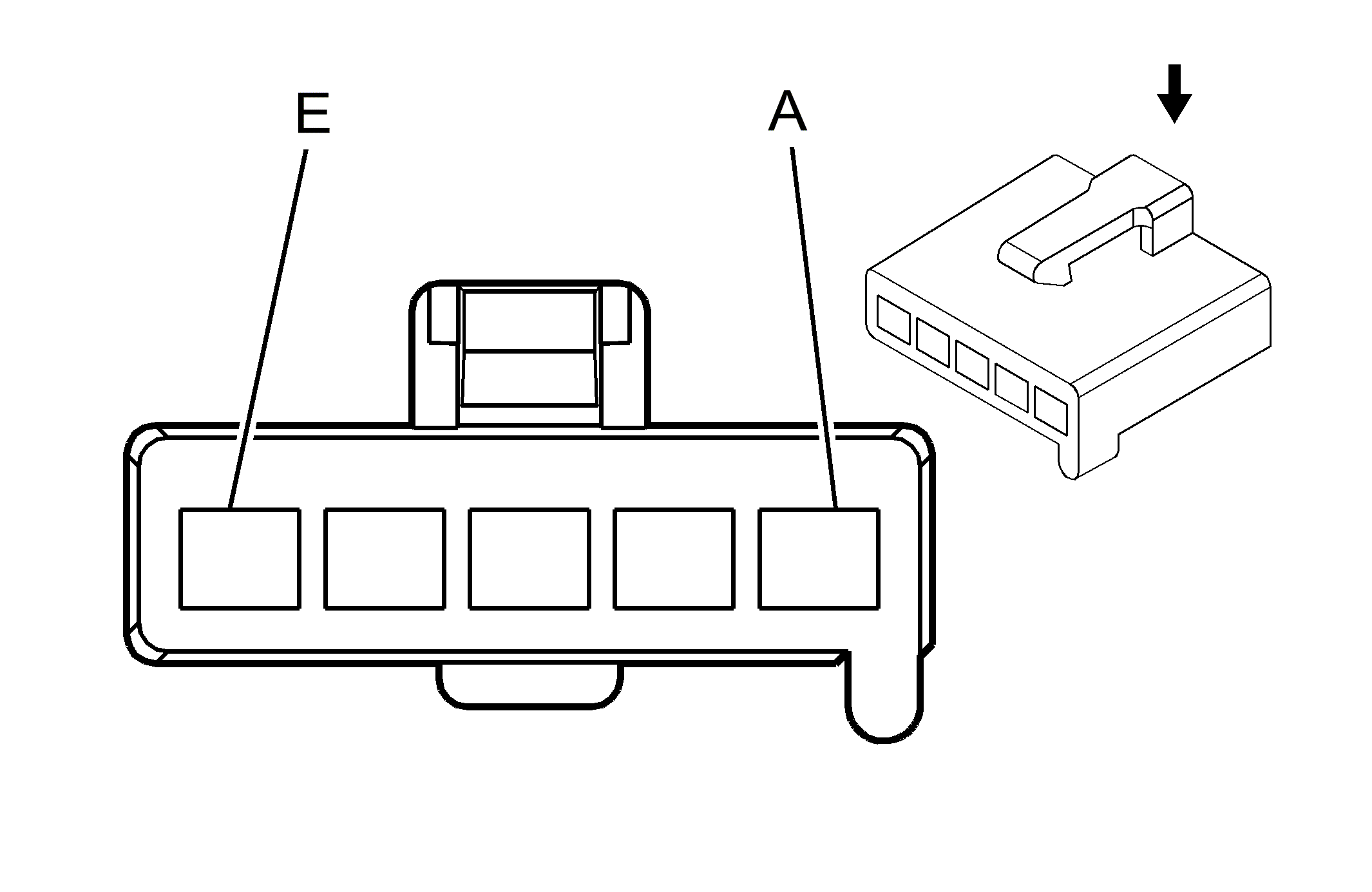

Connector Part Information
- Harness Type: HVAC
- OEM Connector: 12041429
- Service Connector: 12167129
- Description: 5-Way F Metri-Pack 280 Series (BK)
|
Terminal Part Information
- Pins: A, C, D, E
- Terminal/Tray: 12015858/4
- Core/Insulation Crimp: F/G
- Release Tool/Test Probe: 12094430/J-35616-4A (PU)
- Pins: B
- Terminal/Tray: 12034046/2
- Core/Insulation Crimp: E/A
- Release Tool/Test Probe: 12094430/J-35616-4A (PU)
|
Blower Motor Control Module
| Pin |
Wire |
Circuit |
Function |
| A |
3 BK |
150 |
Ground |
| B |
0.35 GY/BK |
754 |
Blower Motor Speed Control |
| C |
3 RD |
442 |
Battery Positive Voltage |
| D |
3 OG |
5987 |
Ground |
| E |
3 PU |
65 |
Blower Motor Supply Voltage |
