Cellular Communication Component Views
WARNING: This page is about a different car, the 2006 Chevrolet Monte Carlo and 2006 Chevrolet Impala. However, it is still accessible from the selected car via links, so may be relevant.

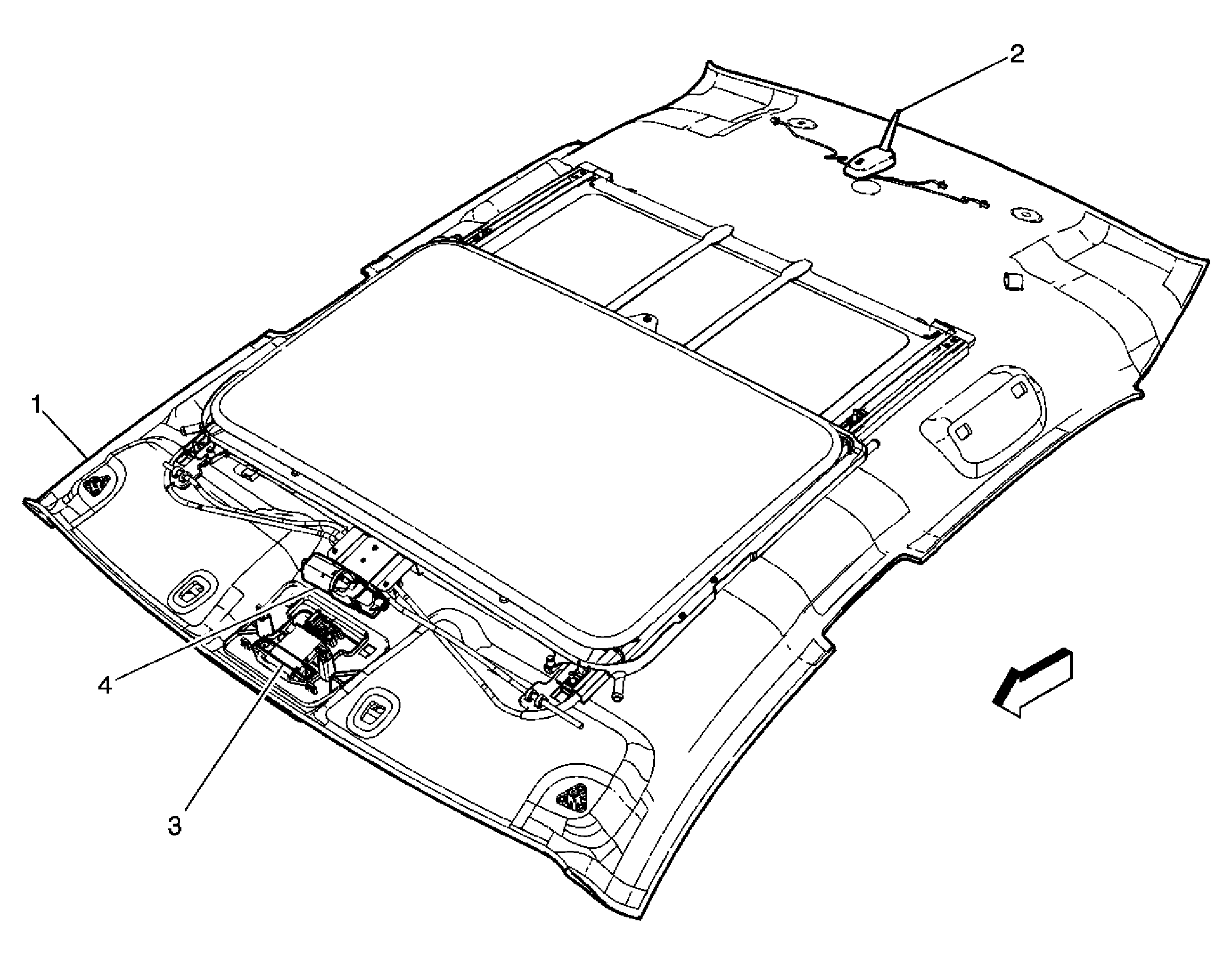

Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Headliner |
| 2 |
Cellular and Navigation Antenna (UE1) |
| 3 |
Sunroof Switch (CF5) |
| 4 |
Sunroof Module (CF5) |
Courtesy of GENERAL MOTORS CORP.
| Callout |
Component Name |
| 1 |
Rear Window Defogger Grid |
| 2 |
Cellular and Navigation Antenna |
| 3 |
Stop Lamp - Right |
| 4 |
Tail/Stop and Turn Signal - Right |
| 5 |
Backup Lamp - Right |
| 6 |
License Lamp |
| 7 |
Center High Mounted Stop Lamp (CHMSL) |
| 8 |
Backup Lamp - Left |
| 9 |
Tail/Stop and Turn Signal - Left |
| 10 |
Stop Lamp - Left |
