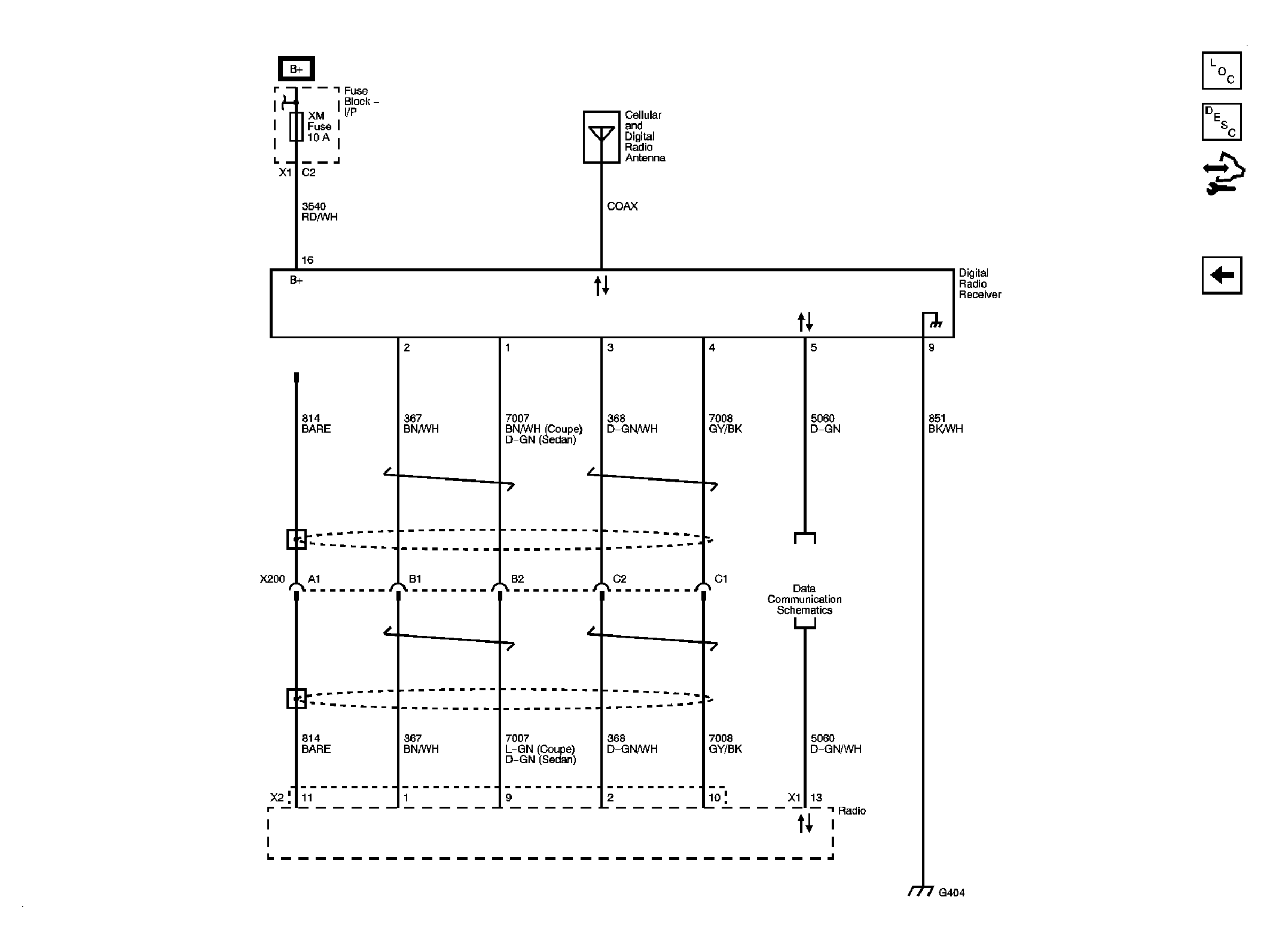

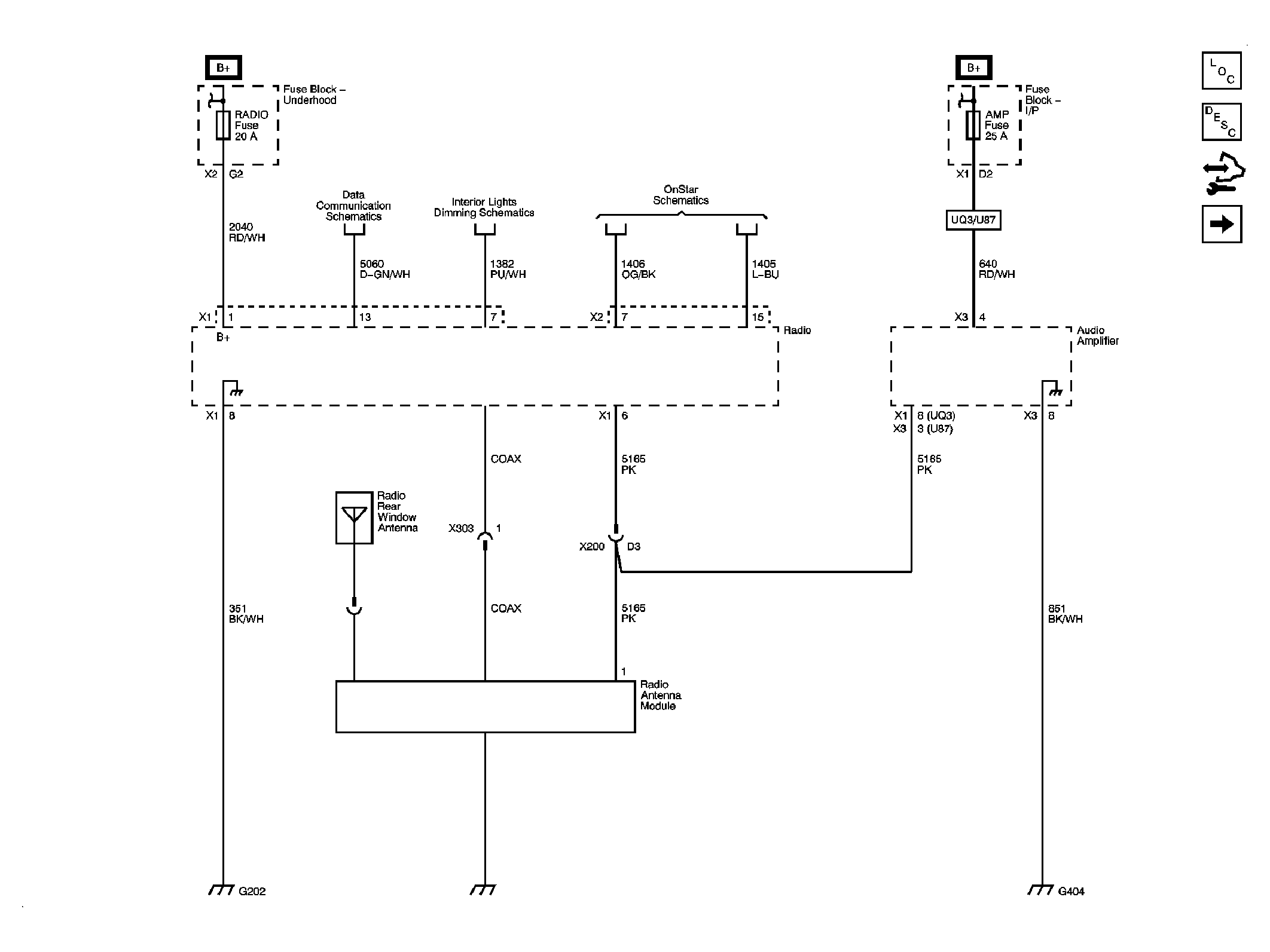

Fig 1: Power, Ground, and References Schematic
Courtesy of GENERAL MOTORS CORP.

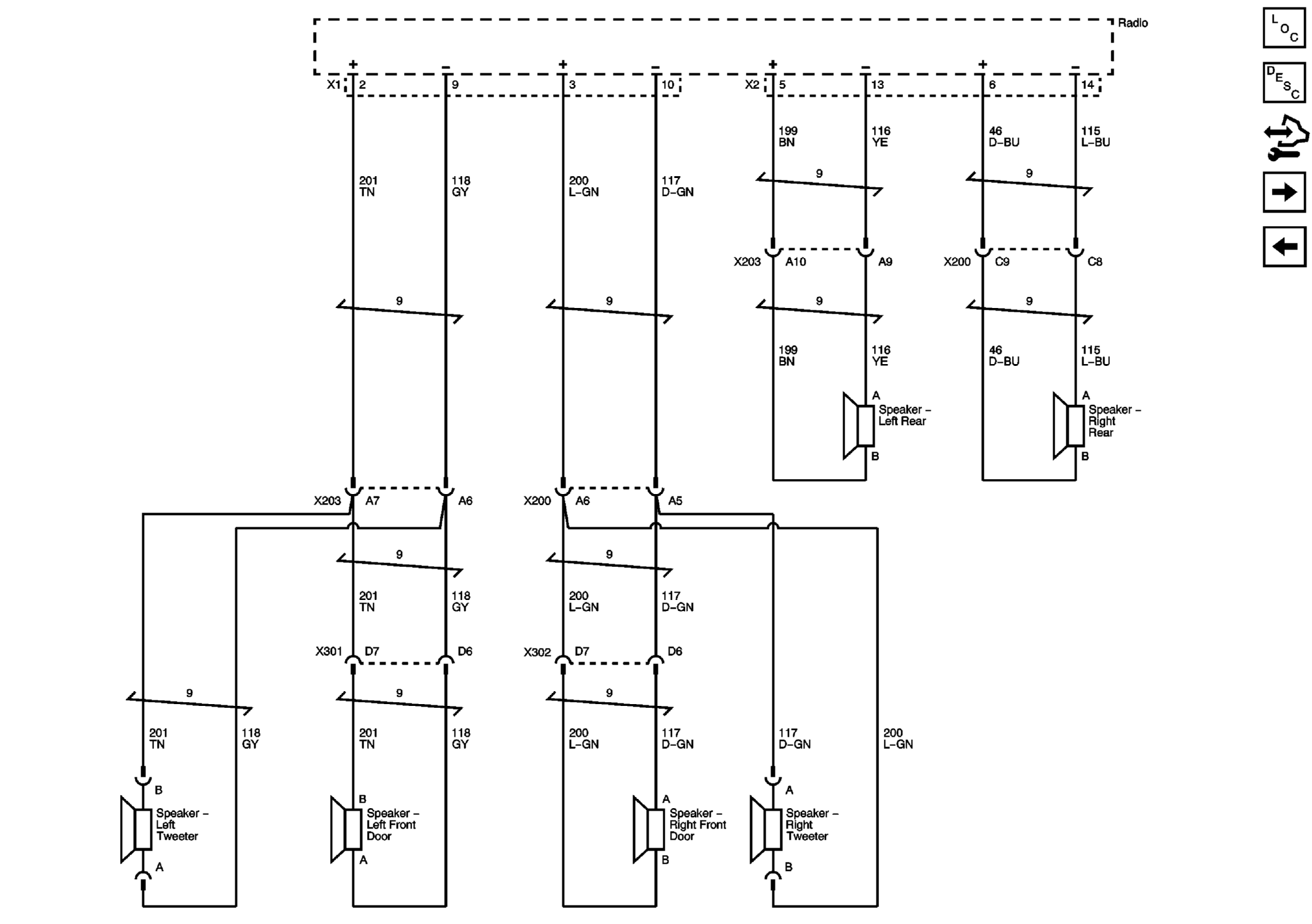

Fig 2: Radio to Speakers - UW6 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 3: Audio Signal Communications - UQ3 Schematic
Courtesy of GENERAL MOTORS CORP.

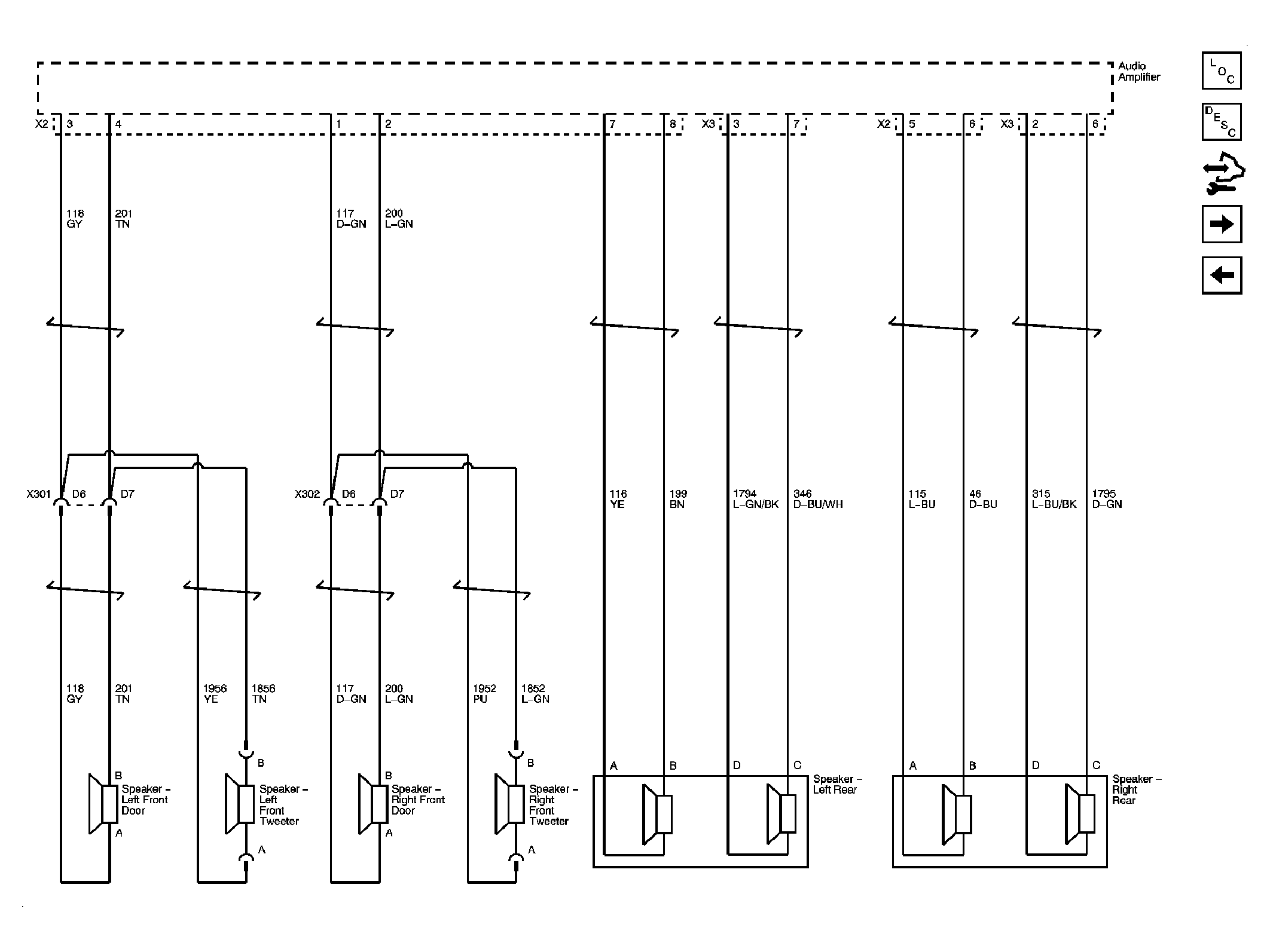

Fig 4: Audio Amplifier to Speakers - UQ3 Schematic
Courtesy of GENERAL MOTORS CORP.

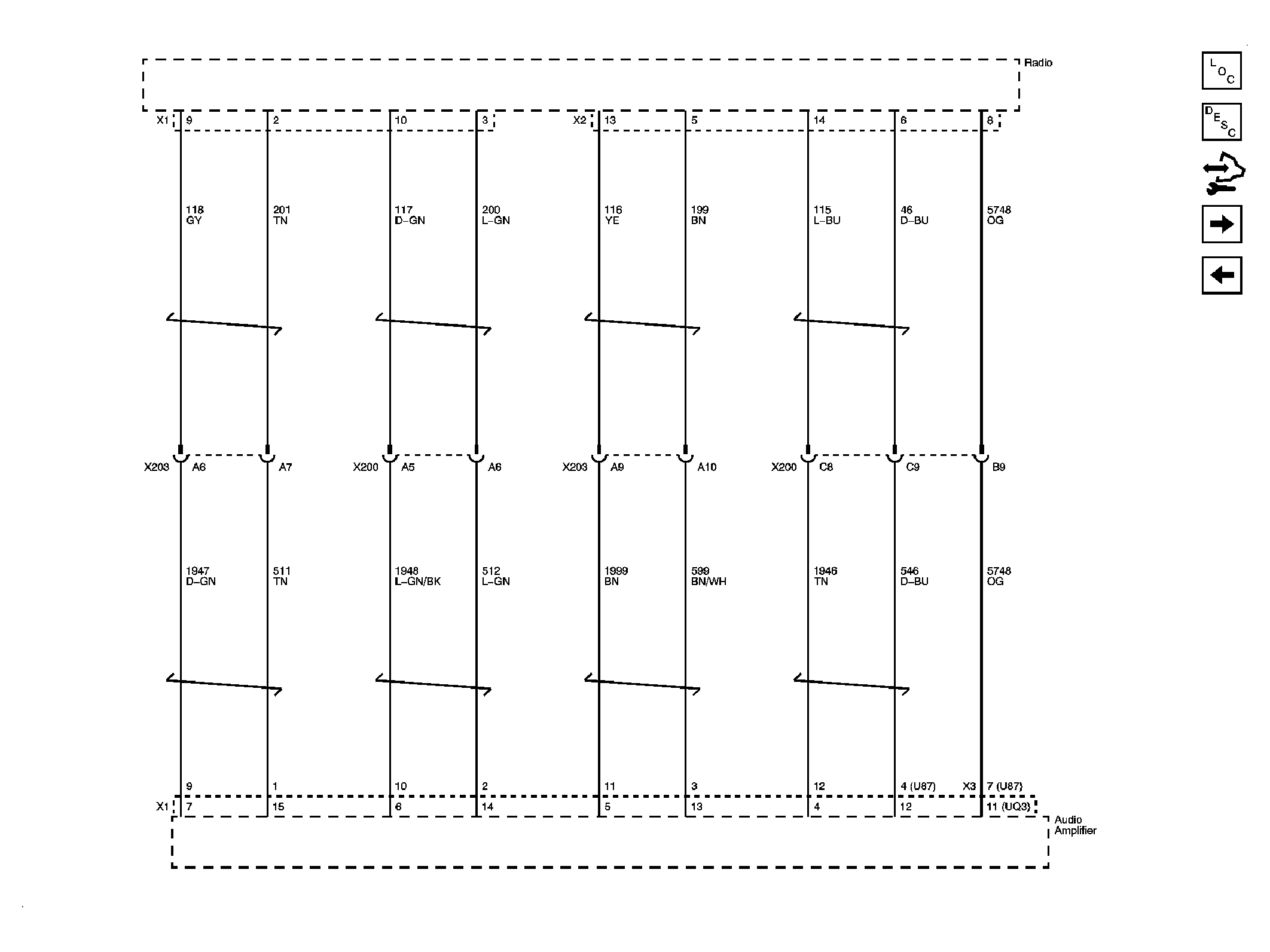

Fig 5: Radio to Speakers - 9C1/9C3 w/o WX7 Schematic
Courtesy of GENERAL MOTORS CORP.
Fig 6: Radio to Speakers - 9C1/9C3 and WX7 Schematic
