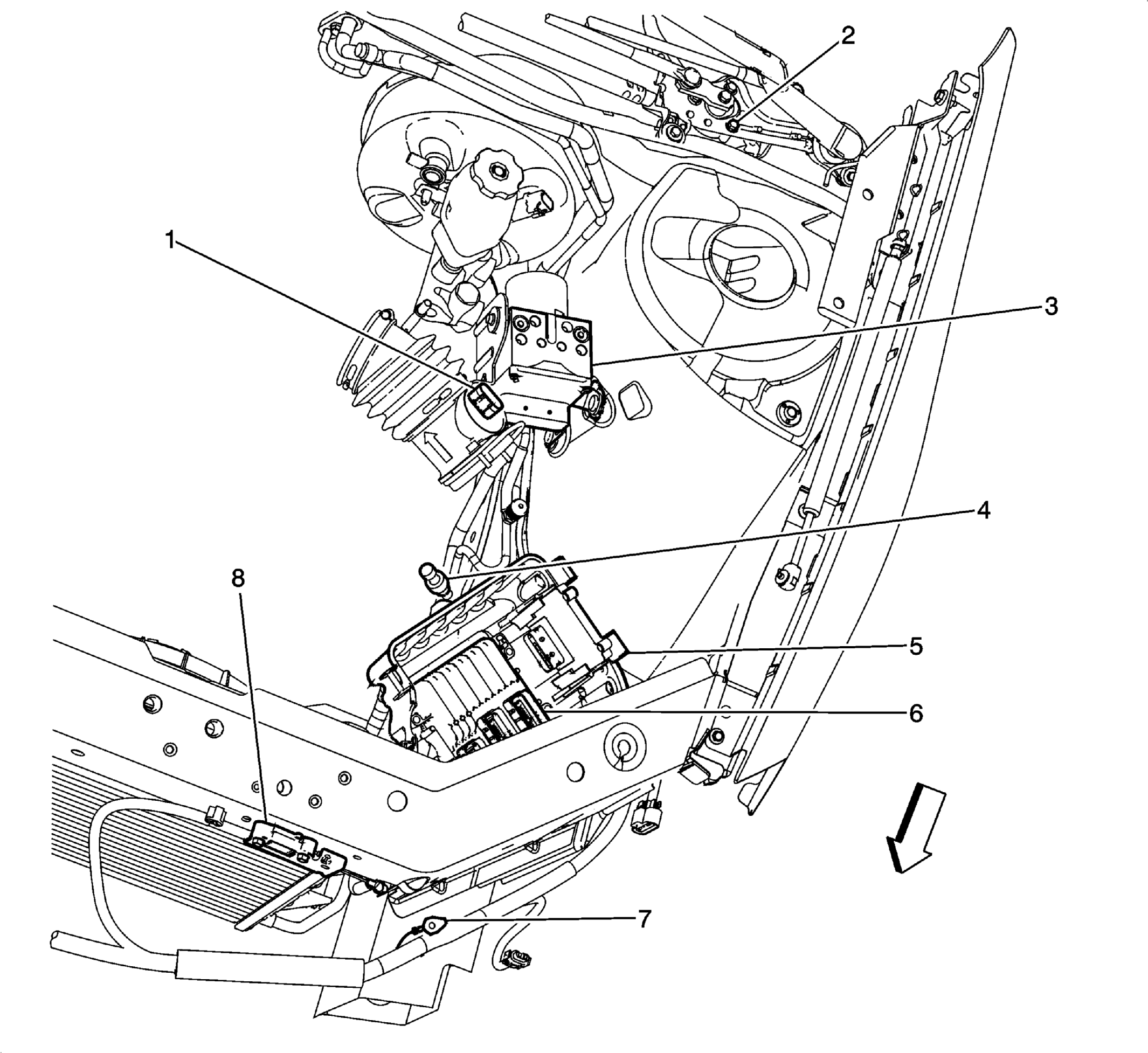

Left Front of the Engine Compartment Components
Left Front of the Engine Compartment Components
| Component Name | Callout |
|---|---|
| Multifunction Intake Air Sensor | 1 |
| Windshield Wiper Motor | 2 |
| Electronic Brake Control Module (EBCM) | 3 |
| A/C Refrigerant Pressure Sensor | 4 |
| Transmission Control Module (TCM) | 5 |
| Engine Control Module (ECM) | 6 |
| G101 | 7 |
| Inflatable Restraint Front End Sensor- Left | 8 |
