Brake Fluid Level Sensor/Switch: Service and Repair

Brake Fluid Level Indicator Switch Replacement

Removal Procedure





1. Disconnect the brake fluid level indicator switch electrical connector.

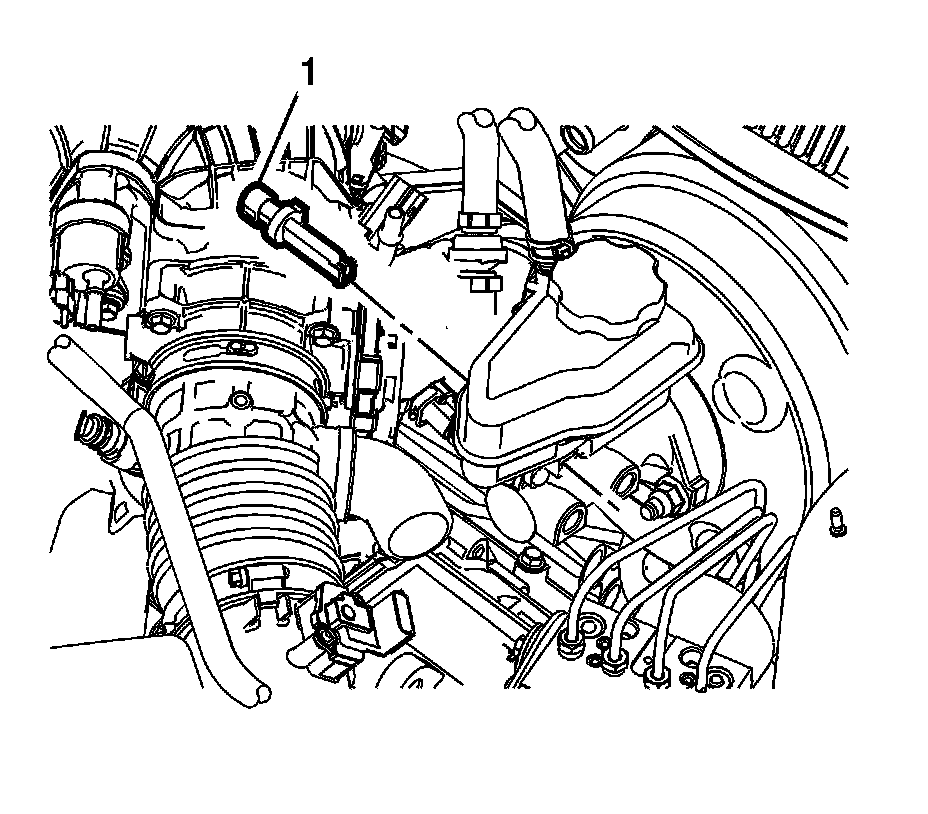

2. Compress the locking tabs and remove the brake fluid level indicator switch (1).

Installation Procedure





Note:
Ensure the locking tabs are fully engaged in the master cylinder reservoir.

1. Compress the locking tabs and install the brake fluid level indicator switch (1).

2. Connect the brake fluid level indicator switch electrical connector.
