Accessory AC and DC Power Control Module Replacement
Courtesy of GENERAL MOTORS COMPANY Accessory AC and DC Power Control Module Replacement

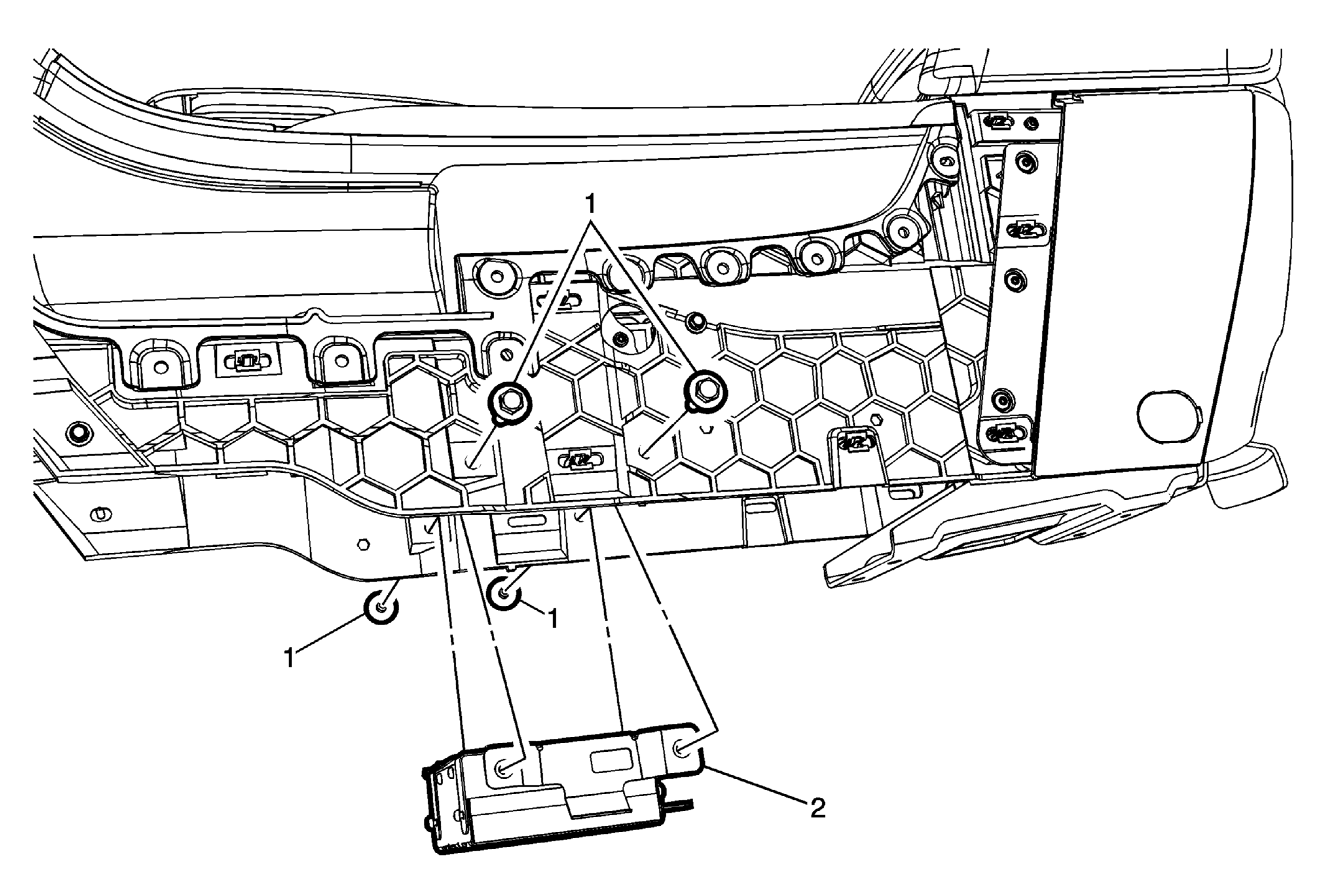

| Callout |
Component Name |
|
Preliminary Procedures
- Disconnect the battery negative cable. Refer to Battery Negative Cable Disconnection and Connection
.
- Remove the front floor console. Refer to Front Floor Console Assembly Replacement
.
|
| 1 |
Accessory AC and DC Power Control Module Fastener (Qty: 4) |
| 2 |
Accessory AC and DC Power Control Module Procedure
- Disconnect the electrical connector.
- Transfer components as necessary.
- Program the accessory AC and DC power control module. Refer to Control Module References
for programming and set up.
|
