Front of Engine Compartment Components

Front of Engine Compartment Components

Items
1:  M96 Active Grille Air Shutter Actuator (VRI) M96 Active Grille Air Shutter Actuator
2:  B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
3:  B55 Hood Ajar Switch B55 Hood Ajar Switch
4:  B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right

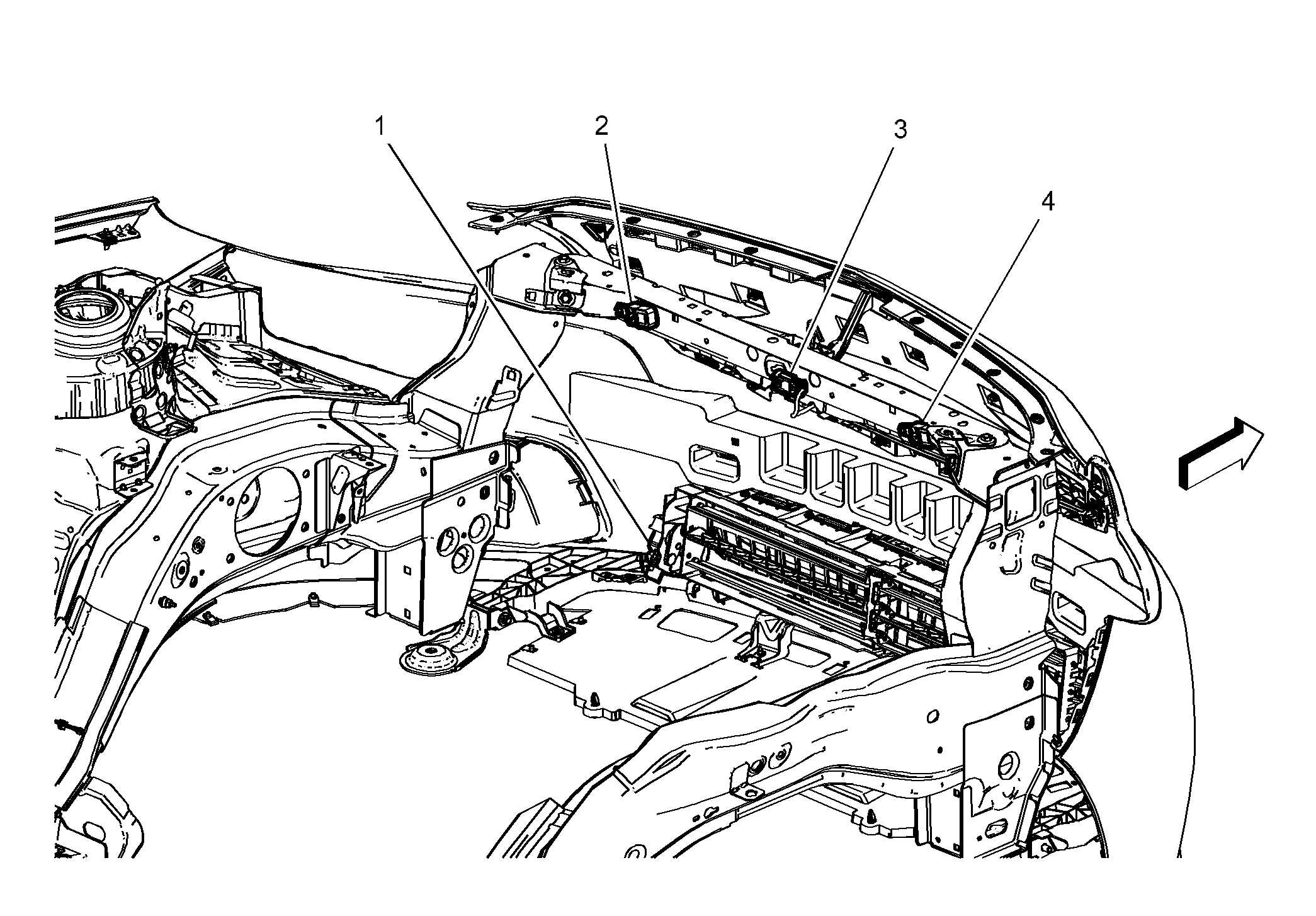

Fig 1: Front of Engine Compartment Components
GM2739793Courtesy of GENERAL MOTORS COMPANY
