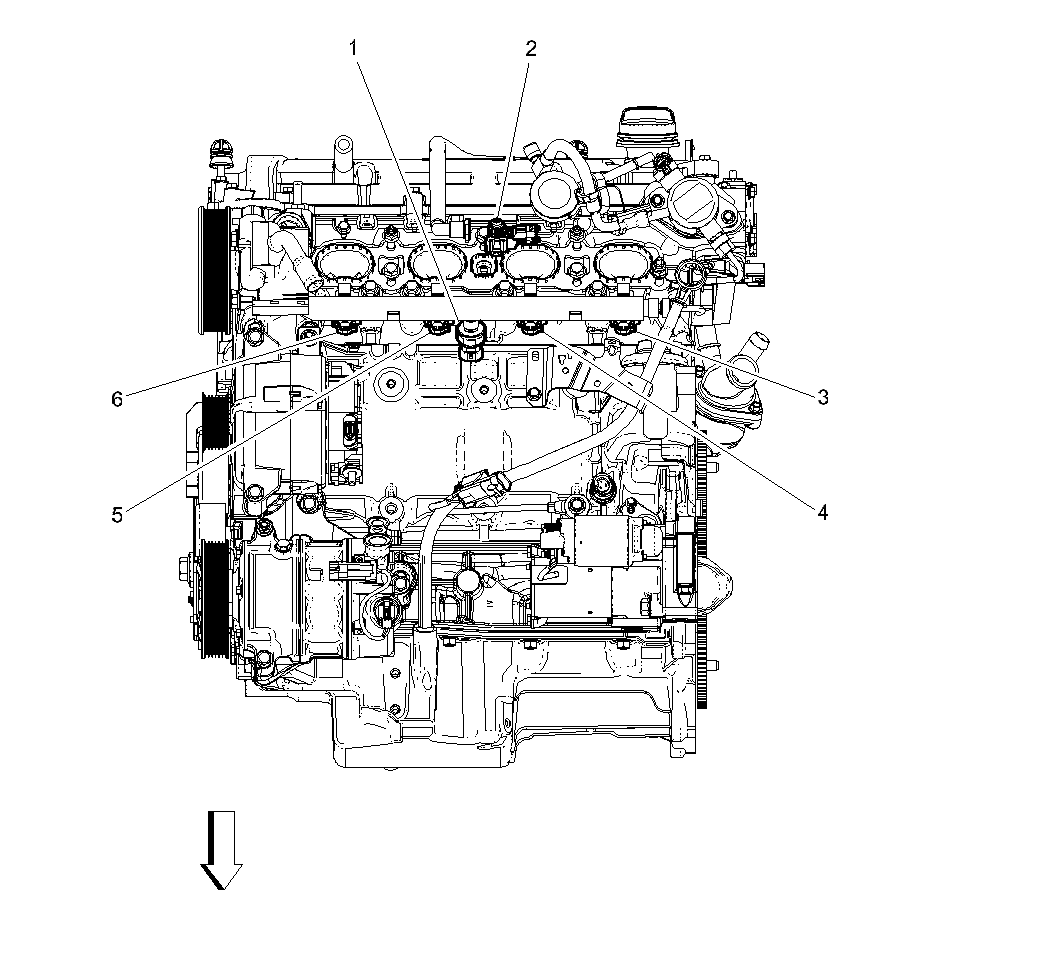

Front of Engine Components
Front of Engine Components
| Items |
|---|
| 1: B47B Fuel Rail Pressure Sensor B47B Fuel Rail Pressure Sensor (LUK) |
| 2: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor (LCV, LUK)B74 Manifold Absolute Pressure Sensor (LTG) |
| 3: Q17D Fuel Injector 4 Q17D Fuel Injector 4 (LCV/LTG)Q17D Fuel Injector 4 (LUK) |
| 4: Q17C Fuel Injector 3 Q17C Fuel Injector 3 (LCV/LTG)Q17C Fuel Injector 3 (LUK) |
| 5: Q17B Fuel Injector 2 Q17B Fuel Injector 2 (LCV/LTG)Q17B Fuel Injector 2 (LUK) |
| 6: Q17A Fuel Injector 1 Q17A Fuel Injector 1 (LCV/LTG)Q17A Fuel Injector 1 (LUK) |
