Engine Control Module (ECM) X2 (L9H with Y91)

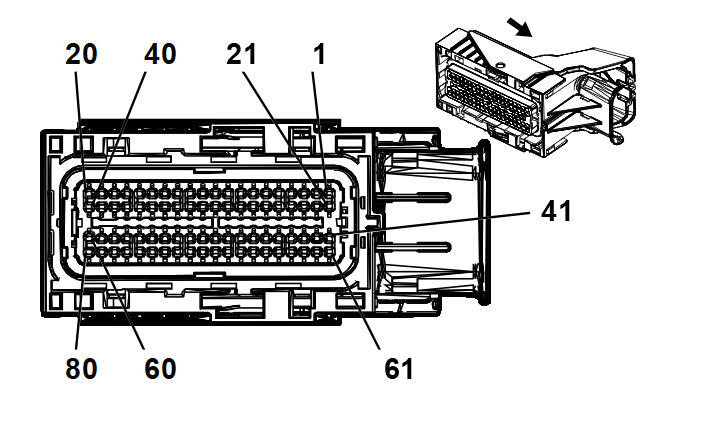

GM1830236Courtesy of GENERAL MOTORS COMPANY
Connector Part Information
  • Harness Type: Engine
  • OEM Connector: 13528613
  • Service Connector: 19115670
  • Description: 80-Way F MX123 34566 Series (GY)
Terminal Part Information
  • Pins: 2-3, 16, 35, 44, 52, 58, 63-66, 68-69
  • Terminated Lead: 13575811
  • Release Tool: J-38125-213
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: 33467-0003/23
  • Core/Insulation Crimp: H/H
  • Pins: 5-6, 8, 12-13, 17-22, 26-27, 29-30, 32, 34, 37-41, 43, 50, 53, 56-61, 70-79
  • Terminated Lead: 13575575
  • Release Tool: J-38125-213
  • Diagnostic Test Probe: J-35616-64B (L-BU)
  • Terminal/Tray: 33467-0005/23
  • Core/Insulation Crimp: Pins: 5-6, 8, 12-13, 17-22, 32, 34, 37-41, 43, 50, 53, 56-61, 70-79 - J/J
  • Core/Insulation Crimp: Pins: 26-27, 29-30 - K/K
Engine Control Module (ECM) X2 (L9H with Y91)

Pin Wire Circuit Function
1 - - Not Used
2 0.35 PU/WH 6270 5-Volt Reference 2
3 0.35 GY 2701 5-Volt Reference 2
4 - - Not Used
5 0.5 BN 582 TAC Motor Control - 2
6 0.5 YE 581 TAC Motor Control - 1
7 - - Not Used
8 0.5 D-GN/WH 428 EVAP Canister Purge Solenoid Control
9-11 - - Not Used
12 0.5 GY/WH 3113 HO2S Heater Low Control - Bank 1 Sensor 1
13 0.5 L-GN 3212 HO2S Heater Low Control - Bank 2 Sensor 1
14-15 - - Not Used
16 0.35 PU 5284 Camshaft Actuator Solenoid Control (LY6 or L9H)
17 0.5 D-BU/WH 878 Fuel Injector 8 Control
18 0.5 TN/WH 845 Fuel Injector 5 Control
19 0.5 YE/BK 846 Fuel Injector 6 Control
20 0.5 TN 1744 Fuel Injector 1 Control
21 0.5 YE 410 ECT Sensor Signal
22 0.5 TN 2761 Low Reference
23-25 - - Not Used
26 0.8 D-BU 496 KS 1 Signal
27 0.8 GY 1716 KS 1 Signal
28 - - Not Used
29 0.8 L-BU 1876 KS 2 Signal
30 0.8 GY 2303 KS 2 Signal
31 - - Not Used
32 0.5 GY 23 Generator Field Duty Cycle Signal
33 - - Not Used
34 0.5 BK 2755 Low Reference
35 0.35 TN 2752 Low Reference
36 - - Not Used
37 0.5 L-GN/BK 1745 Fuel Injector 2 Control
38 0.5 PK/BK 1746 Fuel Injector 3 Control
39 0.5 L-BU/BK 844 Fuel Injector 4 Control
40 0.5 OG/BK 877 Fuel Injector 7 Control
41 0.5 GY/WH 2705 5-Volt Reference 1
42 - - Not Used
43 0.5 GY 2704 5-Volt Reference 1
44 0.35 D-BU 6259 5-Volt Reference 1
45-49 - - Not Used
50 0.35 TN/WH 331 Oil Pressure Sensor Signal
51 - - Not Used
52 0.35 TN 2199 Low Reference (LY6 or L9H)
53 0.5 OG/BK 469 Low Reference
54-55 - - Not Used
56 0.5 TN 1664 HO2S Low Signal - Bank 1 Sensor 1
57 0.5 PU/WH 1665 HO2S High Signal - Bank 1 Sensor 1
58 0.5 L-GN 432 MAP Sensor Signal
59 0.5 PU 1666 HO2S High Signal - Bank 2 Sensor 1
60 0.5 TN 1667 H02S Low Signal - Bank 2 Sensor 1
61 0.5 BN 25 Charge Indicator Signal
62 - - Not Used
63 0.35 PU 486 TP Sensor 2 Signal
64 0.35 D-BU/WH 6265 CMP Sensor Signal
65 0.35 D-GN 485 TP Sensor 1 Signal
66 0.35 BN 6266 Low Reference
67 - - Not Used
68 0.35 WH/BK 6271 CKP Sensor Signal
69 0.35 GY/BK 6272 Low Reference
70 0.5 PU 2121 IC 1 Control
71 0.5 PU/WH 2128 IC 8 Control
72 0.5 OG 2127 IC 7 Control
73 0.5 OG/WH 2122 IC 2 Control
74 0.5 L-BU/WH 2126 IC 6 Control
75 0.5 D-GN 2125 IC 5 Control
76 0.5 D-GN/WH 2124 IC 4 Control
77 0.5 L-BU 2123 IC 3 Control
78 0.5 BN 2129 Low Reference
79 0.5 BN/WH 2130 Low Reference
80 - - Not Used
