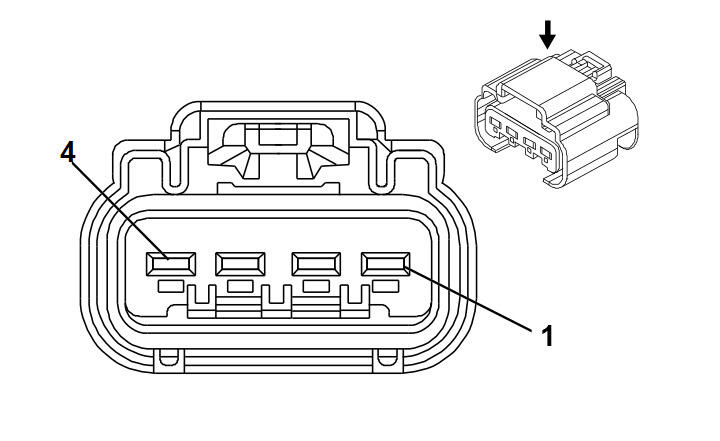

Fuel Level Sensor - Primary (Diesel)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Chassis
- OEM Connector: 13527865
- Service Connector: 13585475
- Description: 4-Way F GT 280 Series, Sealed (NA)
|
Terminal Part Information
- Terminated Lead: 13576356
- Release Tool: J-38125-553
- Diagnostic Test Probe: J-35616-4A (PU)
- Terminal/Tray: 15304719/19
- Core/Insulation Crimp: E/5
|
Fuel Level Sensor - Primary (Diesel)
| Pin |
Wire |
Circuit |
Function |
| 1-2 |
- |
- |
Not Used |
| 3 |
0.5 TN/BK |
6049 |
Low Reference |
| 4 |
0.5 PU |
1589 |
Fuel Level Sensor Signal - Primary |
