Front of Engine Compartment Components

Front of Engine Compartment Components

Items
1:  G10 Cooling Fan Motor G10 Cooling Fan Motor (LUV)G10 Cooling Fan Motor (LUW/LWE)
2:  B59L Front Impact Sensor - Left B59L Front Impact Sensor - Left
3:  B55 Hood Ajar Switch (UTJ) B55 Hood Ajar Switch (UTJ)
4:  B59R Front Impact Sensor - Right B59R Front Impact Sensor - Right
5:  B34B Engine Coolant Temperature Sensor 2 B34B Engine Coolant Temperature Sensor 2

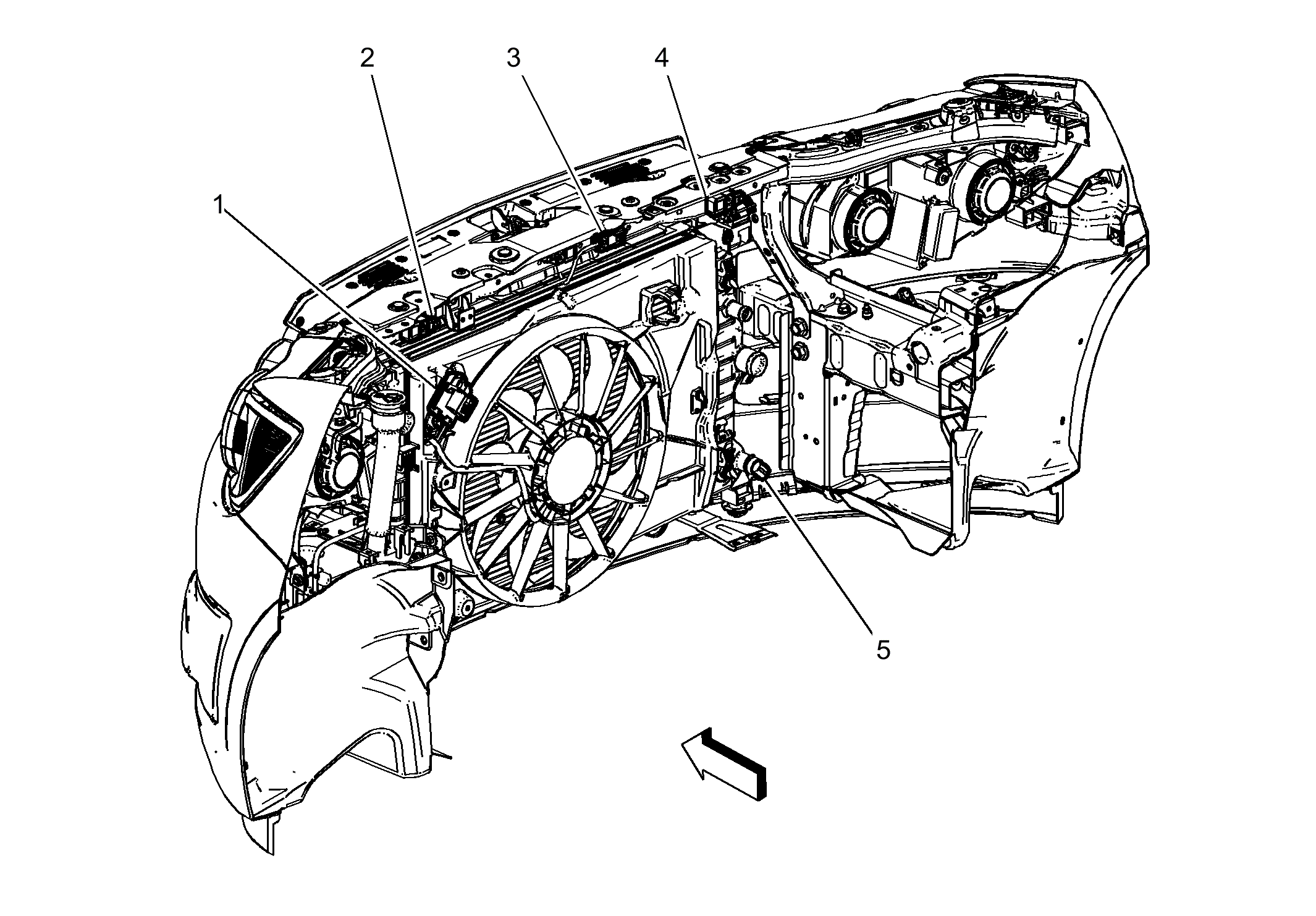

Fig 1: Front of Engine Compartment Components
GM2905885Courtesy of GENERAL MOTORS COMPANY
