Tail Lamp Control Module with Bulb Replacement

WARNING: This page is about a different car, the 2011 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

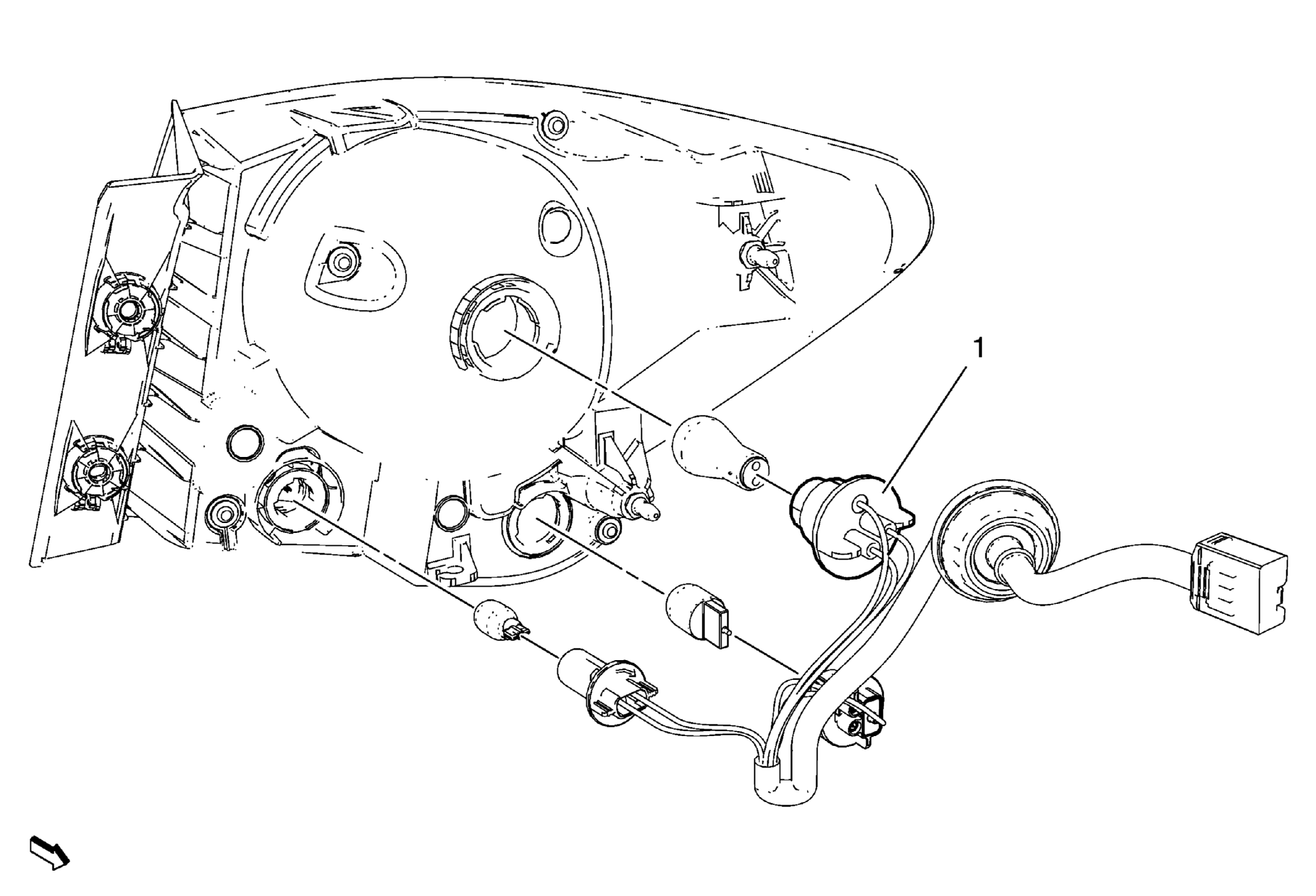

Fig 1: Tail Lamp Control Module
GM2027654Courtesy of GENERAL MOTORS CORP.
Callout Component Name
Preliminary Procedures:
Remove the tail lamp assembly. Refer to Tail Lamp Replacement .
1 Tail Lamp Control Module

Procedure

  1. Rotate the tail lamp control module counterclockwise and remove from the tail lamp housing.
  2. Change bulb, as needed.
