Passive Entry and Passive Start Antennas (ATH) Wiring Schematics

WARNING: This page is about a different car, the 2014 Chevrolet Cruze. However, it is still accessible from the selected car via links, so may be relevant.

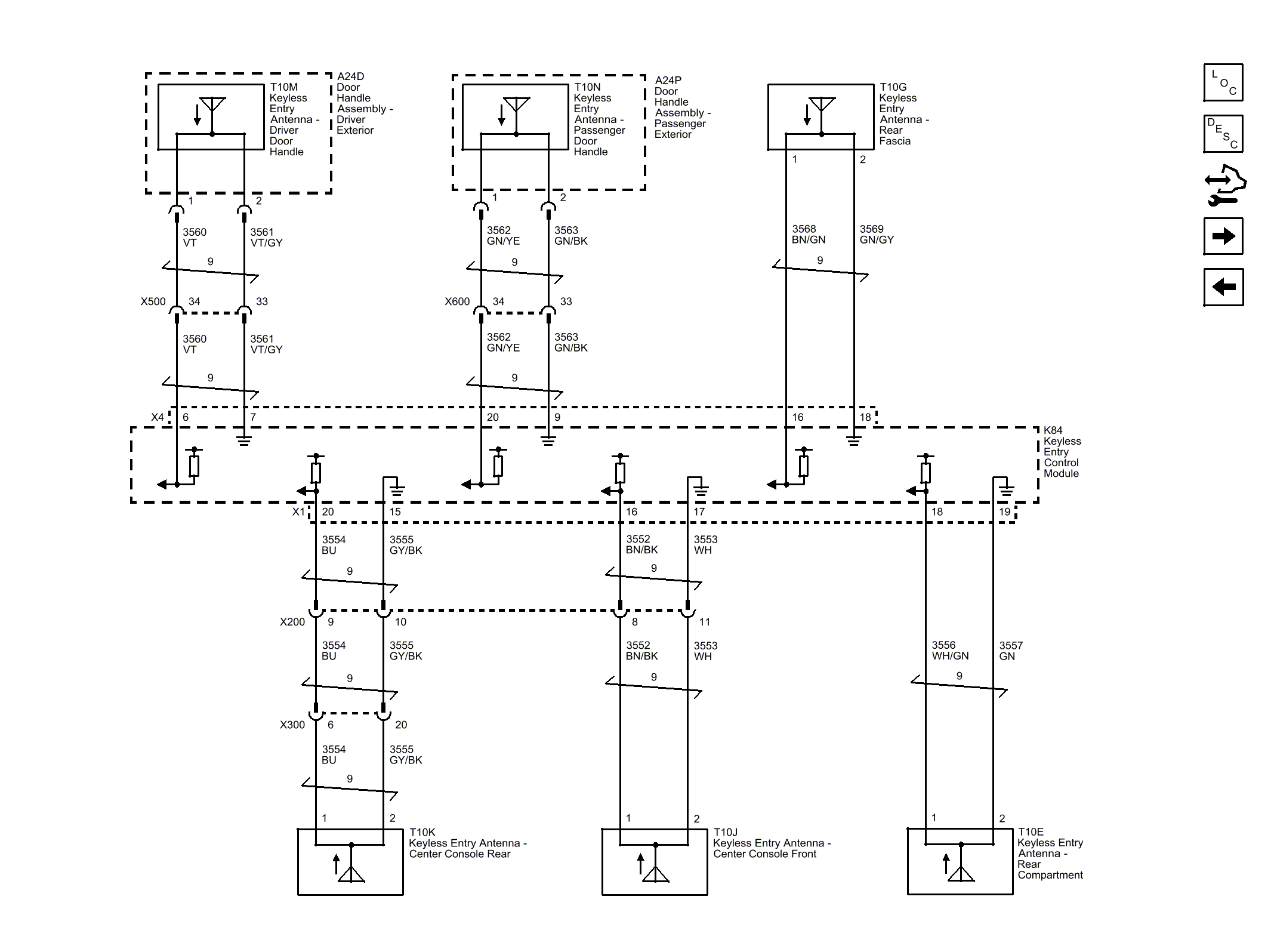

Fig 1: Passive Entry and Passive Start Antennas (ATH) Wiring Schematic
GM3255795Courtesy of GENERAL MOTORS COMPANY
