Theft Deterrent Module Replacement

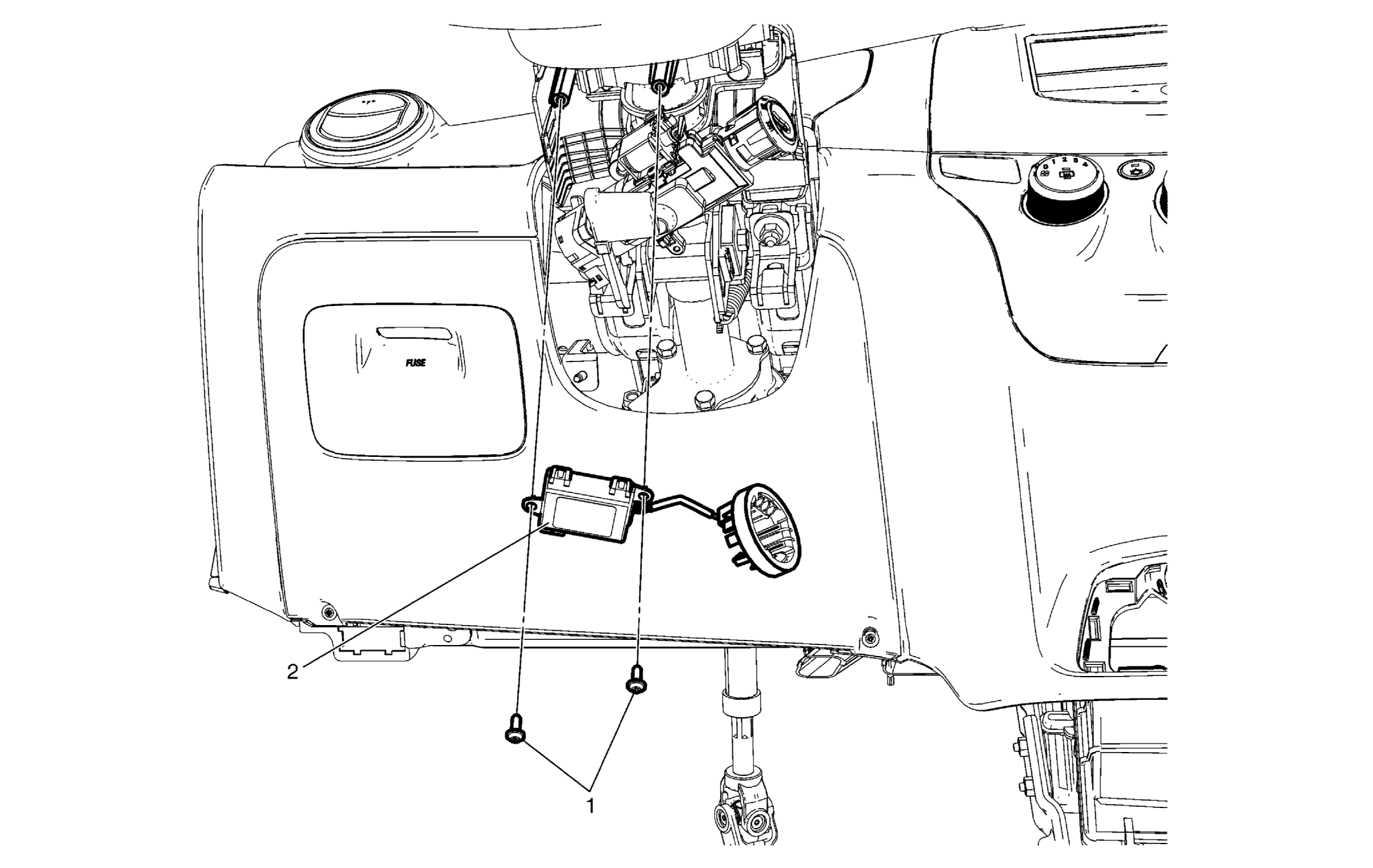

Fig 1: Theft Deterrent Module

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
WARNING: Refer to Battery Disconnect Warning . Preliminary Procedure Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement . Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .
1	Theft Deterrent Module Screw (Qty: 2) CAUTION: Refer to Fastener Caution . Tighten 3 (27 lb in)
2	Theft Deterrent Module Procedure Disconnect the electrical connector. Carefully unclip the bracket from ignition key housing.

Callout

Component Name

WARNING:

Preliminary Procedure

Remove the steering column lower trim cover. Refer to Steering Column Lower Trim Cover Replacement .
Disconnect battery negative cable. Refer to Battery Negative Cable Disconnection and Connection .

Theft Deterrent Module Screw (Qty: 2)

CAUTION:

Tighten
3 (27 lb in)

Theft Deterrent Module

Procedure
