Left Side of Engine Compartment Components

Left Side of Engine Compartment Components

Items
1:  B20 Brake Fluid Level Switch B20 Brake Fluid Level Switch
2:  M75 Windshield Wiper Motor M75 Windshield Wiper Motor
3:  X50A Fuse Block - Underhood X50A Fuse Block - Underhood X1X50A Fuse Block - Underhood X2X50A Fuse Block - Underhood X3
4:  X50B Fuse Block - Underhood Auxiliary X50B Fuse Block - Underhood Auxiliary X1X50B Fuse Block - Underhood Auxiliary X2X50B Fuse Block - Underhood Auxiliary, Wire Entry
5:  X90 Assembly Plant ABS Data Connector (FX3) X90 Assembly Plant ABS Data Connector
6:  M9 Brake Booster Pump Motor M9 Brake Booster Pump Motor

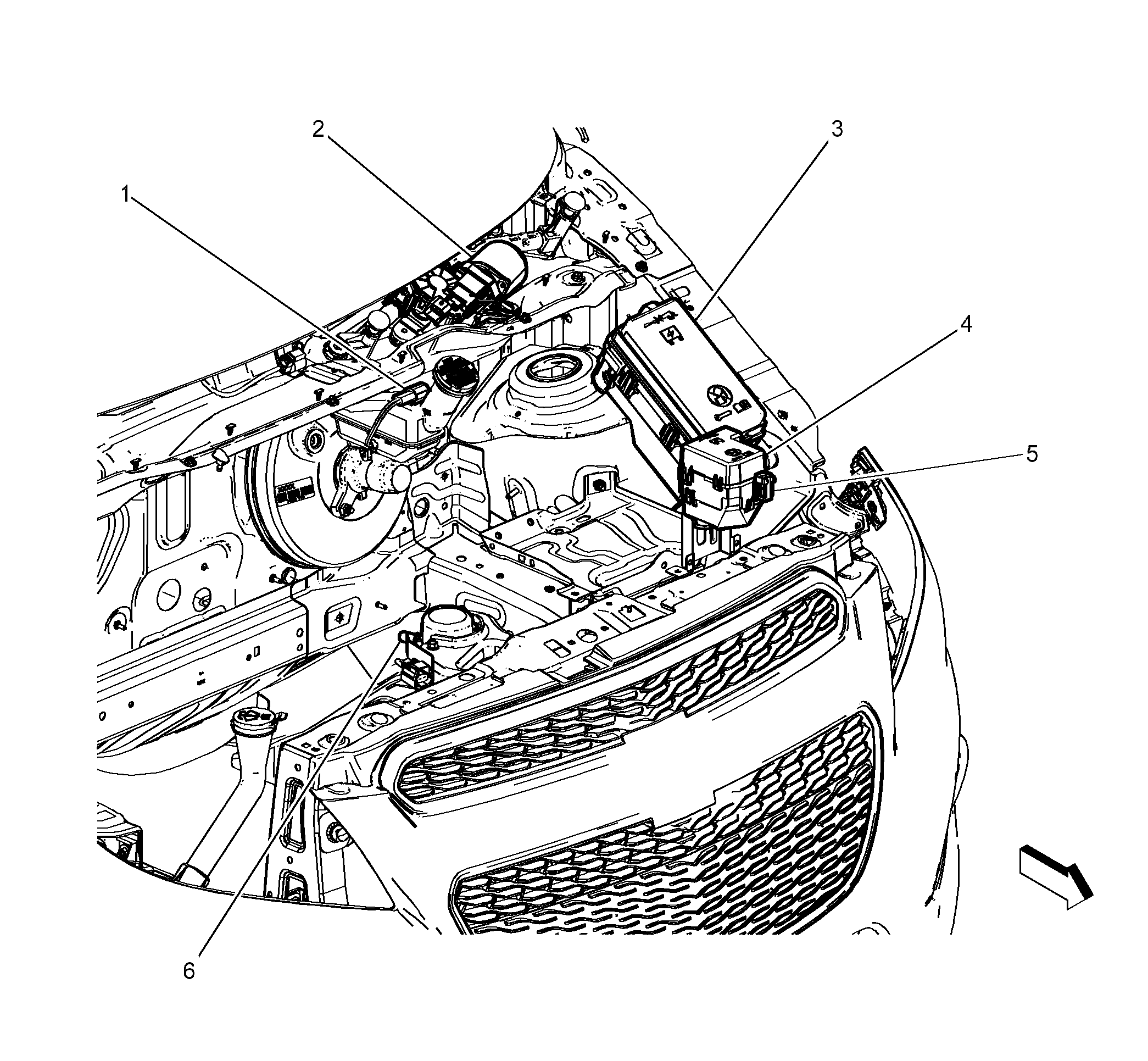

Fig 1: Left Side of Engine Compartment Components
GM2772128Courtesy of GENERAL MOTORS COMPANY
