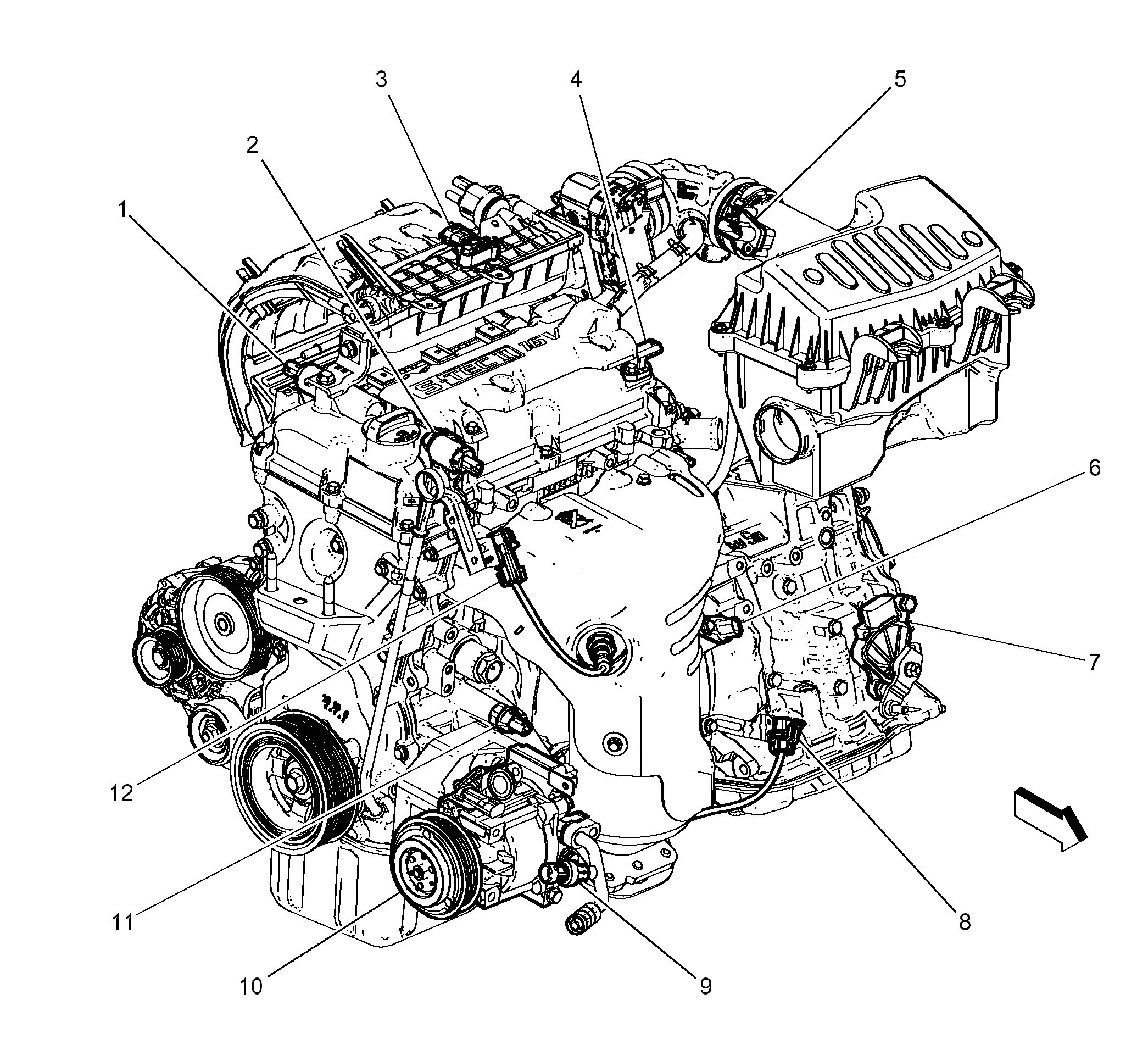

Front of Engine and Transmission Components (MNG)
Front of Engine and Transmission Components (MNG)
| Items |
|---|
| 1: Q6F Camshaft Position Actuator Solenoid Valve - Intake Q6F Camshaft Position Actuator Solenoid Valve Intake |
| 2: Q6E Camshaft Position Actuator Solenoid Valve - Exhaust Q6E Camshaft Position Actuator Solenoid Valve Exhaust |
| 3: B74 Manifold Absolute Pressure Sensor B74 Manifold Absolute Pressure Sensor |
| 4: B23E Camshaft Position Sensor - Exhaust B23E Camshaft Position Sensor - Exhaust |
| 5: B75B Mass Air Flow/Intake Air Temperature Sensor B75B Mass Air Flow Intake Air Temperature Sensor |
| 6: B26 Crankshaft Position Sensor B26 Crankshaft Position Sensor |
| 7: B81 Park/Neutral Position Switch (MNG) B81 Park Neutral Position Switch |
| 8: B52B Heated Oxygen Sensor 2 B52B Heated Oxygen Sensor 2 |
| 9: B1 A/C Refrigerant Pressure Sensor (C60) B1 A/C Refrigerant Pressure Sensor |
| 10: Q2 A/C Compressor Clutch (C60) Q2 AC Compressor Clutch |
| 11: B37 Engine Oil Pressure Switch B37 Engine Oil Pressure Switch |
| 12: B52A Heated Oxygen Sensor 1 B52A Heated Oxygen Sensor 1 |
