Installation Procedure

  1. Turn used adjuster bolt CCW counting turns until used pulley bottoms out. Turn new adjuster bolt CCW until new pulley bottoms out. Turn new adjuster bolt CW the same number of turns as counted on old adjuster bolt.

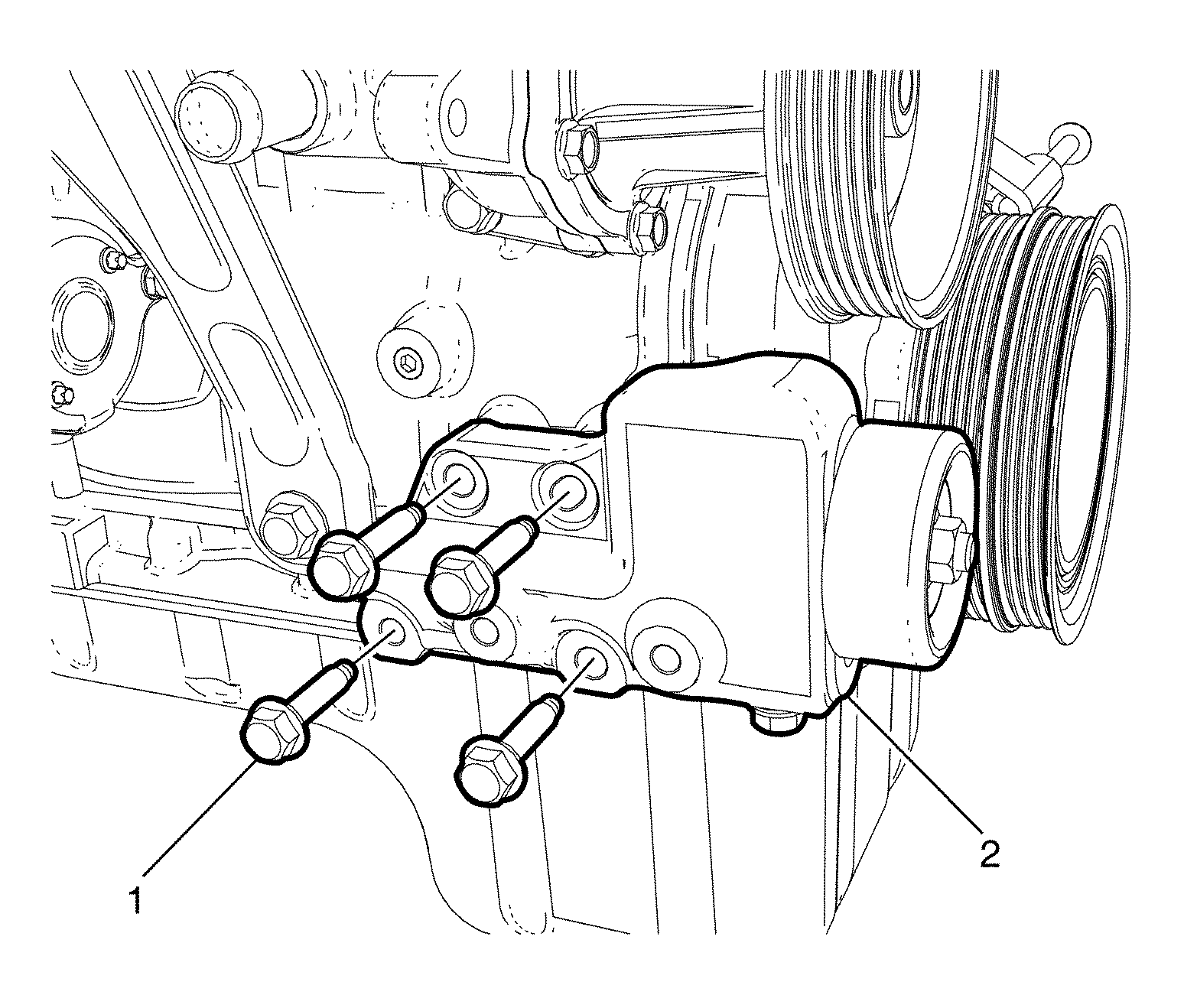

    2. Fig 1: Generator Bracket Retaining Bolts
    GM2756988Courtesy of GENERAL MOTORS COMPANY
  2. Install the generator bracket (2).
    3. CAUTION:

    Refer to Fastener Caution .

  3. Tighten the 4 generator bracket retaining bolts to 22 (16 lb ft).
  4. Install the generator. Refer to Generator Replacement .
