Inflatable Restraint Driver Seat Position Sensor Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

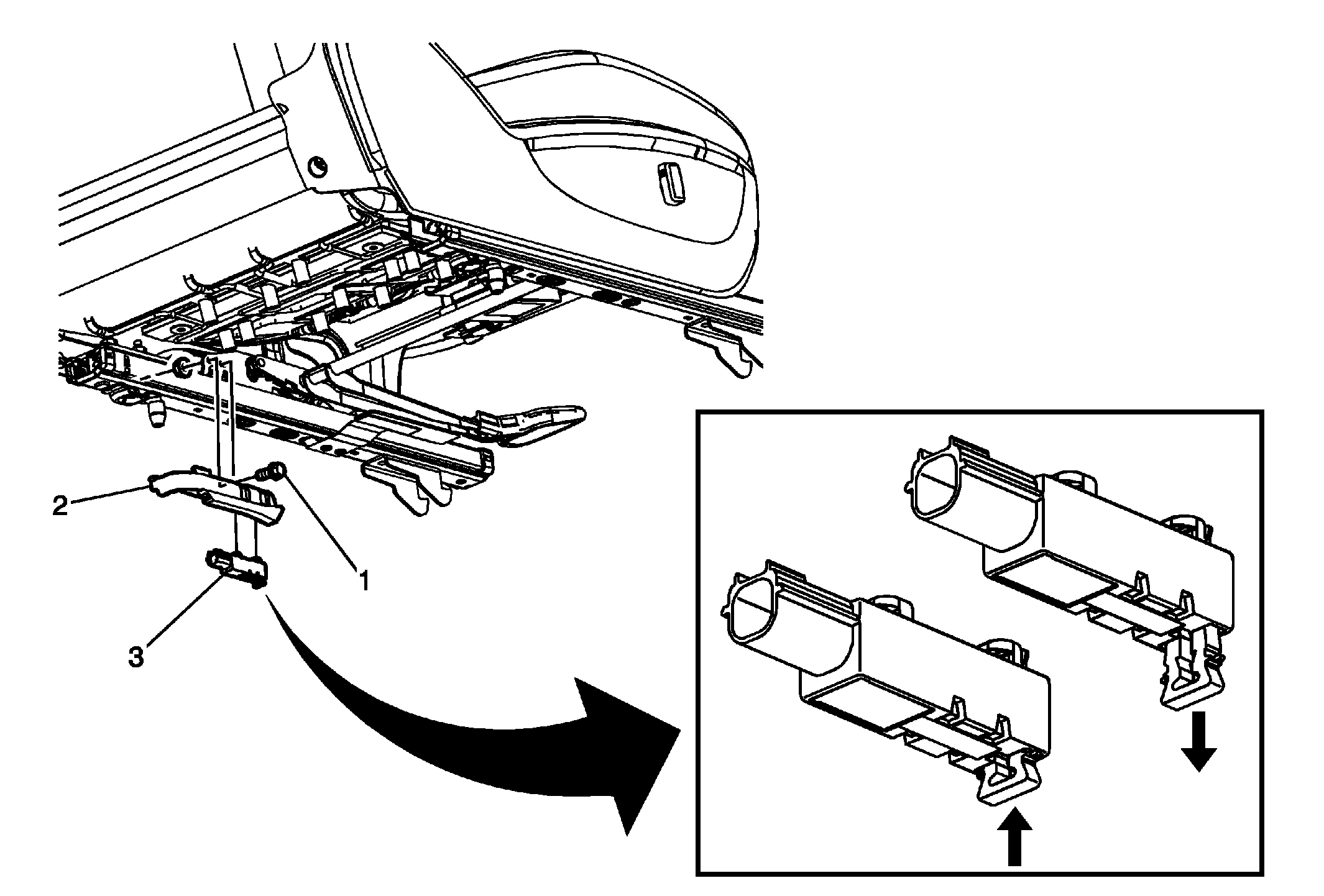

Fig 1: Identifying Inflatable Restraint Driver Or Passenger Seat Position Sensor

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
WARNING: Refer to SIR Warning . Preliminary Procedures Disable the supplemental inflatable restraint (SIR) system. Refer to SIR Disabling and Enabling . Remove the driver or passenger seat. Refer to Driver or Passenger Seat Replacement .
1	Inflatable Restraint Seat Position Sensor Screw CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (25 lb in)
2	Inflatable Restraint Seat Position Sensor Bracket Assembly Procedure: Disconnect the electrical connector.
3	Inflatable Restraint Seat Position Sensor
