Inflatable Restraint Front Passenger Position Sensor Bracket Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

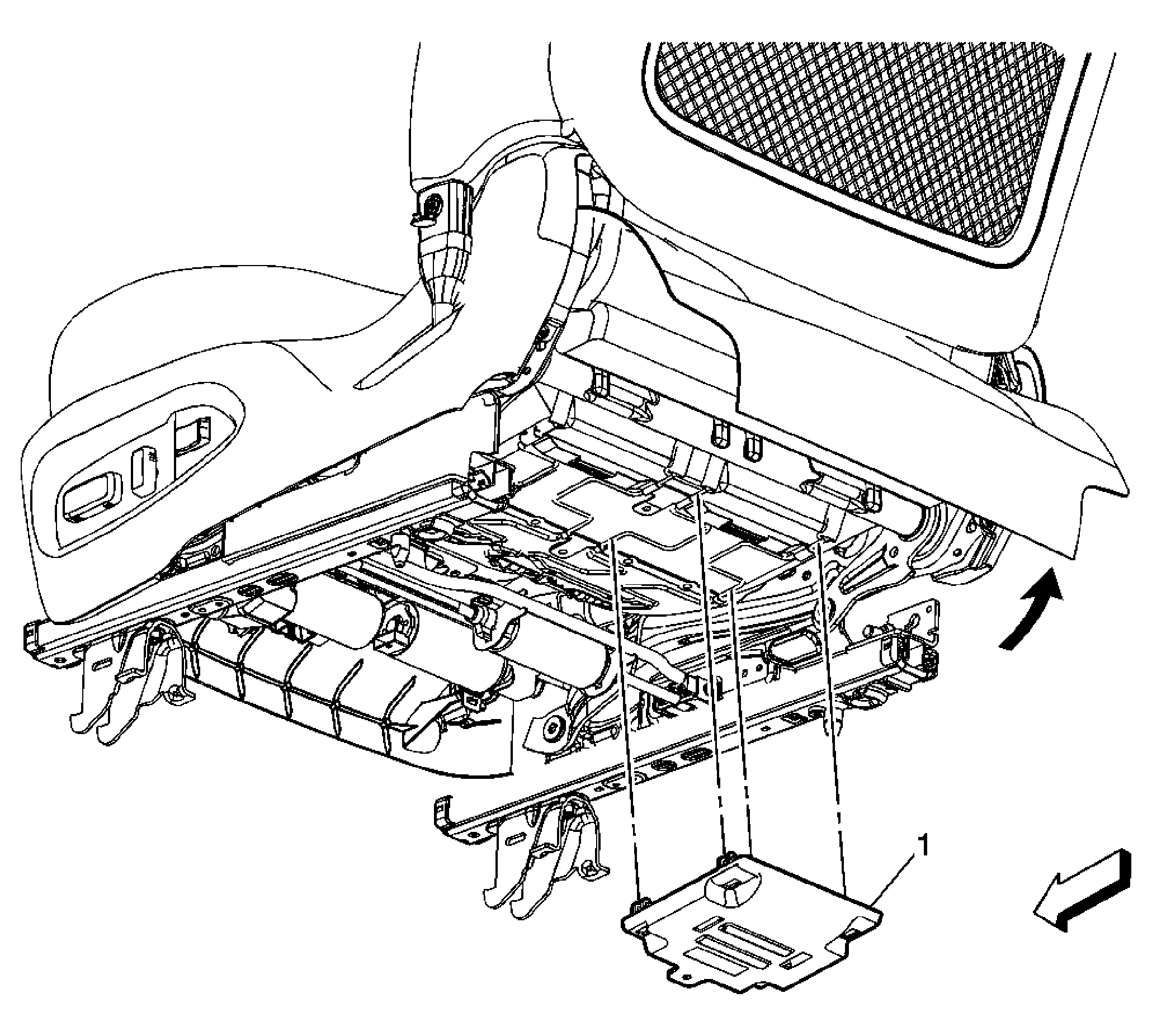

Fig 1: Identifying Front Passenger Position Sensor Bracket

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedure: Remove the front seat. Refer to Driver or Passenger Seat Replacement .
1	Inflatable Restraint Front Passenger Position Sensor Bracket Procedure Detach the seat back cushion cover bottom two bungie clips from the crossbar to gain access to the sensor bracket. Disconnect the electrical connectors, if equipped. Remove the front passenger position sensor bracket from the seat cushion pad support spring wires.

Callout

Component Name

Preliminary Procedure:
Remove the front seat. Refer to Driver or Passenger Seat Replacement .

Inflatable Restraint Front Passenger Position Sensor Bracket

Procedure

Detach the seat back cushion cover bottom two bungie clips from the crossbar to gain access to the sensor bracket.
Disconnect the electrical connectors, if equipped.
Remove the front passenger position sensor bracket from the seat cushion pad support spring wires.
