Steering Wheel Inflatable Restraint Module Coil Replacement

WARNING: This page is about a different car, the 2010 Cadillac SRX. However, it is still accessible from the selected car via links, so may be relevant.

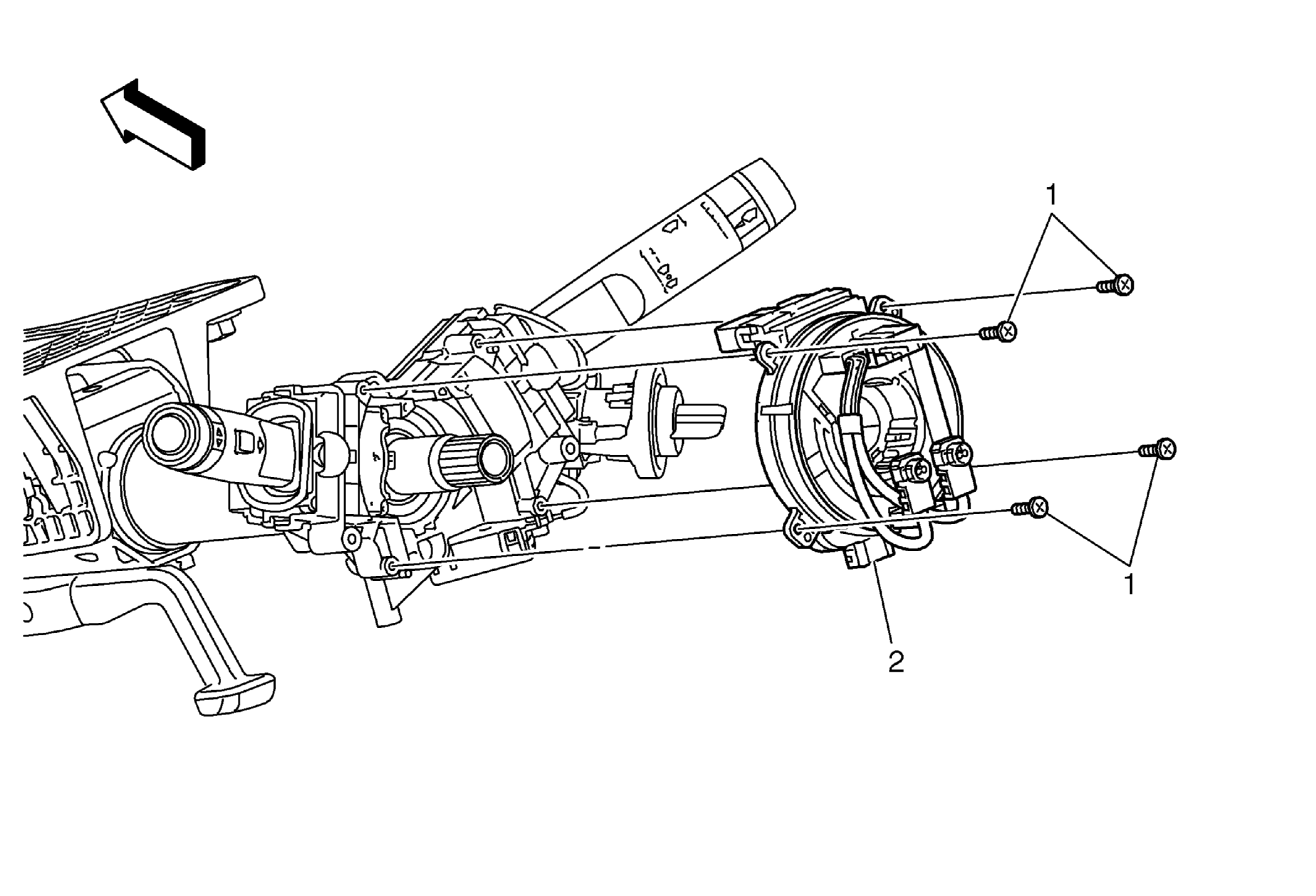

Fig 1: Identifying Steering Wheel Inflatable Restraint Module Coil

Courtesy of GENERAL MOTORS CORP.

Callout	Component Name
Preliminary Procedures Remove the steering wheel. Refer to Steering Wheel Replacement . Remove the steering column shroud. Refer to Steering Column Shroud Replacement .
1	Inflatable Restraint Steering Wheel Module Coil Bolt (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten: 3 N.m (27 lb in)
2	Inflatable Restraint Steering Wheel Module Coil Procedure Disconnect any electrical connectors as necessary. Transfer the steering angle sensor. Refer to Steering Angle Sensor Replacement . Ensure the coil is centered during installation. If you are installing a NEW coil, remove the centering tab AFTER the coil is on the steering column. Refer to Inflatable Restraint Steering Wheel Module Coil Centering .

Callout

Component Name

Preliminary Procedures

Remove the steering wheel. Refer to Steering Wheel Replacement .
Remove the steering column shroud. Refer to Steering Column Shroud Replacement .

Inflatable Restraint Steering Wheel Module Coil Bolt (Qty: 4)

CAUTION: Refer to Fastener Caution .

Tighten: 3 N.m (27 lb in)

Inflatable Restraint Steering Wheel Module Coil

Procedure

Disconnect any electrical connectors as necessary.
Transfer the steering angle sensor. Refer to Steering Angle Sensor Replacement .
Ensure the coil is centered during installation. If you are installing a NEW coil, remove the centering tab AFTER the coil is on the steering column. Refer to Inflatable Restraint Steering Wheel Module Coil Centering .
