Trax LS, Automatic Trans
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Drivers Assistance Systems - ADAS
>>
Object Detection System And Pedestrian Protection System
>>
Schematic and Routing Diagrams
>>
Object Detection Schematics
>>
Lane Departure Warning (UFL)
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
Lane Departure Warning (UFL)

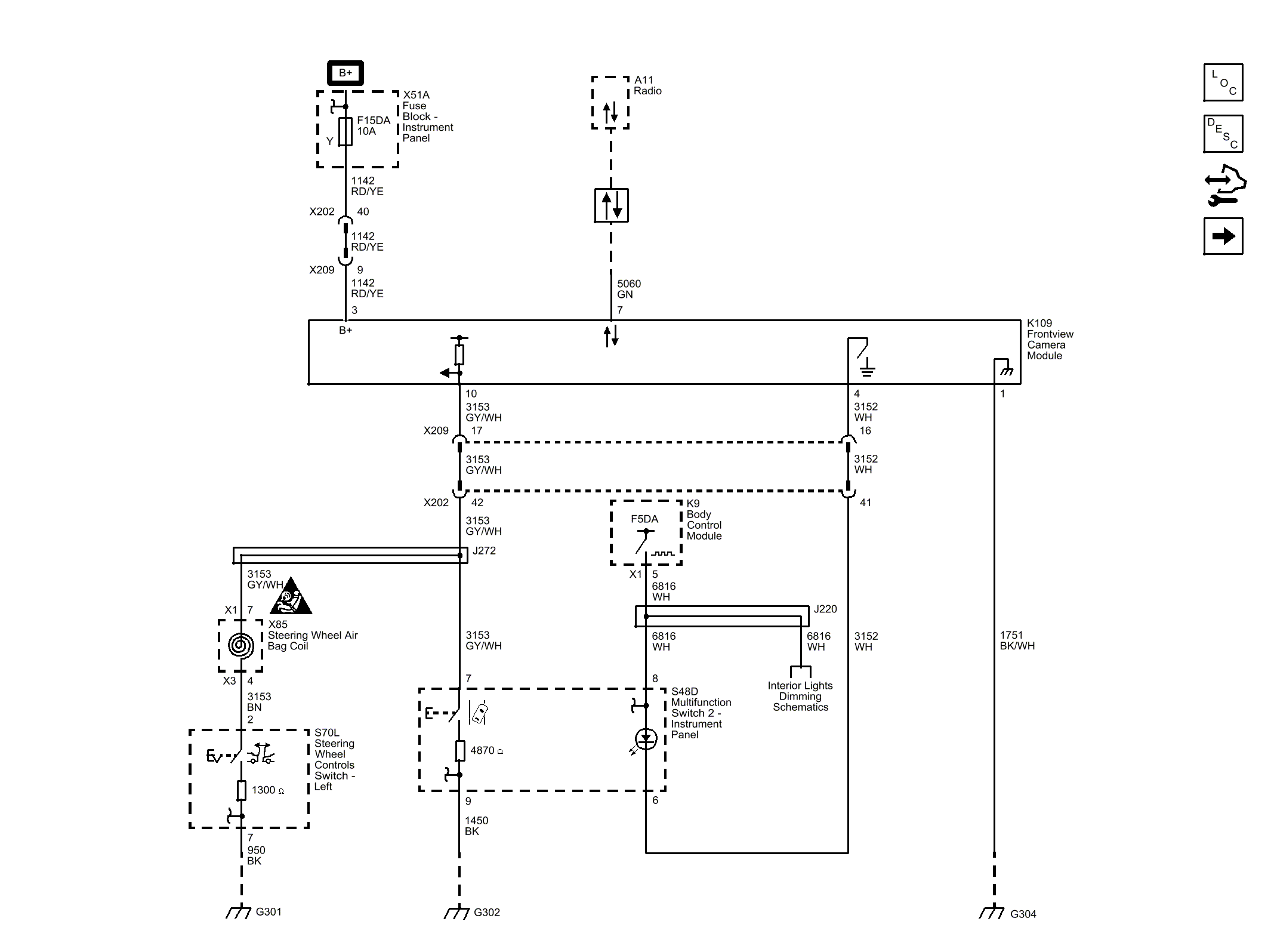

Fig 1: Lane Departure Warning (UFL) Wiring Schematic
Courtesy of GENERAL MOTORS COMPANY
Courtesy of GENERAL MOTORS COMPANY
