Engine Coolant Temperature Sensor Replacement (Radiator)

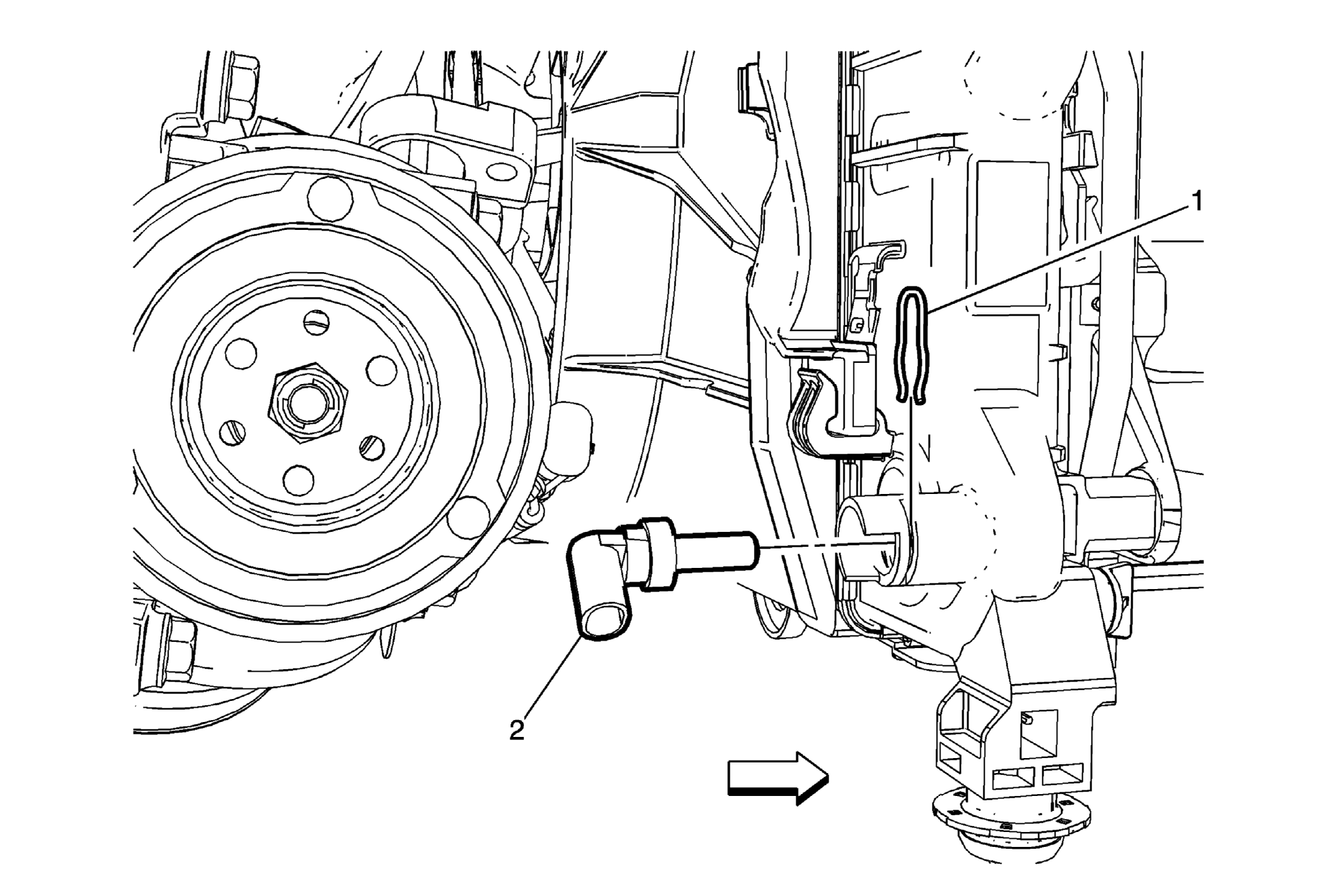

Fig 1: Engine Coolant Temperature Sensor - Radiator

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedures Drain the cooling system. Refer to Cooling System Draining and Filling . Remove the front bumper fascia opening lower cover.
1	Engine Coolant Temperature Sensor Retainer
2	Engine Coolant Temperature Sensor Procedure Disconnect the engine coolant temperature sensor electrical connector.

Callout

Component Name

Preliminary Procedures

Engine Coolant Temperature Sensor Retainer

Engine Coolant Temperature Sensor
Procedure
Disconnect the engine coolant temperature sensor electrical connector.
