Installation Procedure
WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

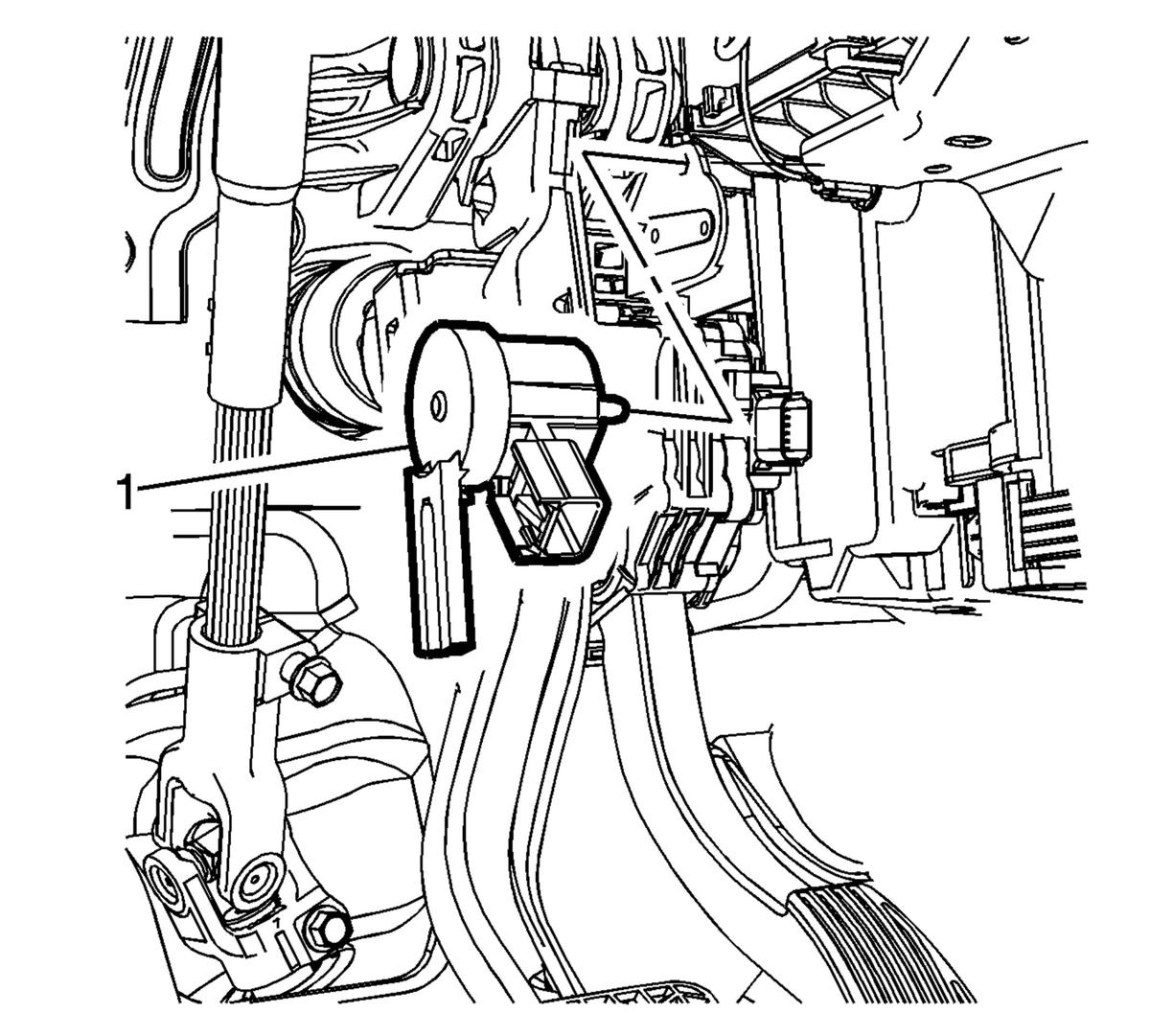

- Install the brake pedal position sensor (1).

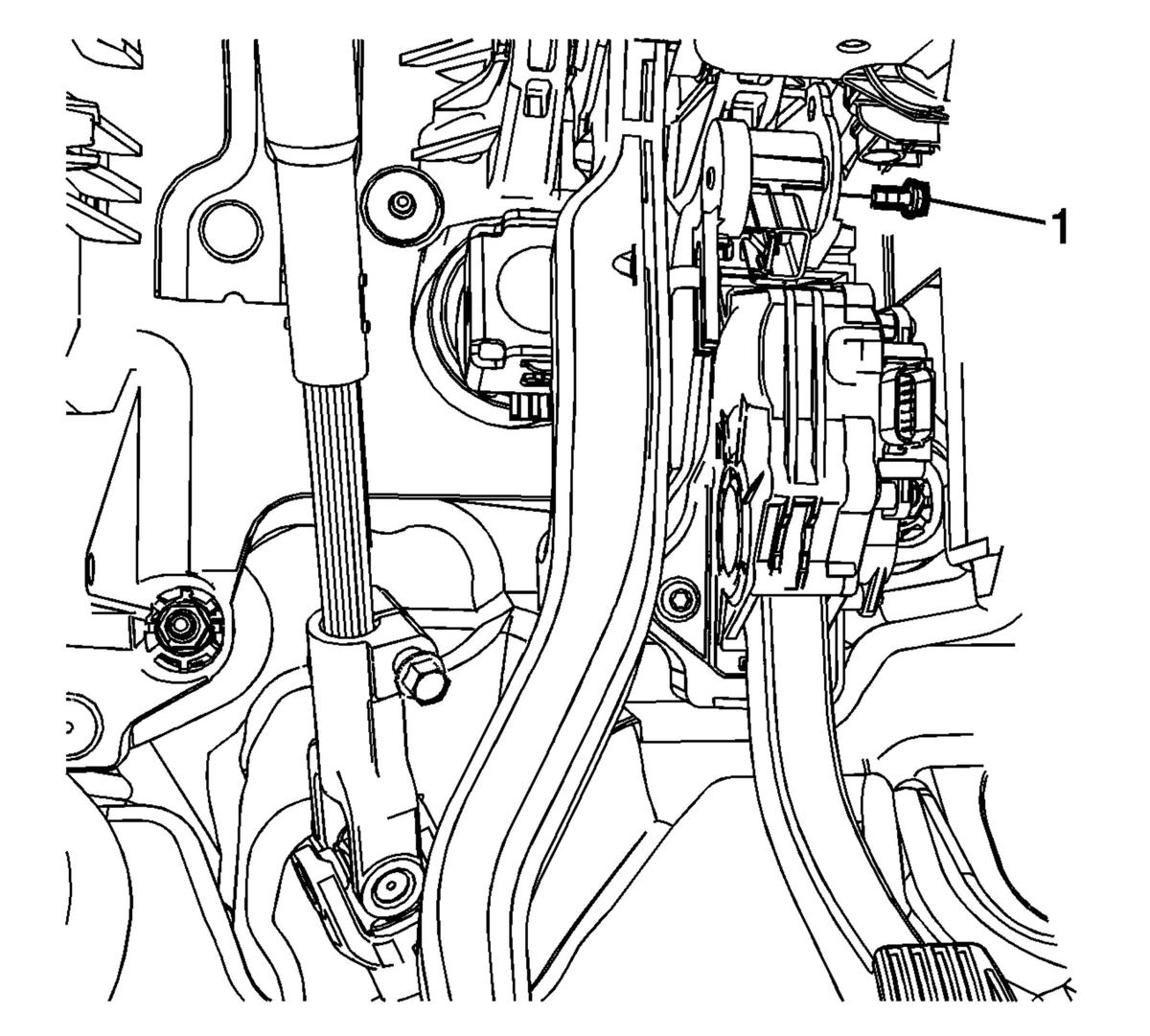

- Install the brake pedal position sensor bolt (1) and tighten to 3 N.m (27 lb in).
- Install the left side front floor air outlet duct. Refer to Floor Front Air Outlet Duct Replacement - Left Side (Encore)Floor Front Air Outlet Duct Replacement - Left Side (Trax) .
- Connect the brake pedal position sensor electrical connector.
- Calibrate the brake pedal position sensor. Refer to Brake Pedal Position Sensor Calibration .
NOTE:
Ensure the fork of the brake pedal position sensor is positioned over the brake pedal post.
CAUTION:
Refer to Fastener Caution .
