Radio Control Assembly Replacement (Encore)

WARNING: This page is about a different car, the 2016 Chevrolet Trax and 2016 Buick Encore. However, it is still accessible from the selected car via links, so may be relevant.

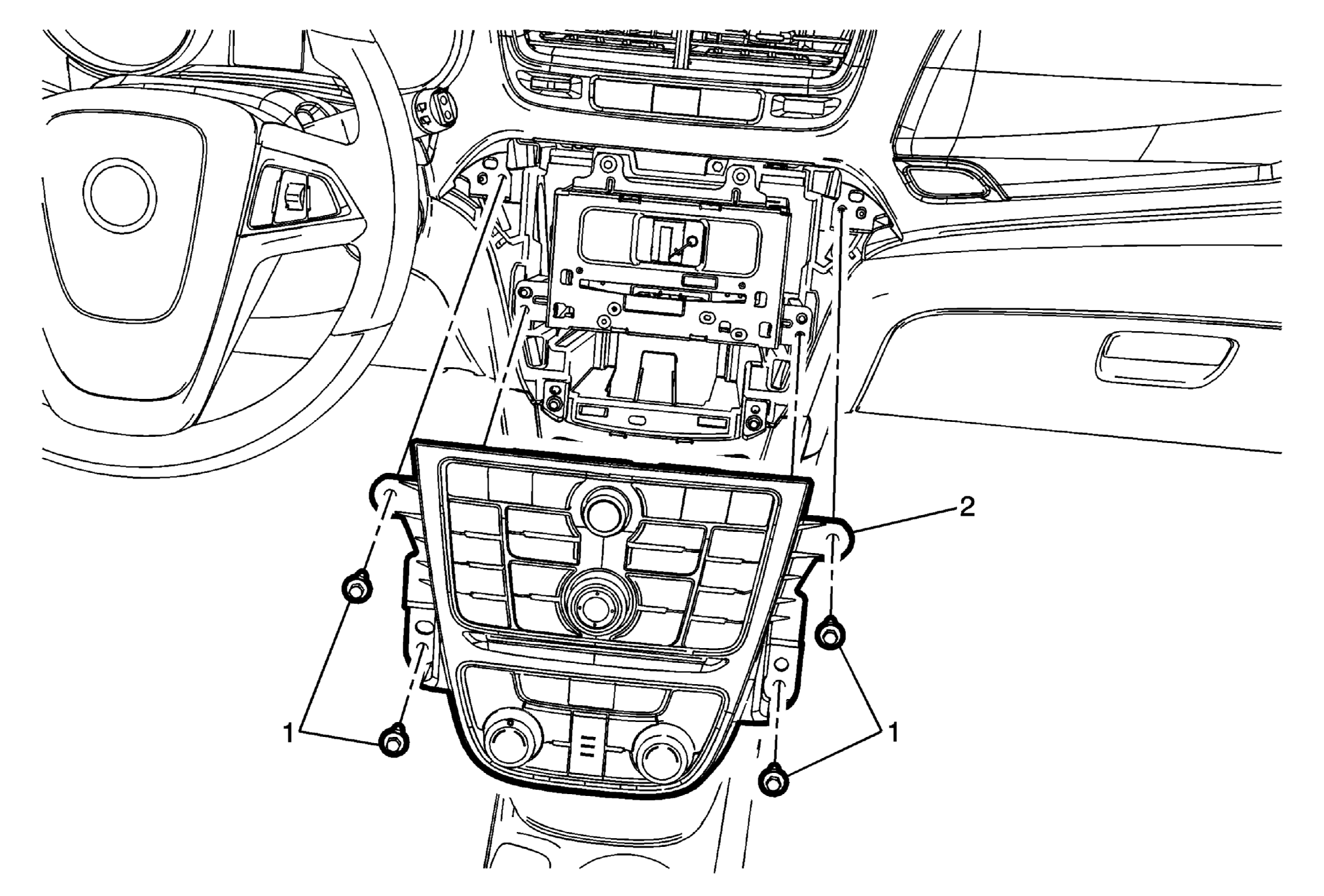

Fig 1: Radio Control Assembly (Encore)

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement (Encore) .
1	Radio Control Fasteners (Qty: 4) CAUTION: Refer to Fastener Caution . Tighten 2.5 N.m (22 lb in)
2	Radio Control Assembly Procedure Disconnect the electrical connections. When replacing the radio control assembly, transfer all necessary components. Refer to Control Module References for programming and setup information.

Callout

Component Name

Preliminary Procedure
Remove the instrument panel trim plate. Refer to Instrument Panel Trim Plate Replacement (Encore) .

Radio Control Fasteners (Qty: 4)

CAUTION:

Refer to Fastener Caution .

Tighten
2.5 N.m (22 lb in)

Radio Control Assembly

Procedure

Disconnect the electrical connections.
When replacing the radio control assembly, transfer all necessary components.
Refer to Control Module References for programming and setup information.
