Refuel Request Switch

Door Component Views

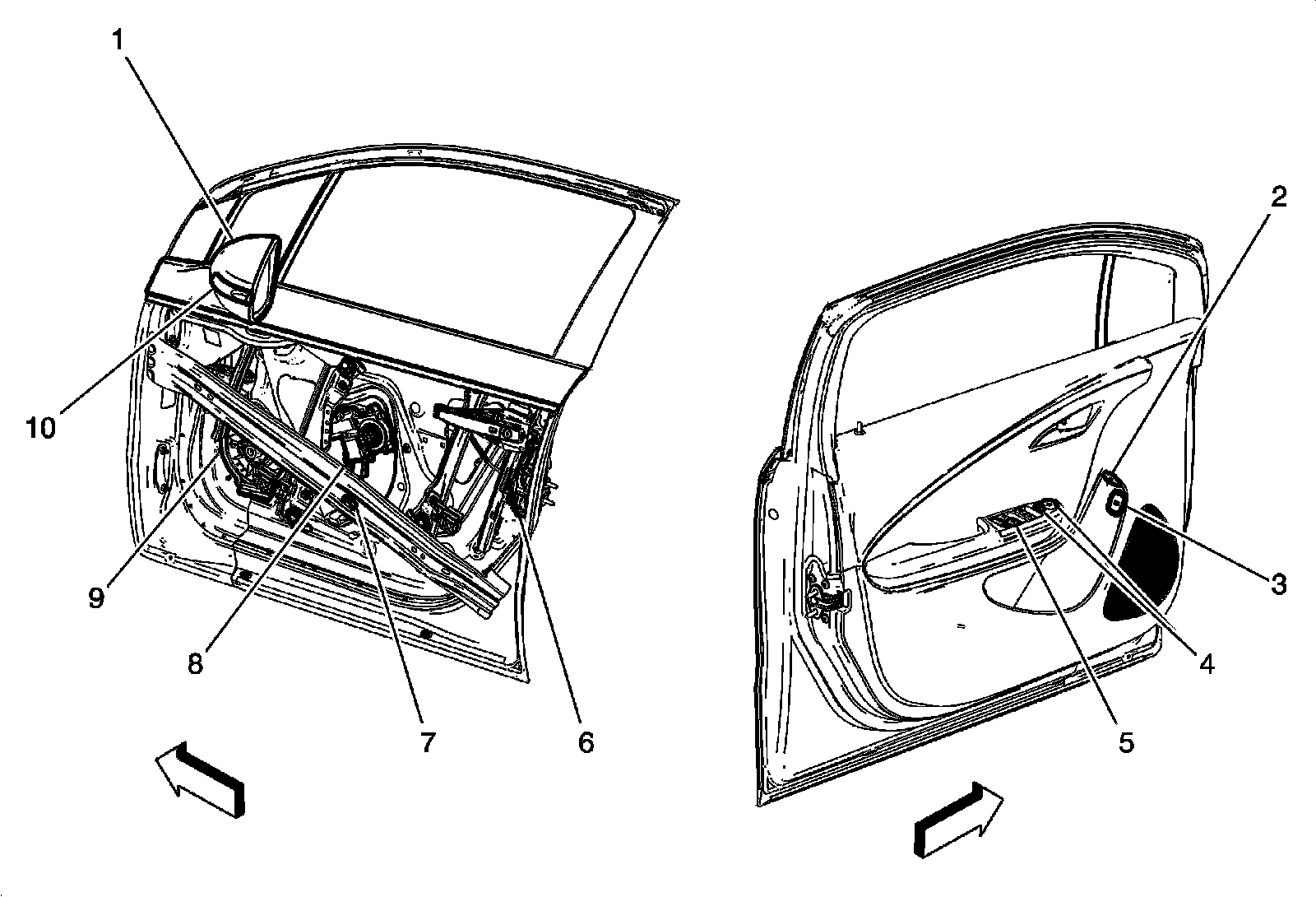

Driver Door Components





1 - A9A Outside Rearview Mirror - Driver

2 - S117 Refuel Request Switch

3 - S113 Charge Port Door Open Request Switch

4 - S52 Outside Rearview Mirror Switch

5 - S79D Window Switch - Driver

6 - A23D Door Latch Assembly - Driver

7 - B63LF Side Impact Sensor - Left Front

8 - M74D Window Motor - Driver

9 - P19AG Speaker - Left Front Door

10 - E4Y Turn Signal Repeater Lamp - Left
