Hybrid/EV Battery Module 7

Wheels/Vehicle Underbody Component Views

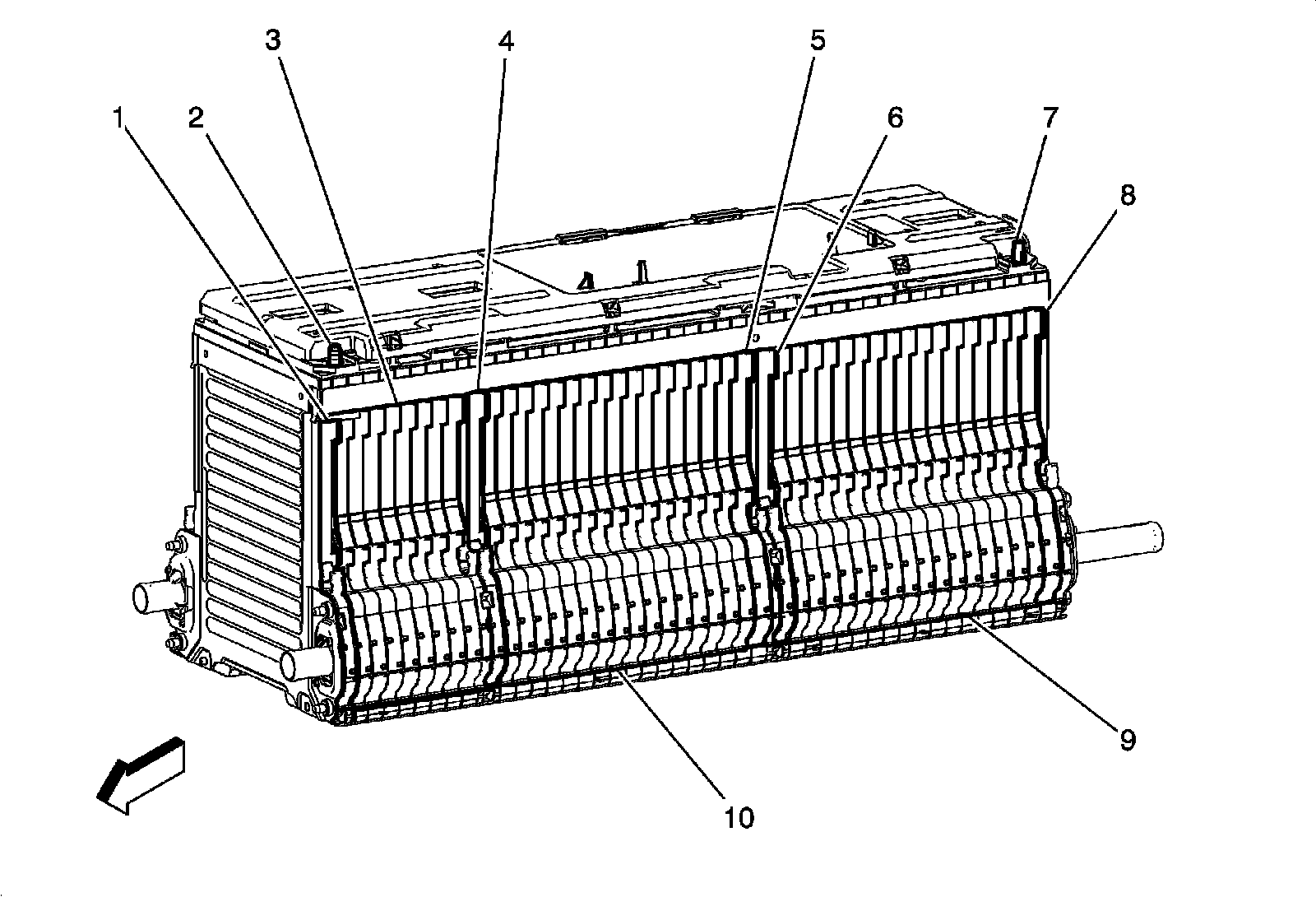

Underbody - Hybrid/EV Battery Pack Section 1





1 - B32R Hybrid/EV Battery Pack Temperature Sensor 16

2 - C5J Hybrid/EV Battery Module 9 BUS BAR Stud

3 - C5J Hybrid/EV Battery Module 9

4 - B32Q Hybrid/EV Battery Pack Temperature Sensor 15

5 - B32P Hybrid/EV Battery Pack Temperature Sensor 14

6 - B32N Hybrid/EV Battery Pack Temperature Sensor 13

7 - C5G Hybrid/EV Battery Module 7 BUS BAR Stud

8 - B32M Hybrid/EV Battery Pack Temperature Sensor 12

9 - C5G Hybrid/EV Battery Module 7

10 - C5H Hybrid/EV Battery Module 8
